12.3 inch LCD Panel for Automotive 720x1920, Brightness 1000 nits

UGS : DS20290
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~75℃

Luminosité (cd/m²) :

1000

Prise en charge de l'écran tactile :

Type d'affichage :

12.3 inch LCD Panel, 720x1920, MIPI interface, -20~75℃,1000nit Brightness, In house design and develop, with high cost-effective performance, Industrial and automotive grade.

Demande de tarification au volume







    Description

    12.3 inch LCD Panel: Exclusive Self-Developed Solution

    Engineered with proprietary R&D, this 12.3-inch display features:
    ✅ Custom Backlight Module (private mold design) for uniform 1000-nit brightness—an exclusive resource in our portfolio
    ✅ Industrial-Grade Performance certified for automotive, industrial control, and medical applications
    ✅ Wide-Temperature Stability (-30℃~85℃) and anti-vibration design for harsh environments
    Exclusive Offer:
    Direct from the developer—competitive pricing with 24/7 technical support. Contact us to schedule a demo for your high-end project.
    Below the basic parameters for it, Tailor the interface (LVDS/RGB), brightness, dimensions, and touch solutions (capacitive/resistive) to seamlessly integrate into your device—engineered for hassle-free system integration.

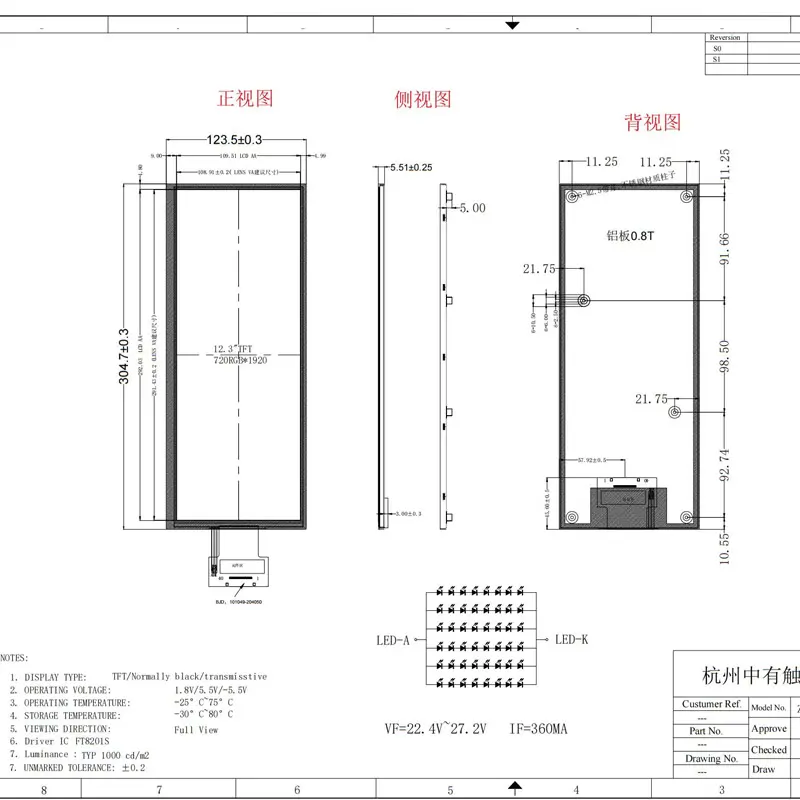

    12.3" TFT Display Specifications

    Numéro de modèle ZC-123001-1001
    Taille 12.3
    Résolution 720*1920
    Dimension de l'ébauche 123.5*304.7*5.51
    Zone active 109.51*292.03
    Luminosité (cd/m²) 1000
    Interface MIPI
    Voir la direction ALL
    Température de fonctionnement -25~75
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile No
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    12.3" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    12.3-Inch 720 × 1920 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 1000 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 12.3-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 720 × 1920 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~75℃

    Luminosité (cd/m²) :

    1000

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
