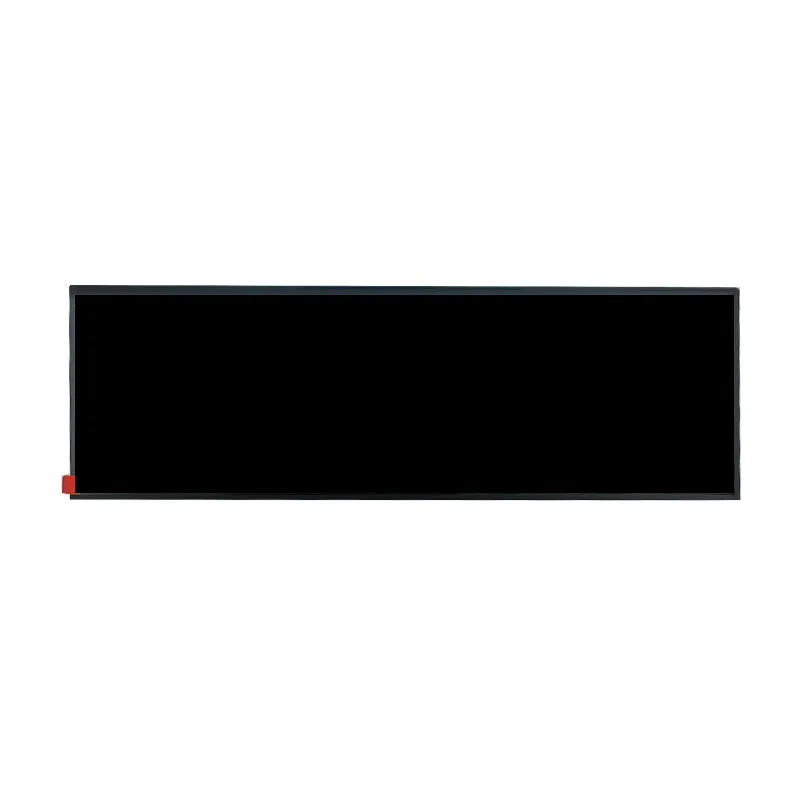

14.5 inch Stretched LCD Display High Resolution 2560*720

UGS : DS20145
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

14.5 inch Stretched LCD Display, offering resolution 2560*720, AA size 354.816x99.792mm, with capacitive touch, Brightness 350cd/m²,wide temperature -20~70℃

Demande de tarification au volume







    Description

    14.5" Bar LCD Display General Desription

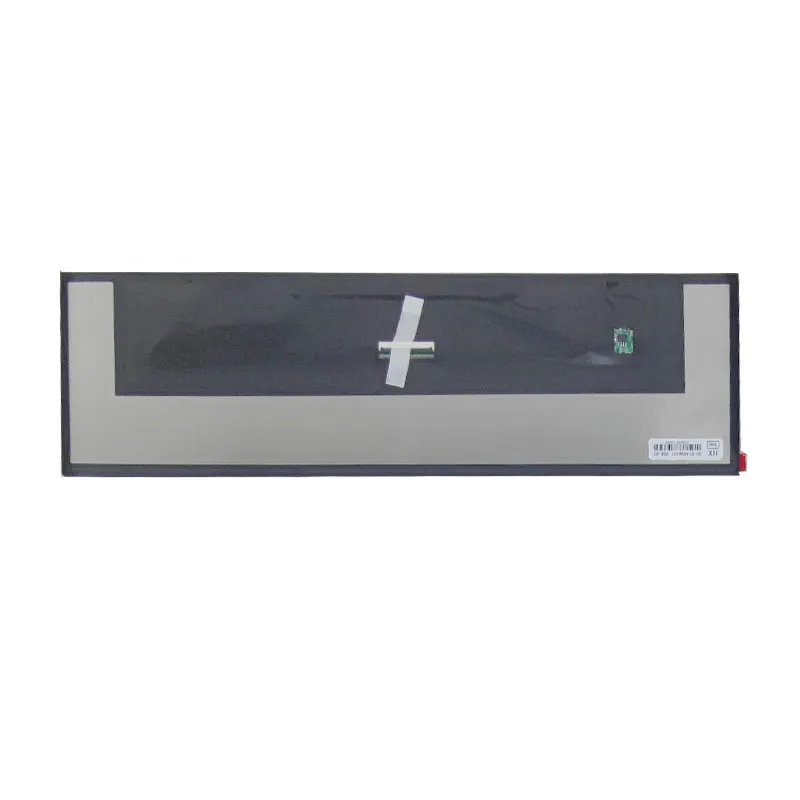

    This 14.5 inch Stretched LCD Display is a LTPS & transmissive type Thin Film Transistor Liquid crystal Display
    (TFT-LCD) with iTP (in cell Touch panel) technology. This model is composed of a TFT-LCD,
    a driver, FPC (flexible printed circuit) and PCB (Printed Circuit Board), and a backlight unit
    with a capacitive touch sensor. TCON (timing controller) is also embedded in source driver



    14.5" Bar LCD Display Features

    14.5-inch (32:9) display

    2560 RGB x 720 resolution in RGB stripe arrangement

    Interfaces: LVDS INPUT(2 PORTS)

    Advanced Hyper View Angle – Normal Black wide view technology

    RoHs compliance

    14.5" Bar LCD Display Product Specifications

    Taille de la diagonale 14.5"(Diagonal)
    Nombre de pixels 2560*720 Pixels
    Luminance 350
    Module Size 364×113×3.0
    Zone active 354.816x99.792
    Direction de visualisation ALL
    View Angle(U/D/R/L) 89/89/89/89
    Interface LVDS
    Rapport de contraste 1000
    Température de fonctionnement -40~85℃
    Température de stockage -40~95℃
    - -
    - -
    - -
    - -

    14.5" Bar LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    14.5-Inch 2560 × 720 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 14.5-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 2560 × 720 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
