1920*720 10.25 inch LCD Display Screen LVDS IPS

UGS : DS20088
Taille :

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Luminosité (cd/m²) :

750

Prise en charge de l'écran tactile :

Type d'affichage :

10.25 inch tft touch display  1920*720 Pixels  Serial LVDS Interface  Without touch screen  Automotive display technology

Demande de tarification au volume







    Description

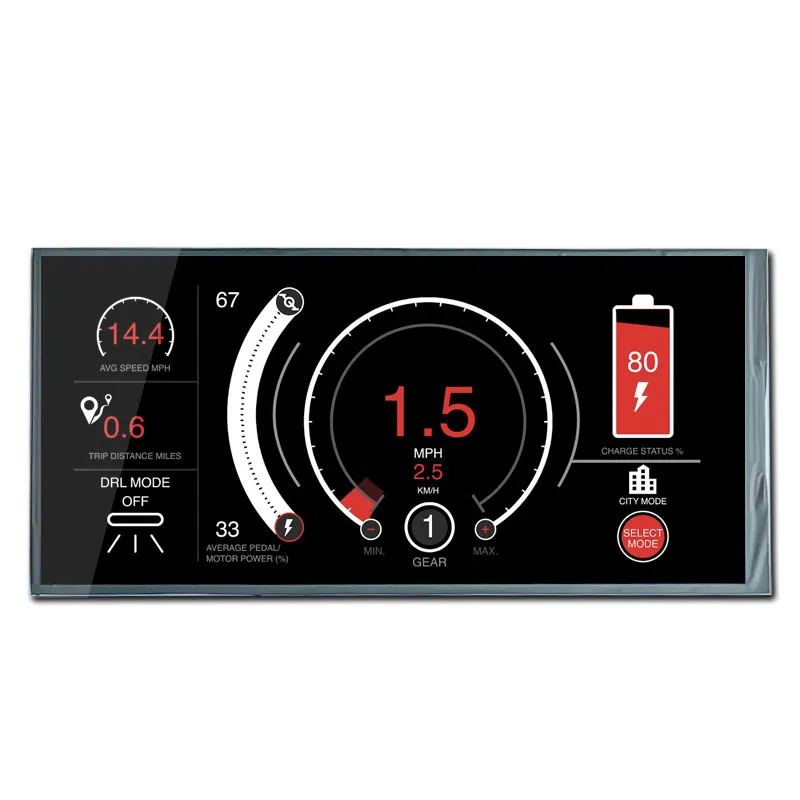

    10.25 inch LCD Display Screen Features

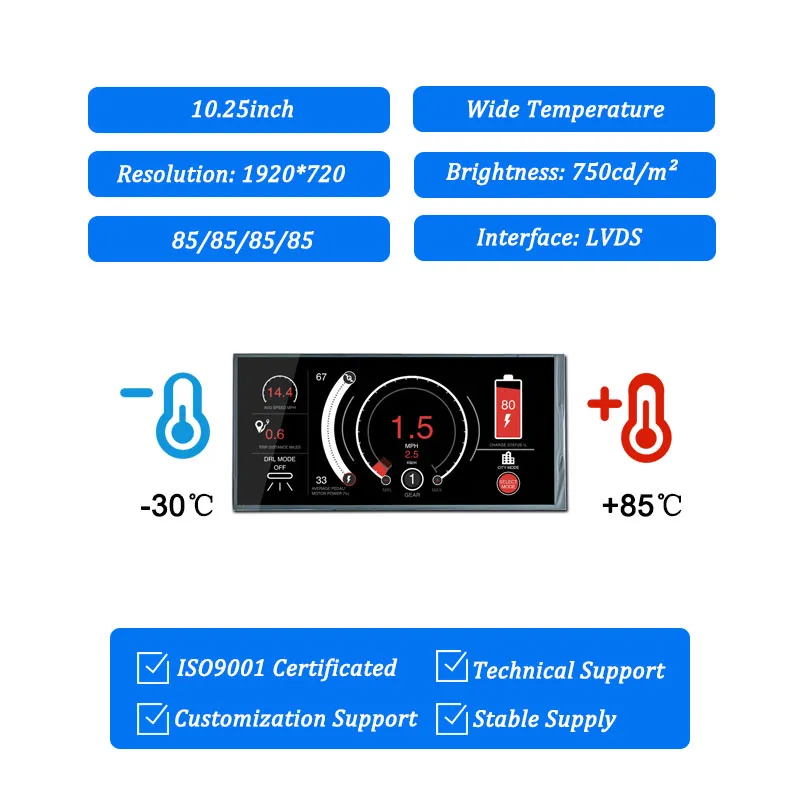

    The 10.25-inch TFT-LCD display module features a resolution of 1920x720 pixels, With a wide viewing angle of 85°, a brightness level of 750 cd/m², and a contrast ratio of 1200, and the module operates efficiently, within a temperature range of -30°C to 85°C, with storage capabilities up to -40°C to 90°C, making it ideal for applications in consumer electronics, automotive displays, and industrial settings.



    10.25 inch LCD Display Screen with Wide Temperature

    The 10.25-inch TFT-LCD display module operates effectively, across a wide temperature range of -30°C to 85°C, this wide temperature tolerance guarantees consistent performance, maintaining brightness and color accuracy across different conditions. It can function efficiently in cold environments, making it ideal for outdoor settings and industries like transportation and refrigeration.

    10.25" TFT-LCD Product Specifications

    Numéro de modèle  90-10303-HH1
    Taille 10.25
    Résolution 1920*720
    Dimension de l'ébauche 225.6*105.82*1.254
    Zone active 243.84*91.44
    Luminosité (cd/m²) 750
    Interface LVDS
    Voir la direction ALL
    Température de fonctionnement -30~85
    Température de stockage -40~90
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1200:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    10.25" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    10.25-Inch 1920 × 720 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 10.25-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 1920 × 720 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 750 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~ 85℃

    Luminosité (cd/m²) :

    750

    Prise en charge de l'écran tactile :

    Type d'affichage :
