23.8" 5-Point Custom Capacitive Touch Panel - USB Interface mxT2952TD IC 6mm Glass

UGS : DS40052
Taille :

Interface :

Thickness

6 mm

Structure

G+G

Touch IC

puce électronique

abc

Custom Capacitive Touch Panel, 5-Finger Fluency, Zero Compromise – Scratch-Resistant 6mm Glass for Demanding Environments

Demande de tarification au volume







    Description

    23.8" 5-Point Custom Capacitive Touch Panel:



    Introducing our high-performance 23.8-inch Custom Capacitive Touch Panel, engineered for precision and durability in demanding environments. Featuring 5-point multi-touch responsiveness, this panel delivers seamless interaction for industrial, commercial, and interactive display applications.
    Advanced Features:
    ✓ IP65-rated front panel (optional) for dust/water resistance.
    ✓ Supports gloved or bare-hand operation.
    ✓ Certified with CE/FCC/RoHS standards
    ✓ Frame modifications (VESA mount, flush/bezel mounting)

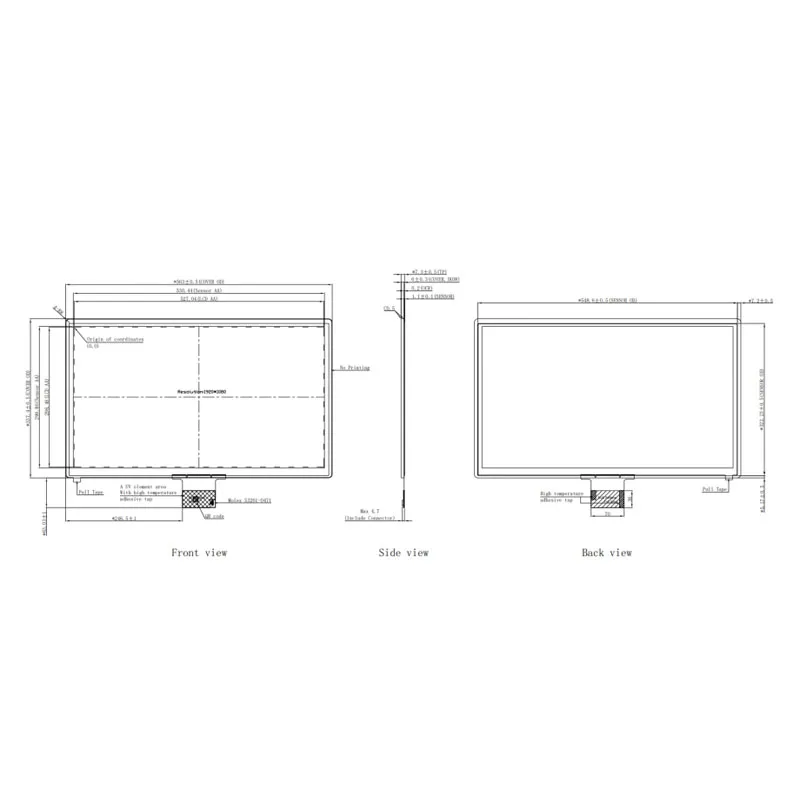

    23.8" Custom Capacitive Touch Panel
    Construction Cover Glass Thickness: 6 mm±0.05mm
    OCR Thickness: 0.2mm ± 0.05mm
    ITO Glass Double side ITO glass: Thickness: 1.1mm ± 0.05mm
    Machanical Characteristics Touch size 23,8 pouces
    Outer Dimension 563*337.4
    View Area 530.44*299.86
    Sensor Area 548.6*332.23
    Cover Thickness 6
    Number of Touch 5
    Interface USB
    Controller Microchip

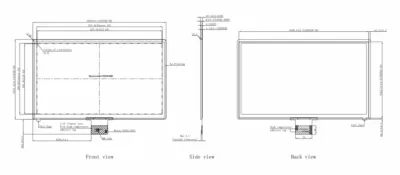

    5 point capacitive touch

    Télécharger

    23.8-Inch Touch Panel FAQ

    Will this touch panel align with the visible area and opening of my display?

    Use the 23.8-inch diagonal to shortlist touch overlays, then check the exact drawing for fit. Superimpose the touch active area, glass outline and cable exit on the display and bezel drawings. Check cover thickness, edge overlap and clearance at the flex tail.

    Can my current host read touch input from this panel?

    For the listed USB interface, verify the port’s role, driver support and power needs on the exact configuration. Send us the host and OS version and verify the exact touch controller and driver. Test coordinate mapping, orientation and resume after power loss.

    Should I use a touch overlay or a display with integrated touch?

    Compare the added glass thickness, reflections, attachment process and space for a separate touch cable. If gloves, moisture or precise edge input matter, compare both options in the finished front assembly.

    Can I customize the cover, flex cable, or touch settings for gloves and water?

    Send the active area, cover outline and thickness, flex exit and touch interface. We can review the glass and sensor stack, then agree glove and moisture conditions to try on a sample.

    Custom Touch Screen Solutions

    How much does a custom touch sample cost and how long does it take?

    Include drawings for the existing LCD, cover and flex, controller interface, quantities and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Interface :

    Thickness

    6 mm

    Structure

    G+G

    Touch IC

    puce électronique

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
