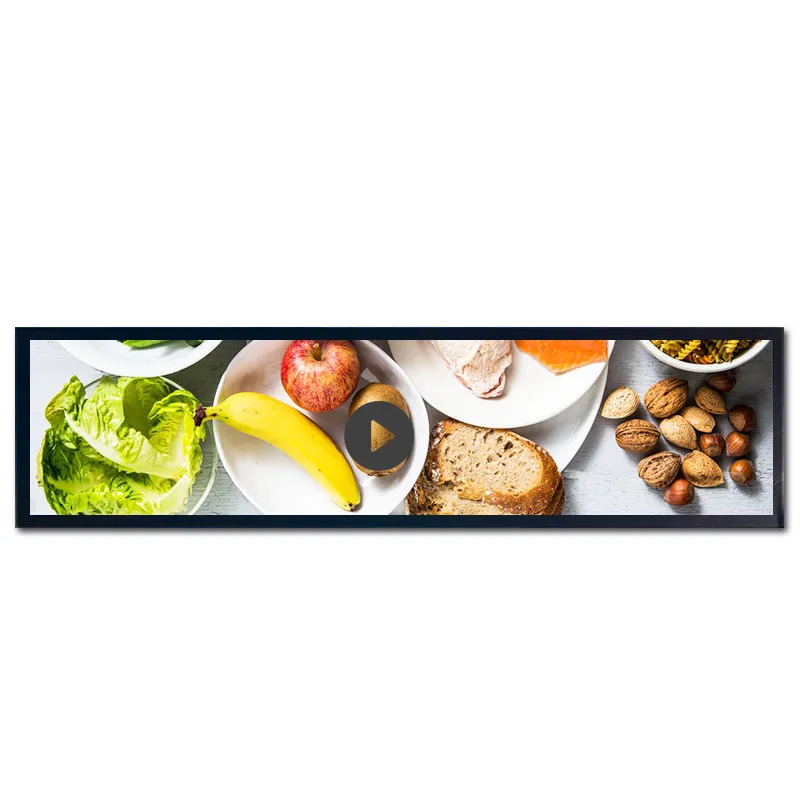

28 inch LVDS Bar Type Stretched TFT LCD

UGS : DS20155
Taille :

Résolution :

Interface :

Température de fonctionnement :

-0℃~50℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

28 inch Stretched TFT LCD Resolution 1920*360 IPS technology Anti-glare treatment and 3H surface hardness for durability LVDS Interface 50K hours Long life

Demande de tarification au volume







    Description

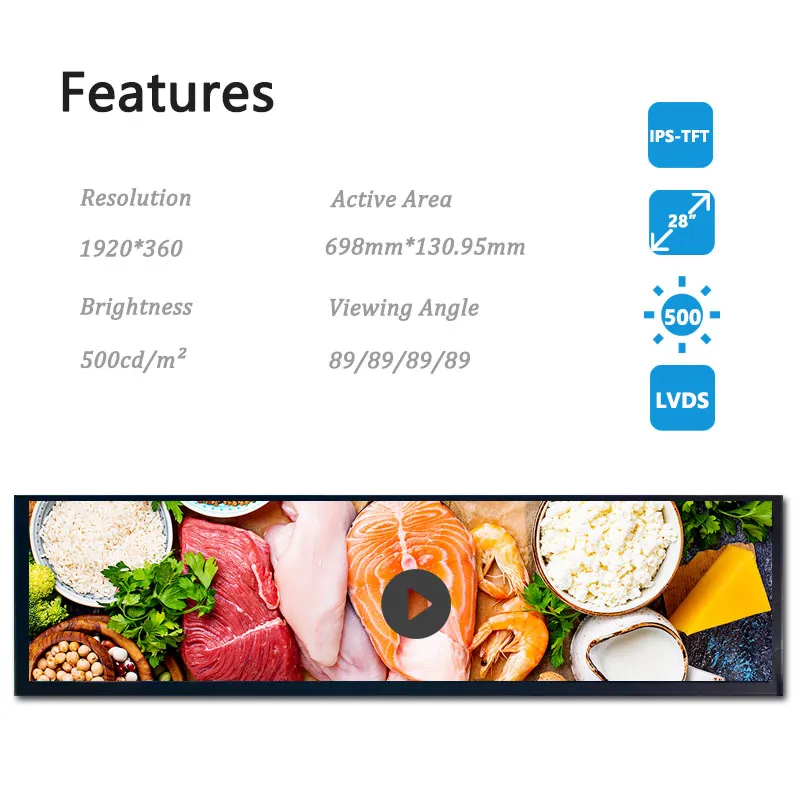

    28" Bar LCD Display Features

    The 28 inch Stretched TFT LCD features a high-resolution display of 1920 x 360 pixels and an impressive brightness of 500 Cd/m², making it ideal for applications requiring excellent visibility. Utilizing IPS (In-Plane Switching) technology, it offers wide viewing angles of 89° in all directions. The display is enhanced with an anti-glare treatment and a 3H surface hardness for added durability. With a backlight power consumption of 400 mA at 55-65V and an LCD glass power consumption of 12V, this product is well-suited for various applications that demand high-quality visuals and robust performance.

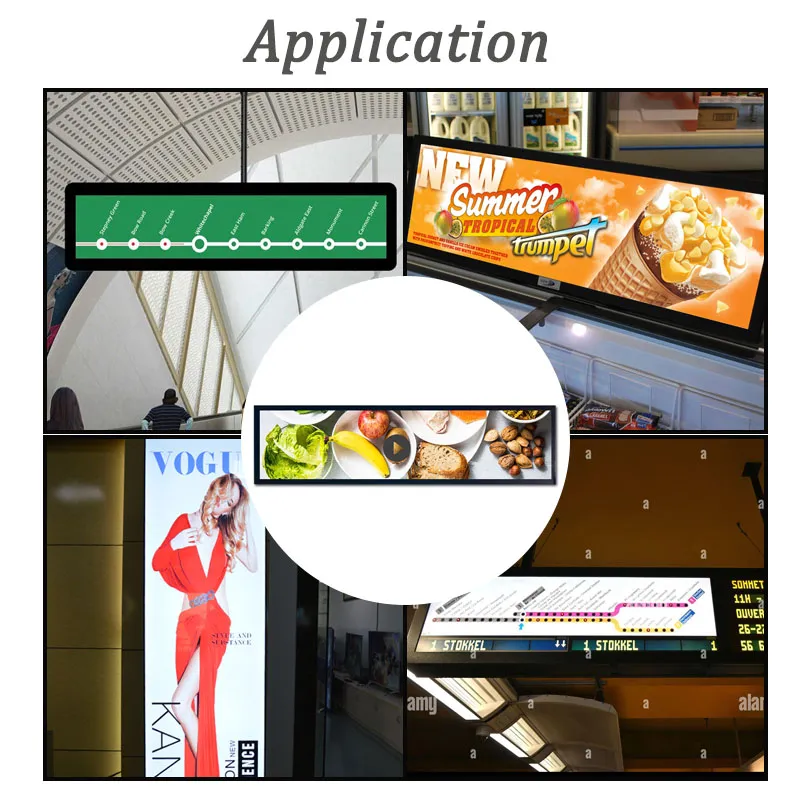

    28" Bar LCD Display Application

    The 28 inch Stretched TFT LCD is versatile and can be applied in numerous fields, including digital signage, where its high brightness and wide viewing angles make it ideal for retail and advertising displays. In medical imaging, its high resolution and IPS technology ensure accurate color representation, suitable for radiology and pathology applications. The display's durability and glare resistance make it perfect for industrial control panels, allowing operators to monitor systems in various environments. Additionally, its fast response time and high refresh rate enhance the experience for gaming monitors, while its color accuracy and wide viewing angles cater to professional video editing needs. These examples highlight the display's potential applications, which may vary based on specific customer or industry requirements.

    28" Bar LCD Display Product Specifications

    Taille de la diagonale 28"(Diagonal)
    Nombre de pixels 1920*360 Pixels
    Luminance 500

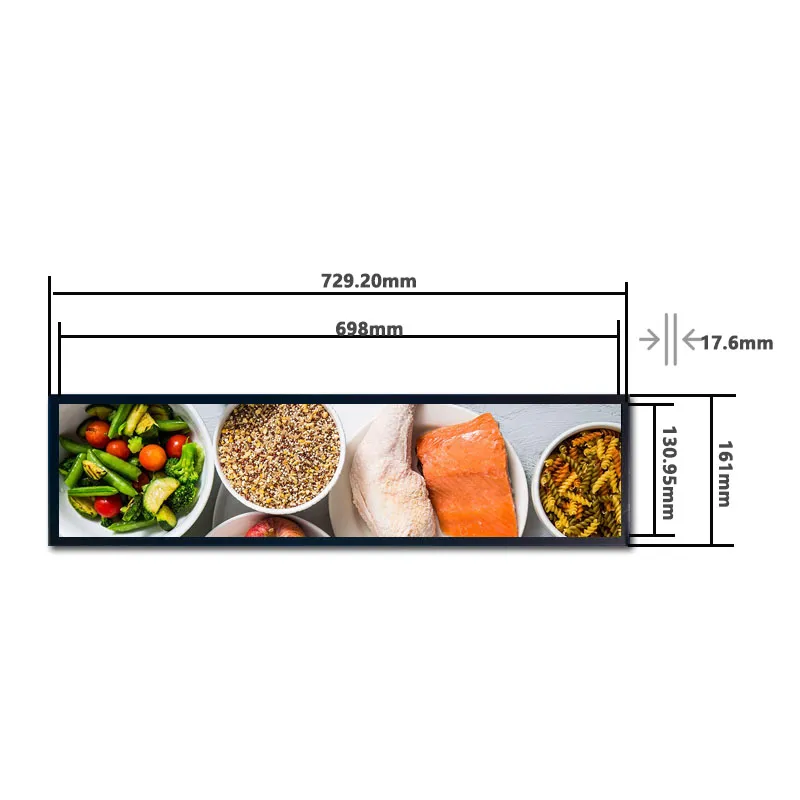

    Module Size 729.2*161*17.6
    Zone active 698*130.95
    Direction de visualisation ALL
    View Angle(U/D/R/L) 89/89/89/89
    Treatment Anti-glare
    Surface Hardness 3H
    Life Span 50k
    Interface LVDS
    Température de fonctionnement 0~+50℃
    Température de stockage -20~+60℃
    - -
    - -

    28" Bar LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    28-Inch 1920 × 360 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 28-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 1920 × 360 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

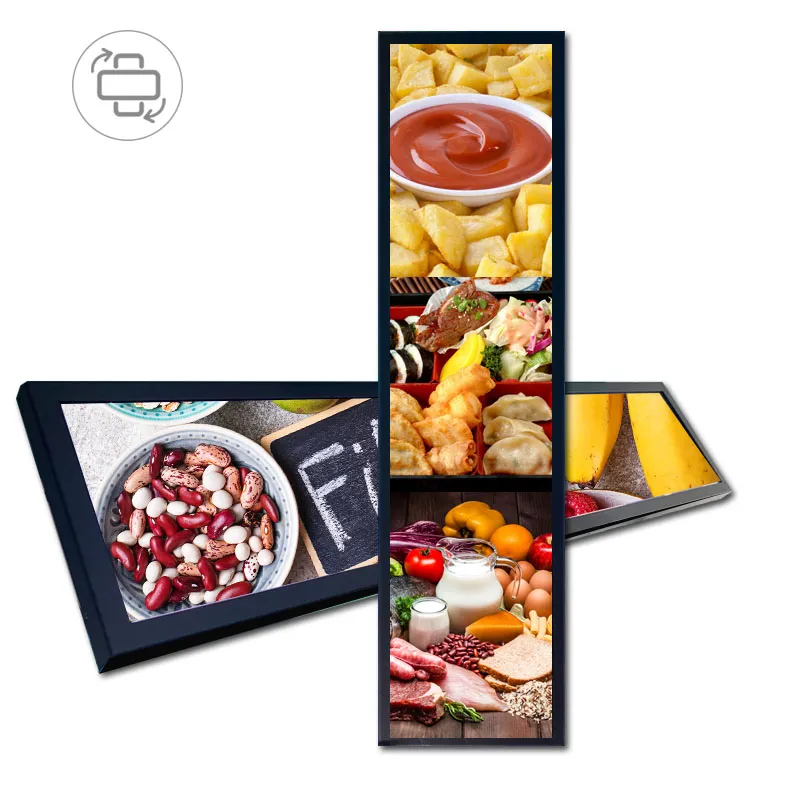

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
