3.5 inch TFT Display 320*480 RGB ST7701

UGS : DSZ0021
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

3.5 inch TFT Display  320*480 Pixels  Serial RGB Interface  40 pin FFC ZIF Connection  Customized touch screen

Demande de tarification au volume







    Description

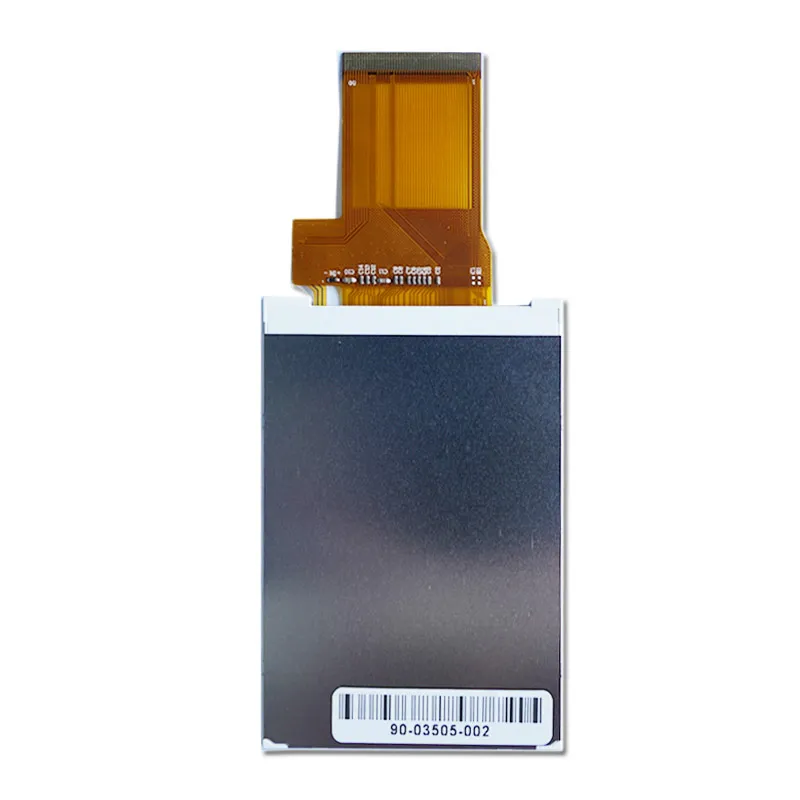

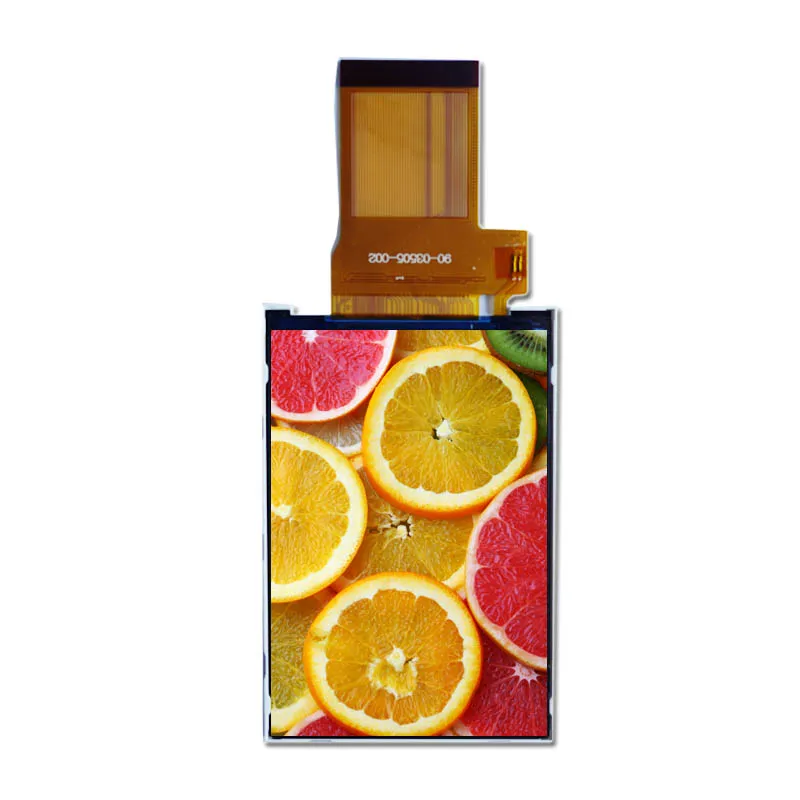

    3.5” IPS TFT LCD Display

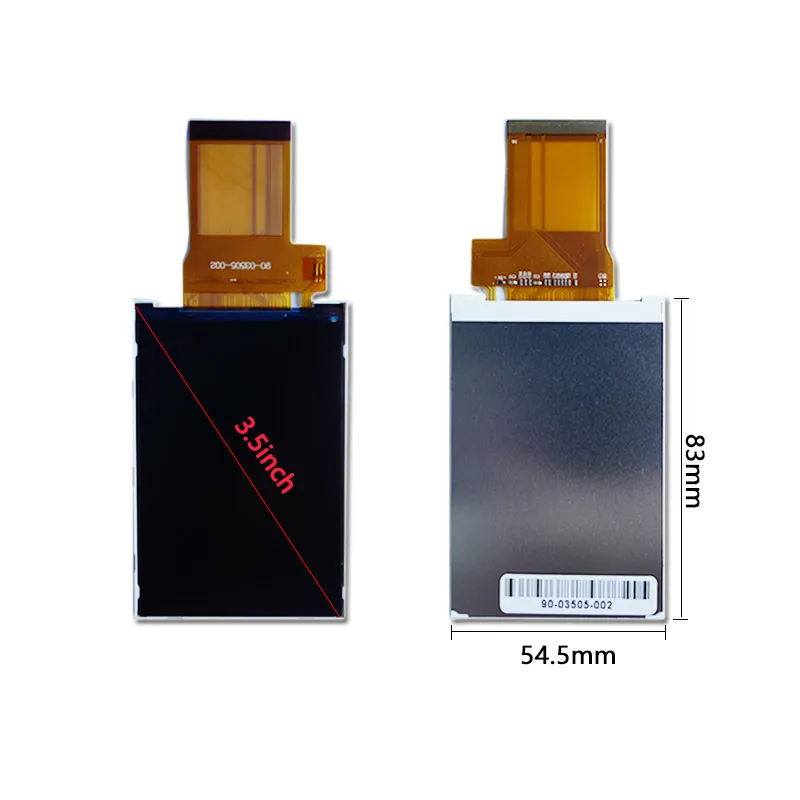

    3.5 inch TFT display delivers high-quality visuals with a resolution of 320x480 pixels, It features an active area of 48.96mm x 73.44mm and overall dimensions of 54.5mm x 83mm x 2.15mm, facilitating easy integration into various device designs. With a brightness level of 500 cd/m², it provides good visibility in different lighting conditions, while the LED backlight has a lifetime of 20,000 hours for reliable use. The high contrast ratio of 1000 enhances content clarity, and the module operates within a temperature range of -20°C to 70°C, with storage capabilities from -30°C to 80°C. Utilizing an RGB interface with a 40-pin connection, this display allows for seamless integration with modern microcontrollers and processors.



    High Contrast Ratio TFT Display

    The 1000:1 contrast ratio of the display module enhances visual clarity by ensuring that the brightest white is 1000 times brighter than the darkest black, which results in sharper and more detailed images, making text and graphics easier to read. This high contrast also improves color depth, allowing the display to reproduce a wider range of colors accurately, which is particularly beneficial for applications requiring precise color matching, such as graphic design and photography. Additionally, the higher contrast ratio enables better performance in varied lighting conditions, ensuring that content remains visible in both bright sunlight and dimly lit environments.

    3.5" TFT-LCD Product Specifications

    Numéro de modèle  90-03505-002
    Taille  3.5
    Résolution 320*480
    Dimension de l'ébauche 54.5*83.2*2.15
    Zone active 48.96*73.44
    Luminosité (cd/m²) 350
    Interface RVB
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Witout
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    3.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    3.5-Inch 320 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    350

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
