3.5 inch TFT LCD Module 320*480 MCU ST7701

UGS : DS20023
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

300

Prise en charge de l'écran tactile :

Type d'affichage :

3.5 inch TFT LCD Module  320*480 Pixels  Serial MCU Interface  ST7701 drive IC  Customized touch screen

Demande de tarification au volume







    Description

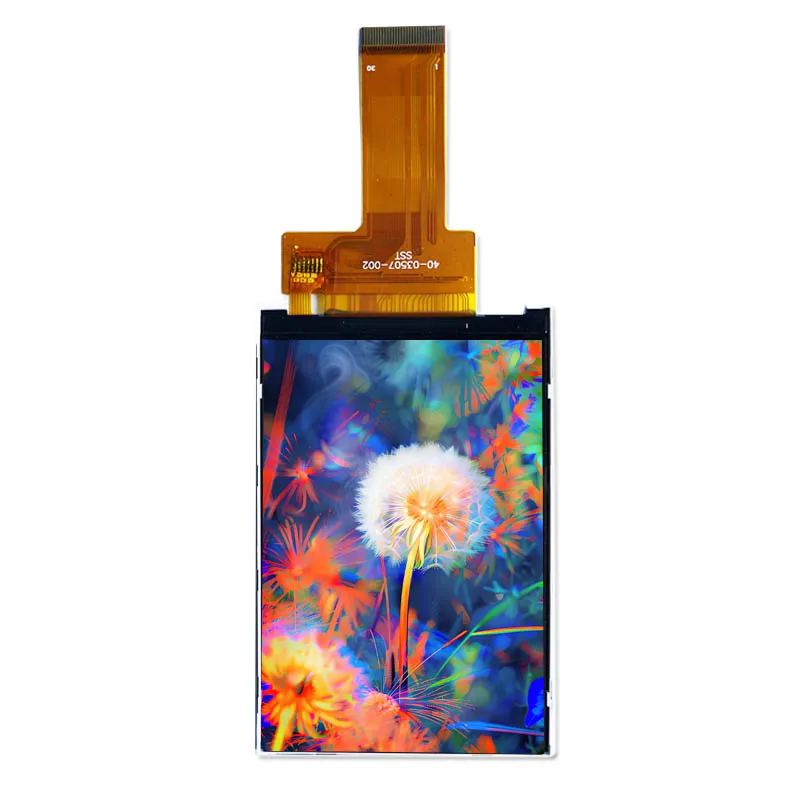

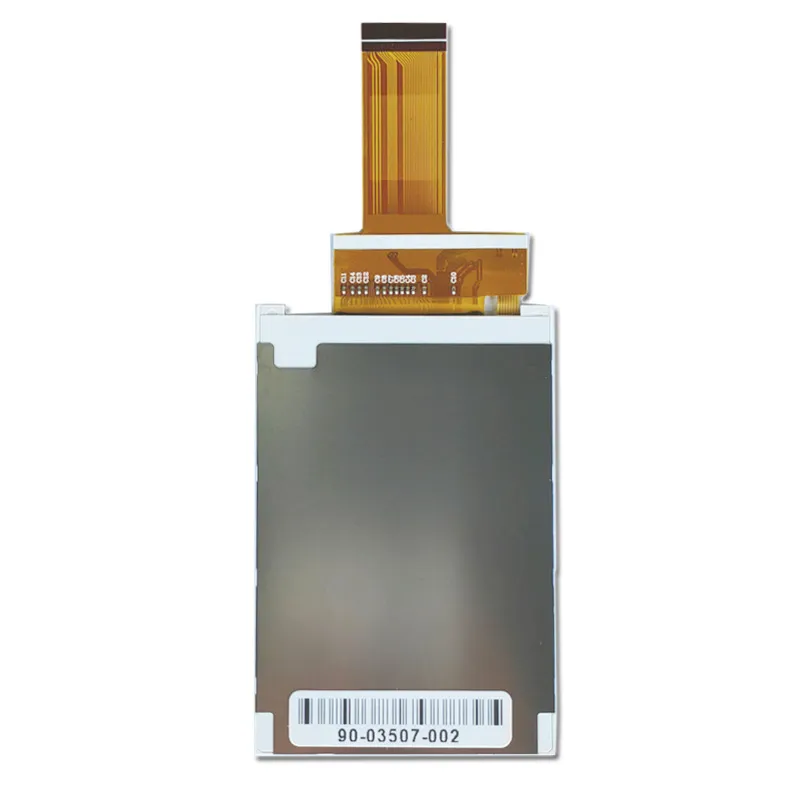

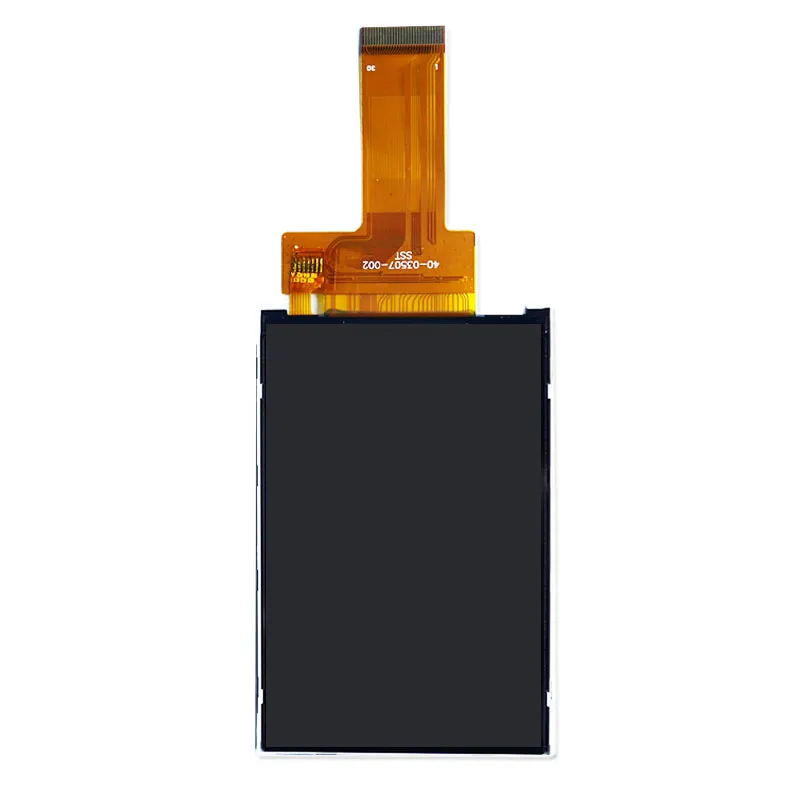

    3.5" IPS TFT LCD Display

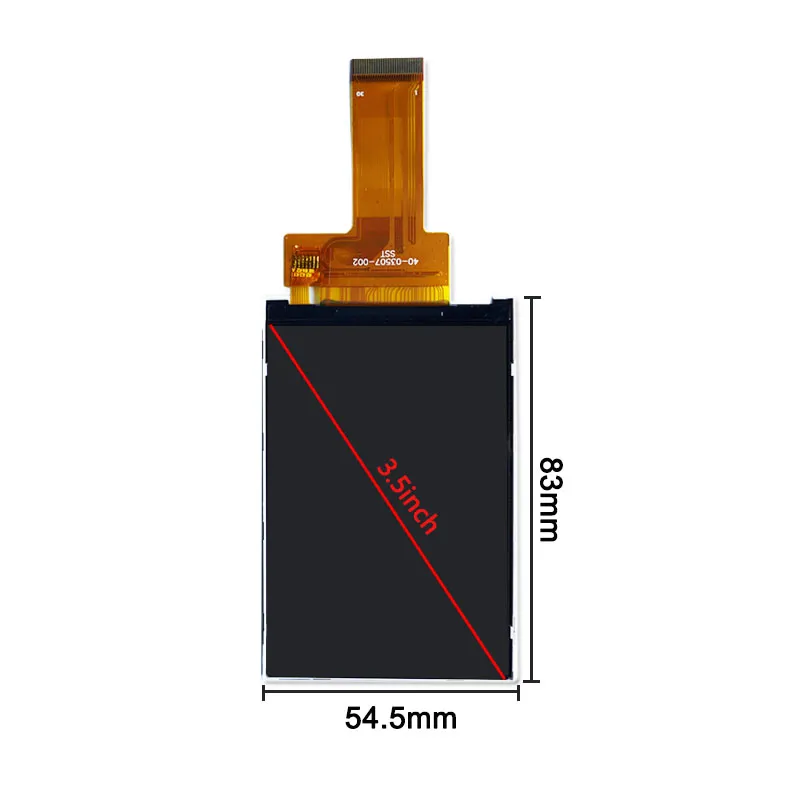

    The 3.5 inch TFT LCD module features a resolution of 320x480 pixels, making it ideal for a variety of applications that require compact, high-quality visuals. The active area measures 48.96mm x 73.44mm, while the overall dimensions are 54.5mm x 83mm x 2.25mm, ensuring easy integration into device designs. With a wide viewing angle of 80° in all directions, it maintains consistent image quality and color accuracy. The display's 500 cd/m² brightness ensures excellent visibility in various lighting conditions, and the LED backlight is rated for 20,000 hours of use. A high contrast ratio of 1000 enhances clarity and vibrancy, crucial for precise visual output. Operating efficiently within a temperature range of -20°C to 70°C and compatible with an MCU interface, this module facilitates seamless integration with modern microcontrollers, making it versatile for diverse environments.



    High Brightness TFT Display

    The 500 cd/m² brightness of the display ensures excellent visibility even in bright ambient light conditions, making it ideal for outdoor applications where glare can hinder readability. This higher brightness level enhances the user experience by making content easier to read and interact with, reducing eye strain during prolonged use, which is particularly beneficial for navigation systems, handheld devices, and industrial displays. Additionally, increased brightness improves the perception of color depth and vibrancy, resulting in more vivid and lifelike images, which is crucial for applications in graphic design, gaming, and multimedia where color accuracy is paramount.

    3.5" TFT-LCD Product Specifications

    Numéro de modèle  90-03507-001
    Taille  3.5
    Résolution 320*480
    Dimension de l'ébauche 54.5*83.2*2.25
    Zone active 48.96*73.44
    Luminosité (cd/m²) 500
    Interface MCU
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Witout
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    3.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    3.5-Inch 320 × 480 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    300

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
