3.5 inch TFT LCD Screen 320*480 MCU ST7701

UGS : DSZ0022
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

300

Prise en charge de l'écran tactile :

Type d'affichage :

3.5 inch tft lcd screen  320*480 Pixels  Serial MCU Interface  45 pin FFC ZIF Connection  Customized touch screen

Demande de tarification au volume







    Description

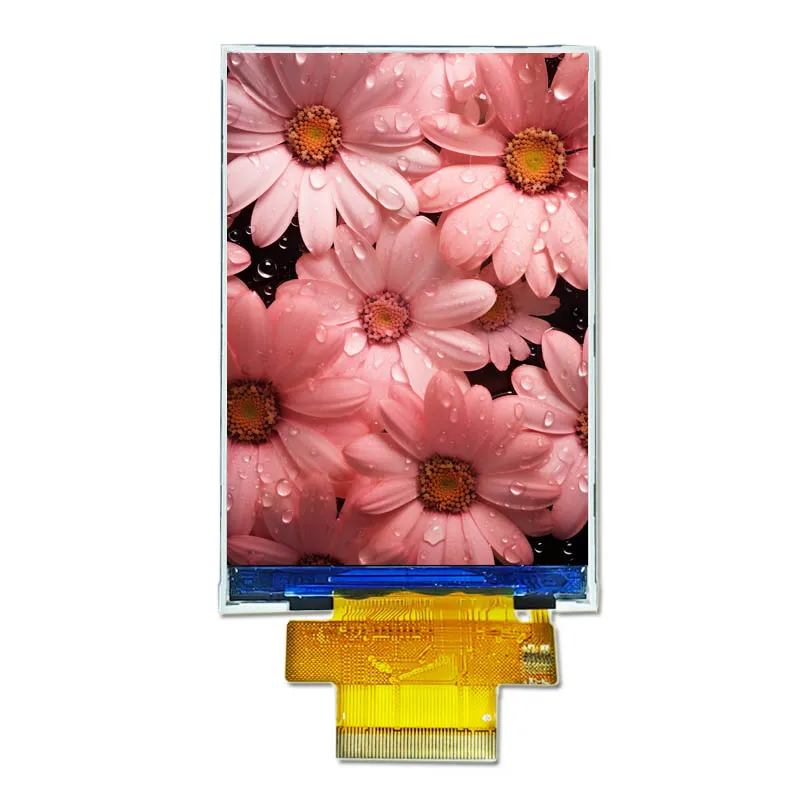

    3.5" TFT LCD Screen with ST7701 Drive IC

    The 3.5" TFT LCD Screen driver efficiently manages the timing and control signals for the LCD panel, ensuring smooth image rendering. It supports an MCU interface with typically 45 pins, facilitating easy connection to microcontrollers for data communication. Capable of handling multiple color depths (up to 16-bit), the ST7701 delivers rich and vibrant visuals. Its built-in SRAM enables frame buffering, enhancing performance by reducing the load on the host microcontroller and allowing smoother graphics transitions. Additionally, the driver features power-saving modes to extend battery life in portable applications, and it supports flexible configurations for various TFT-LCD panels, making it a versatile choice for manufacturers.



    Application for this 3.5" TFT Display

    The 3.5-inch TFT-LCD display module is versatile and suitable for various applications, including consumer electronics like smartphones and tablets where high-quality visuals are crucial. It is ideal for industrial control panels, enabling clear monitoring and control of machinery. In medical devices, it provides critical information in an accessible format for patient monitors and diagnostic equipment. The display enhances user interfaces in home automation systems, allowing easy interaction with smart devices. Additionally, it is used in automotive displays, offering essential information and entertainment options for drivers and passengers.

    3.5" TFT-LCD Product Specifications

    Numéro de modèle  90-03506-001
    Taille  3.5
    Résolution 320*480

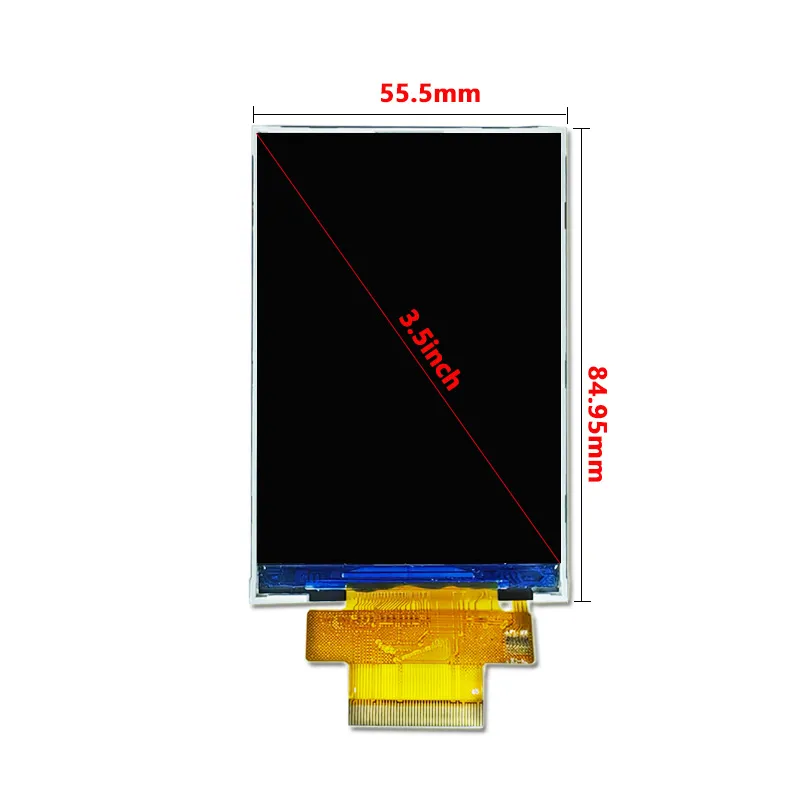

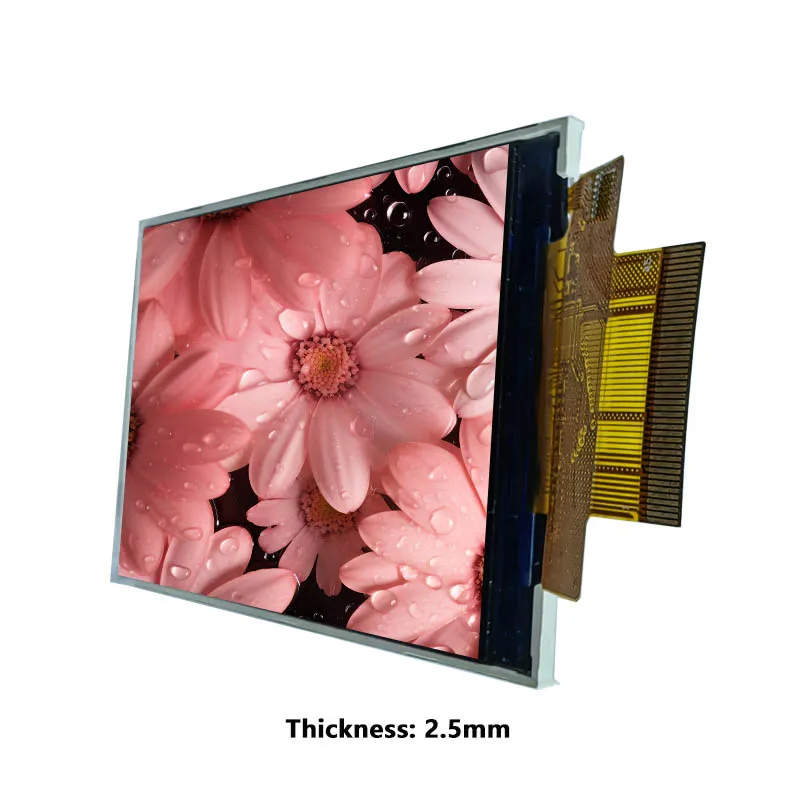

    Dimension de l'ébauche 55.5*84.9*2.5
    Zone active 48.96*73.44
    Luminosité (cd/m²) 300
    Interface MCU
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Witout
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    3.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    3.5-Inch 320 × 480 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 300 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
