Description
49.5″ Stretched LCD Monitors Features

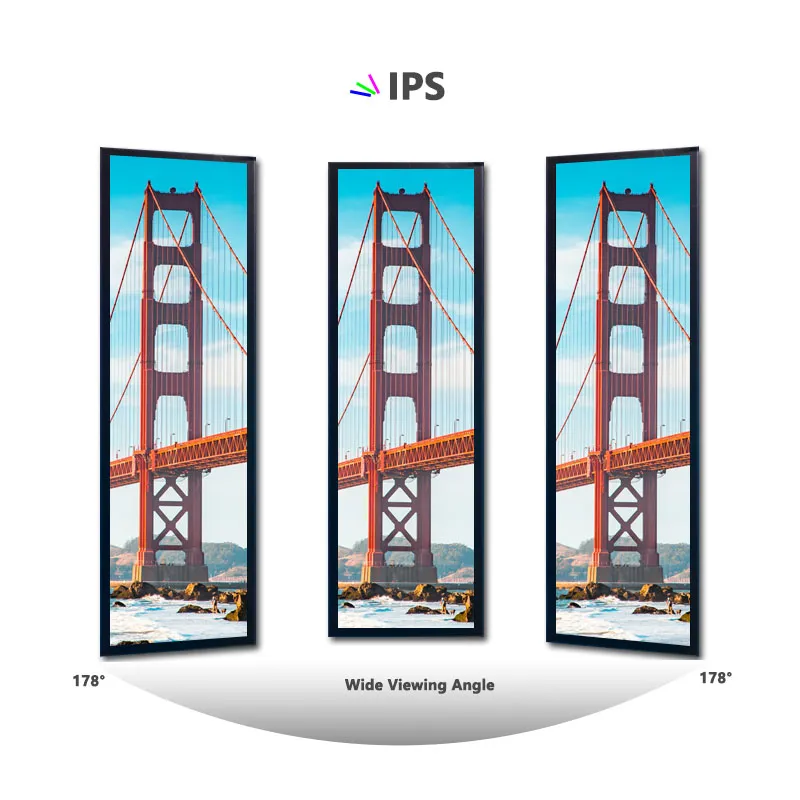

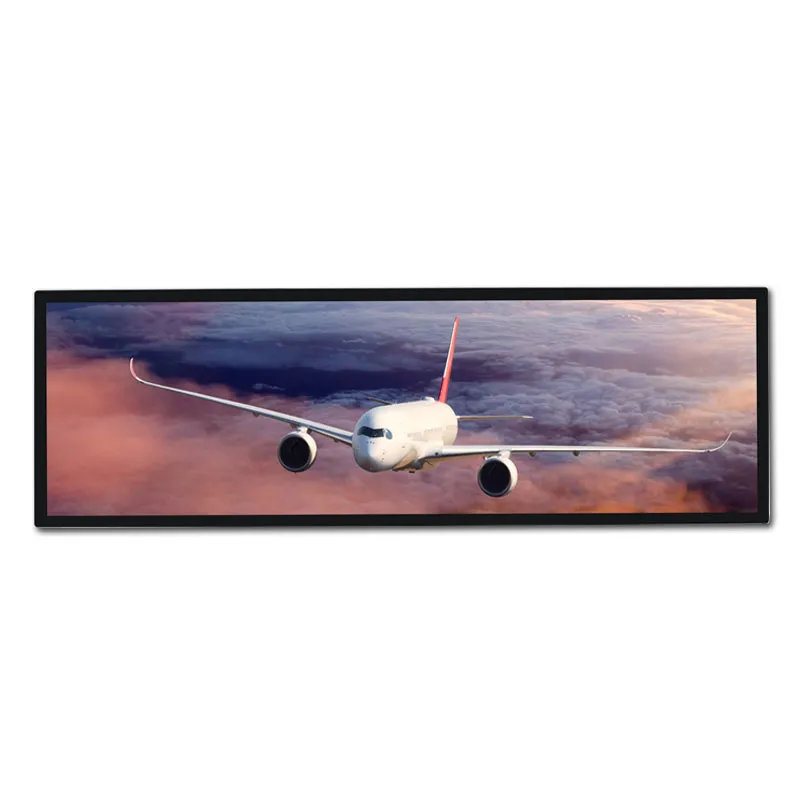

This 49.5 inch Stretched Bar TFT LCD features an LED backlight with a brightness range of 300 to 500 cd/m² and a resolution of 1920 x 540 pixels, delivering vibrant visuals with a high contrast ratio of 3000:1. It offers wide viewing angles of 89° in all directions and a response time of 13 ms for rise and 5 ms for fall, ensuring smooth image transitions. Supporting 16.7 million colors (with options for 1.07 billion), the display is constructed from a durable profile and tempered materials. The active area measures 1257.5 mm in height and 340.2 mm in vertical width, with overall dimensions of 1257.5 mm x 388 mm x 62 mm. The shell color is standard black, with customization options available to suit specific design needs.
49.5″ Stretched LCD Monitors Application
The device is equipped with an A40 CPU, 1GB DDR3 memory, and 16GB of built-in storage, running on Android 7.1. It supports network connectivity through Ethernet and Wi-Fi. The device is compatible with a variety of video formats, including WMV, AVI, FLV, RM, RMVB, MPEG, TS, and MP4, as well as image formats like BMP, JPEG, PNG, and GIF. It features 2 USB 2.0 ports, a 3.5mm headphone jack for audio output and input, and includes 3 serial port sockets (with at least one supporting RS232). Additionally, it has 1 RJ45 port for 100M adaptive Ethernet and supports 1080P output via its RS232 interface, making it a versatile multimedia solution for various applications.
49.5″ Stretched LCD Monitors Product Specifications
| Diagonal Size | 49.5″(Diagonal) |
|---|---|
| Nombre de pixels | 1920*540 Pixels |
| Zone active | 1257.5mm (H) x340.2mm (V) |

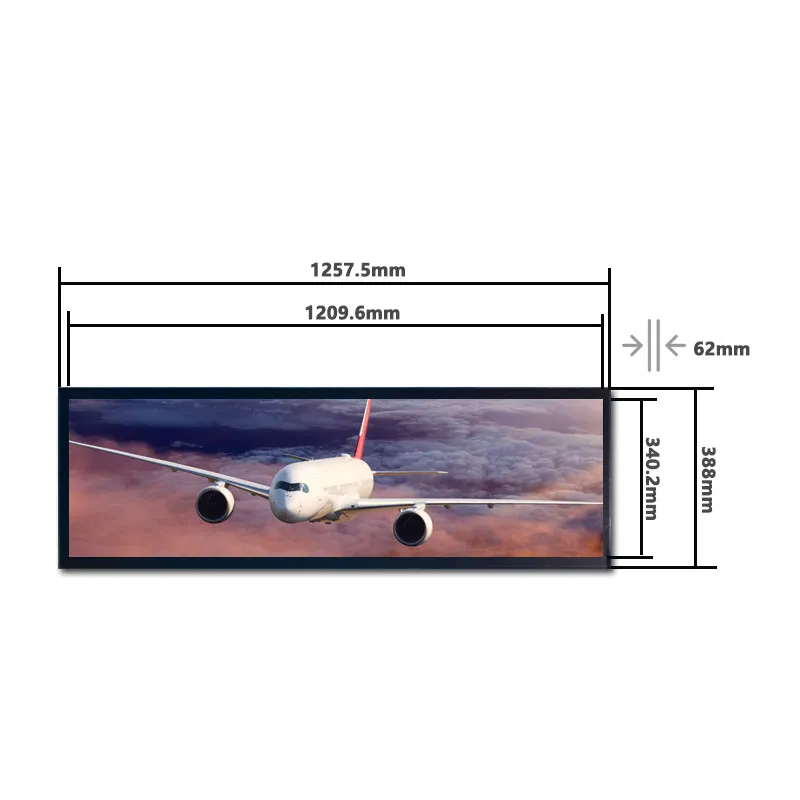

| Outline Dimensions | 1257.5mm*388mm*62mm |
| UNITÉ CENTRALE | A40 |
| Memory | 1GB DDR3 |
| Operating System | Android 7.1 |
| Network support | Ethernet, WIFI |
| Video Format Support | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, loop, timer, insert |
| Image Format Support | BMP、JPEG、PNG、GIF |
| USB | 2 USB 2.0 |
| Ethernet | 3 serial port sockets (support at least RS232*1) |
| HDMI | 1 RJ45, 100M adaptive Ethernet |
| Touch | Infrared touch |
| – | – |
49.5″ Stretched LCD Monitors Custom Solutions
Optimisez vos solutions de câblage
Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile
Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.
Verre de couverture sur mesure
Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.
