Description
24″ Stretched LCD Monitors Features

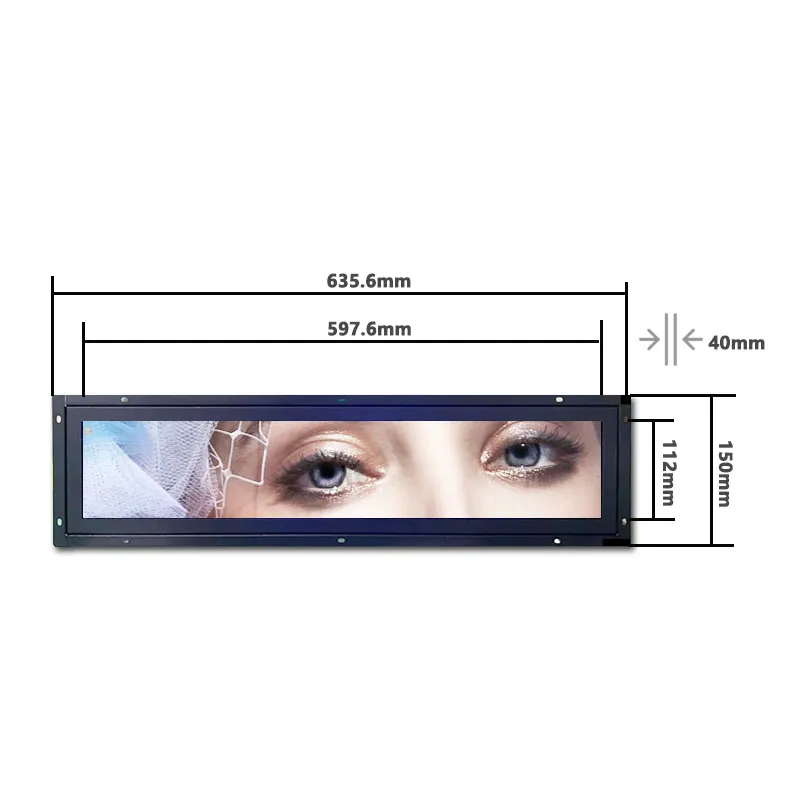

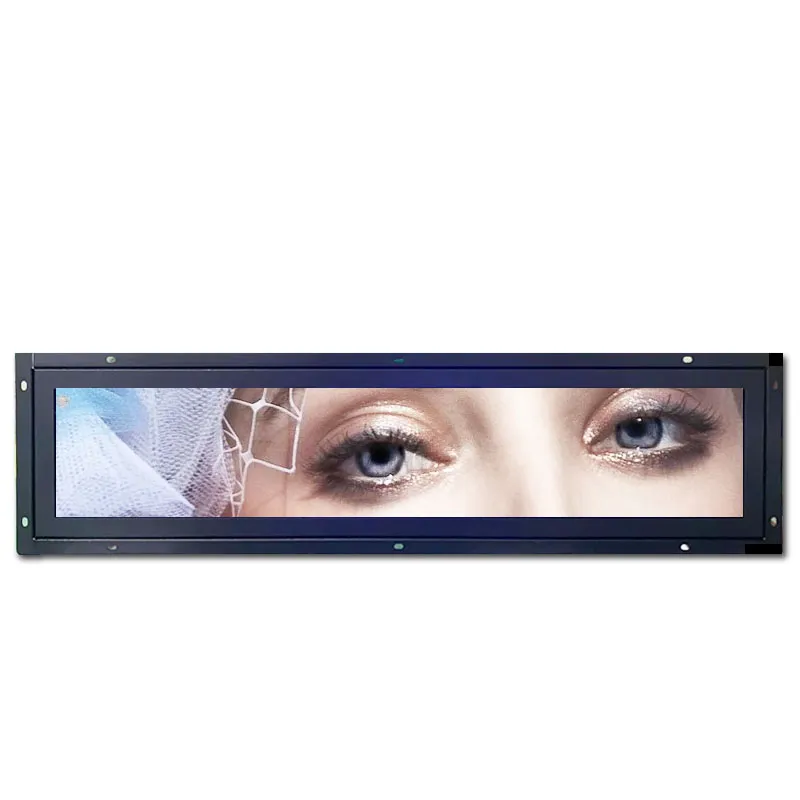

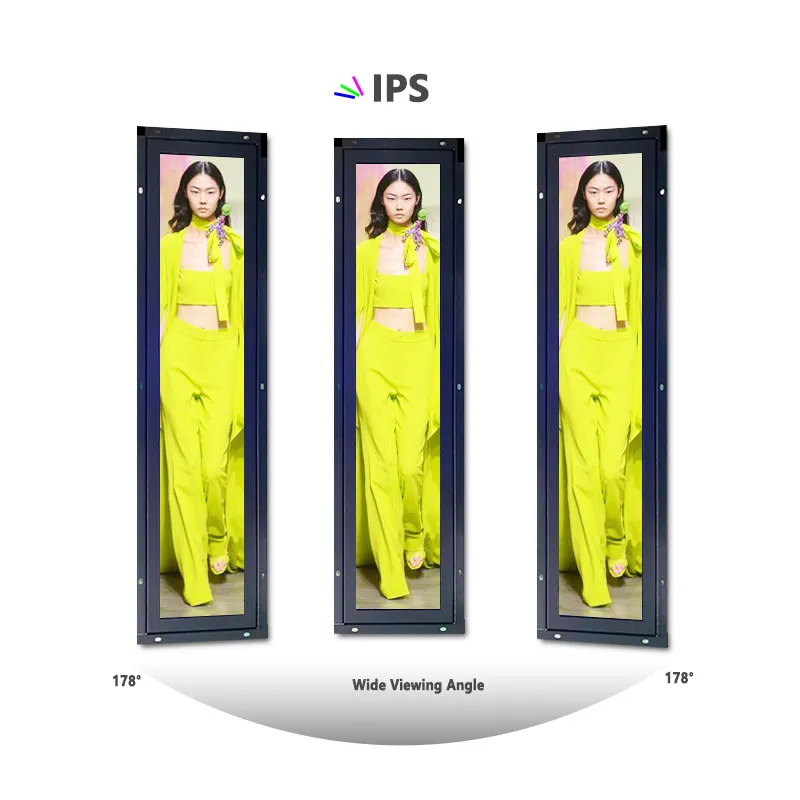

This 24 inch Stretched Bar LCD Monitor features an LED backlight with a brightness range of 350 to 500 cd/m² and a resolution of 1920 x 360 pixels, providing vibrant visuals with a typical contrast ratio of 1200:1. It offers wide viewing angles of 89° in all directions and a fast response time of 8 ms (GtoG). Supporting 16.7 million colors (with options for 1.07 billion), the display is housed in a durable frame made from high gloss profile and tempered materials. The active area measures 597.6 mm in height and 112 mm in vertical width, while the overall dimensions are 635.6 mm x 150 mm x 40 mm. The shell color is black, with customization options available.
24″ Stretched LCD Monitors Application
The device is powered by an A40 CPU and features 1GB DDR3 memory along with 16GB of built-in storage, running on Android 7.1. It supports network connectivity via Ethernet and Wi-Fi. The device accommodates a wide range of video formats, including WMV, AVI, FLV, RM, RMVB, MPEG, TS, and MP4, with multiple playback modes such as looping, timing, and inserting. It also supports image formats like BMP, JPEG, PNG, and GIF. Connectivity options include 2 USB 2.0 ports, a 3.5mm headphone jack for audio output/input, 3 serial port sockets (with at least one supporting RS232), and 1 RJ45 port for 100M adaptive Ethernet. Additionally, the device can output 1080P through its RS232 interface, making it a comprehensive multimedia solution.
24″ Stretched LCD Monitors Product Specifications
| Diagonal Size | 24″(Diagonal) |
|---|---|
| Pixel Number | 1920*360 Pixels |
| Zone active | 597.6mm (H) x112mm (V) |
| Outline Dimensions | 635.6mm*150mm*40mm |
| CPU | A40 |
| Memory | 1GB DDR3 |
| Operating System | Android 7.1 |
| Network support | Ethernet, WIFI |
| Video Format Support | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4, loop, timer, insert |
| Image Format Support | BMP、JPEG、PNG、GIF |
| USB | 2 USB 2.0 |
| Ethernet | 3 serial port sockets (support at least RS232*1) |
| HDMI | 1 RJ45, 100M adaptive Ethernet |
| RS232 | 1, support 1080P output |
| Touch | G+G Capacitive touch |
24″ Stretched LCD Monitors Custom Solutions
Optimisez vos solutions de câblage
Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile
Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.
Verre de couverture sur mesure
Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.
