5 inch TFT Touch Display High Resolution 720*1280

UGS : DSZ0054
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

380

Prise en charge de l'écran tactile :

Type d'affichage :

5 inch TFT Display with Cover Lens  720*1280 Pixels  Serial MIPI Interface  30 pin FFC connection  Customized touch screen

Demande de tarification au volume







    Description

    5" LCD Displays Features

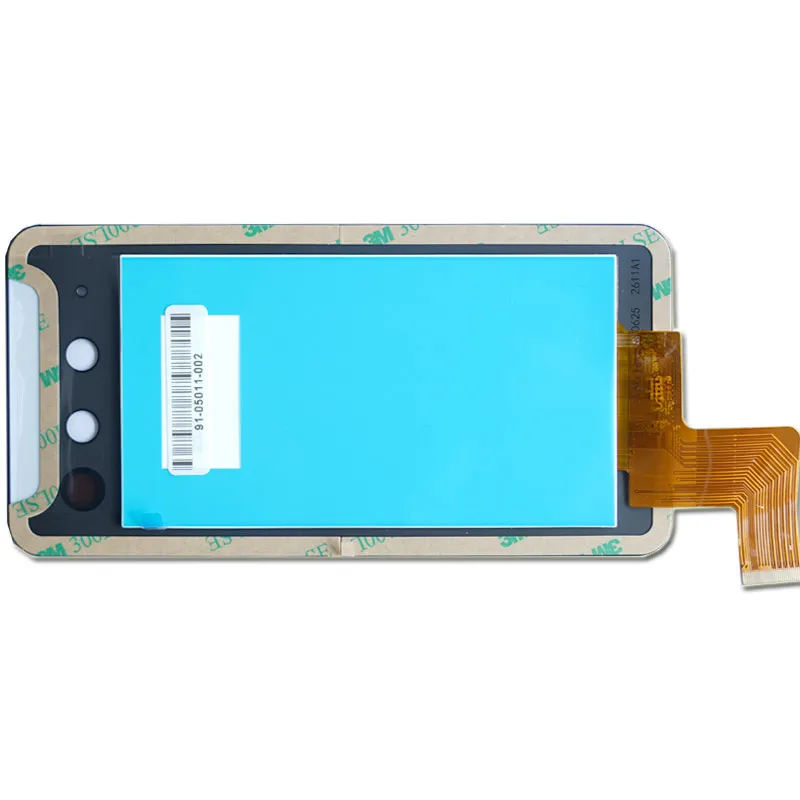

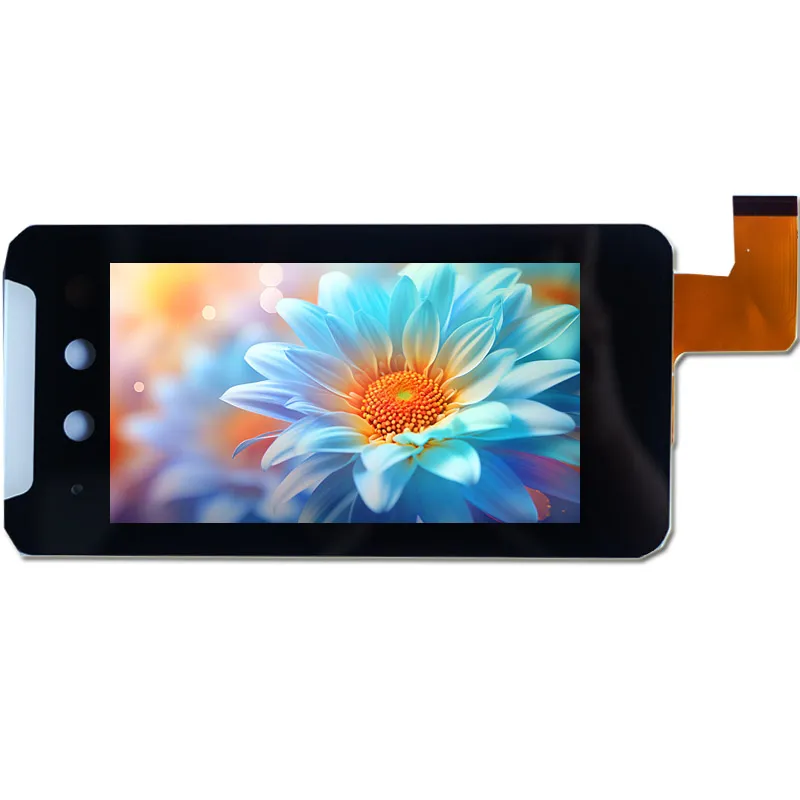

    The 5 inch lcd assembling enhanced with a cover lens, which provides a protective layer over the display. The module features a resolution of 720x1280 pixels, and a contrast ratio of 1000 enhances content clarity and vibrancy. It operates efficiently within a temperature range of -20°C to 70°C and can be stored at -30°C to 80°C. Which makes it a versatile choice for consumer electronics, industrial systems, and embedded solutions.



    5" LCD Panel with High Resolution

    The 5 inch capacitive touch screen features a resolution of 720x1280 pixels, providing high pixel density that ensures sharp and clear images with intricate details, making graphics, images, and text crisp and well-defined. This increased resolution supports high-quality visuals, ideal for applications such as gaming, video playback, and graphic design. Additionally, it enables rich color representation, allowing for a broader range of vibrant and accurate colors, which is crucial for multimedia applications. Coupled with a contrast ratio of 1000, the display enhances color depth and richness, making images more visually appealing and improving overall user engagement.

    5.0" TFT-LCD Product Specifications

    Numéro de modèle  91-05011-002
    Taille 5.0
    Résolution 720*1280
    Dimension de l'ébauche 78.9*158.9*3.47
    Zone active 61.78*109.82
    Luminosité (cd/m²) 380
    Interface MIPI
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    5.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    5-Inch 720 × 1280 MIPI TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 720 × 1280 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 380 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.
