5 inch Raspberry PI Screen 800*480 with 5 Point Capacitive Touch

UGS : DS20228
Taille :

Résolution :

Interface :

Prise en charge de l'écran tactile :

Soutien au conseil d'administration

Raspberry Pi, BB Black, Banana Pi

Ressources :

5 Raspberry PI Screen, with HDMI interface,capacitive touch screen, Compatible with Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC, no need for custom hardware, plug and play

Demande de tarification au volume







    Description

    5.0 inch Raspberry PI Screen Introduction :

    Hardware resolution 800×480, resolution can be configured through software (up to 1920X1080 supported)
    Supports 5-point capacitive touch control, USB touch, driver-free
    Built-in OSD menu adjustment function (adjustable contrast/brightness/power on/off, etc.)
    Compatible with mainstream mini PCs such as Raspberry Pi, BB Black, Banana Pi
    As a Raspberry Pi monitor, it supports Raspbian, Ubuntu, WIN10 IOT and other systems, single-point touch, driver-free
    As a computer monitor, it supports Windows 7/ 8/ 8.1/ 10, five-point touch, driver-free
    Supports common game consoles such as Microsoft Sony PS4, XBOX360 and Nintendo
    This product has passed CE and RoHS certification


    Product Pictures

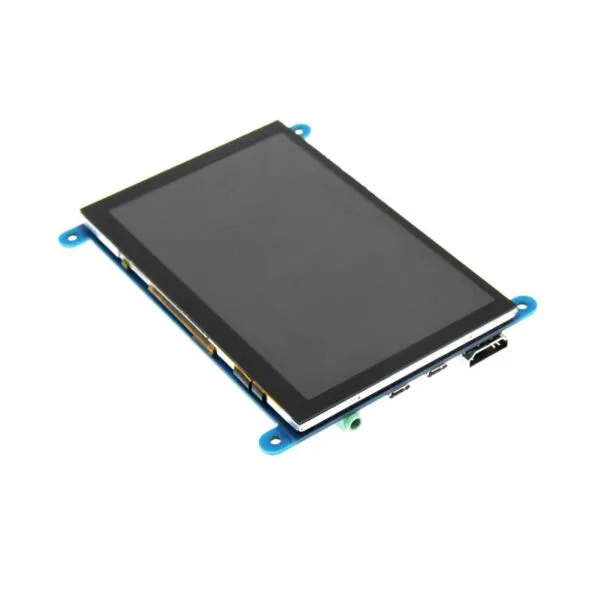

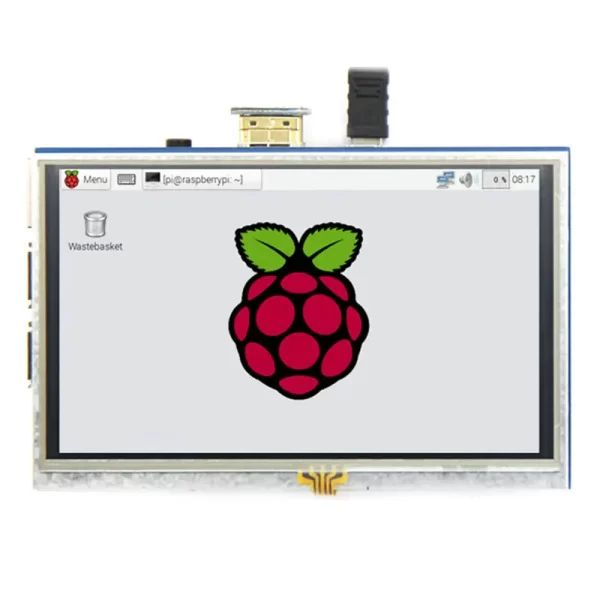

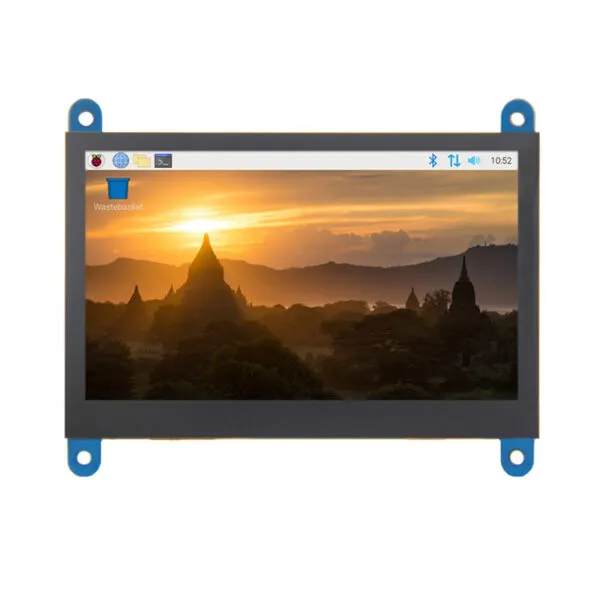

    5 Raspberry Pi Touch Screen 1
    5 Raspberry Pi Touch Screen 25 Raspberry Pi Touch Screen 35 Raspberry Pi Touch Screen 4

    Interface Function:
    5 Raspberry Pi Touch Screen 6
    Button& Interface Note
    ① Earphone 3.5mm audio output interface
    ②&③ Touch USB touch/power supply interface, used for power supply and touch output, the two functions are the same, just connect any one
    ④ Display HDMI interface, used to connect the motherboard and LCD display for HDMI transmission
    ⑤ Power Turn on or off the LCD display to reduce power consumption
    ⑥ Return Return to the previous level when setting the display menu
    ⑦ Right/Down Direction key (backlight shortcut adjustment key)
    ⑧ Left/Up Direction key (backlight shortcut adjustment key)
    ⑨ Menu Display OSD setting menu / selection key

    5" Raspberry Pi Touch Screen Key Parameters :

    Size(inch) 5
    Resolution(pixels) 800*480
    Display material IPS TFT panel
    Touch 5 point capacitive touch
    Module power 0.30A*5V
    Module size(mm) 121.11*95.24
    Active Area(mm) 105.11*64.80
    Product weight(g) 259

    Télécharger

    5-Inch 800 × 480 Raspberry Pi Display FAQ

    Can I mount this display with my Raspberry Pi and still reach the connectors?

    Use the 5-inch diagonal to shortlist display assemblies, then check the exact drawing for fit. Check the mounting stack, cable exit, port access and clearance for the actual Pi model and enclosure. Test fit with power and data cables plugged in.

    Will this display work with my Raspberry Pi model and OS image?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered. Send us the Pi model, OS image and kernel version. Confirm the display mode and any touch driver on that exact setup before committing to the hardware.

    Raspberry Pi screen guide

    How should I compare this screen with another Raspberry Pi display?

    Try your application in its intended orientation on a 800 × 480 canvas before committing to the enclosure. Compare boot reliability, usable screen area, power budget and the OS setup each option needs. Judge readability on the assembled product with its final cover and ambient lighting.

    Can I change the mounting, cable set, or touch configuration?

    Send the Pi model, OS version, available ports and enclosure drawing. We can review mounting and cable options and confirm how video, power and any touch input will be connected for the proposed configuration.

    What should I send for a Raspberry Pi display sample quote?

    Include the Pi and OS details, panel drawing, sample quantity and expected production volume. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
