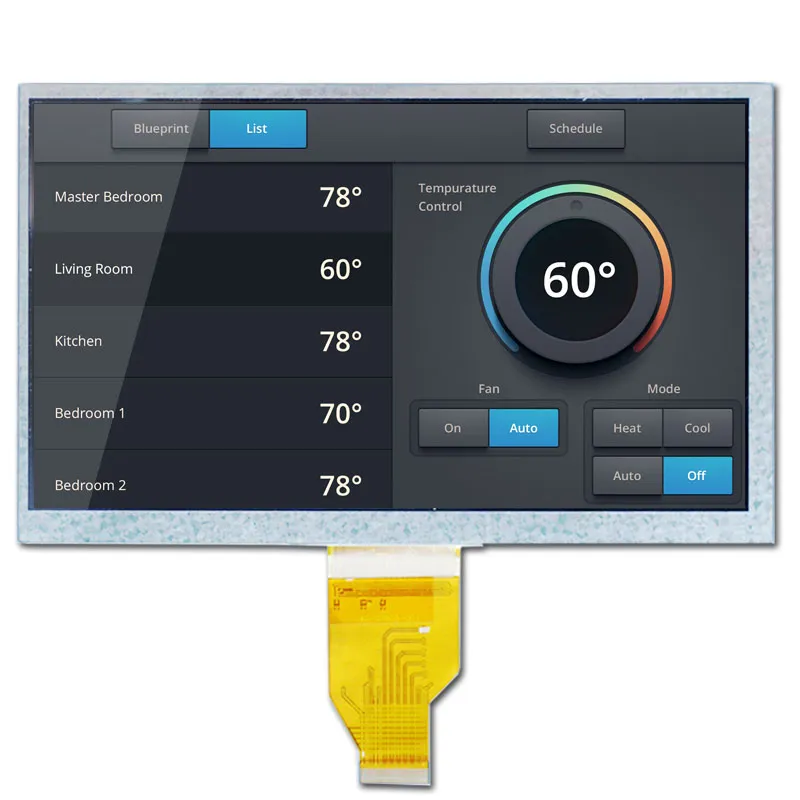

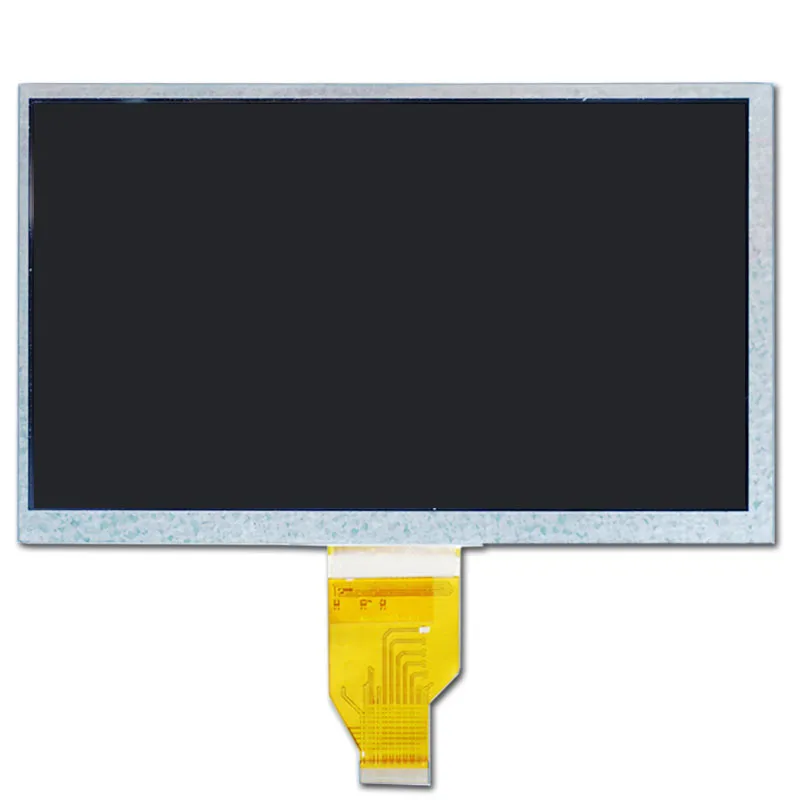

7 inch Industrial LCD Panel 1024*600 MIPI

UGS : DS20065
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

7 inch LCD Display Screens  1024*600 Pixels  Serial MIPI Interface  30 pin FFC connection  Customized touch screen

Demande de tarification au volume







    Description

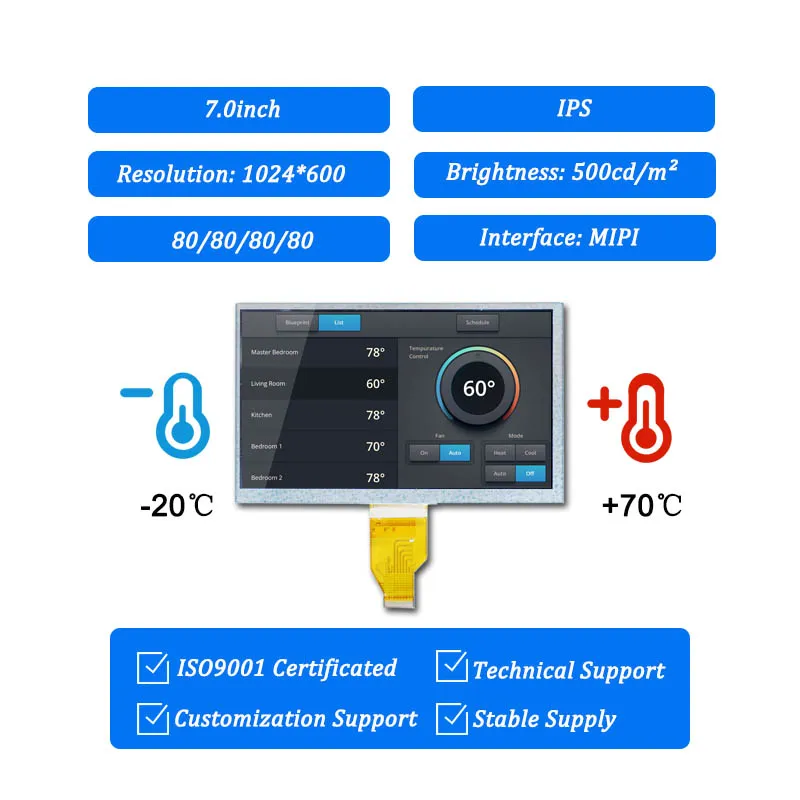

    7" LCD Display Screens Features

    The 7 inch Industrial LCD Panel offers an 80° viewing angle in all directions for consistent image quality, along with a brightness level of 500 cd/m² for excellent visibility in diverse lighting conditions. Its LED backlight is rated for 20,000 hours, and the contrast ratio of 800 enhances content clarity and vibrancy. Operating within a temperature range of -20°C to 70°C and utilizing a 30-pin MIPI interface, this module provides reliable performance and seamless integration with modern technology.



    Application for 7" TFT Screen

    The 7 inch TFT-LCD display is well-suited for various industrial and embedded applications. In industrial settings, it can be used in control panels to offer clear visuals for monitoring and managing machinery, as well as in automation systems to display real-time data, status updates, and alerts, thereby enhancing operational efficiency. For embedded systems, the display’s clarity and reliability make it ideal for medical devices, such as diagnostic equipment and patient monitoring systems, where accurate information is critical. Additionally, it is perfect for point-of-sale systems, providing a user-friendly interface that improves the customer experience during transactions.

    7.0" TFT-LCD Product Specifications

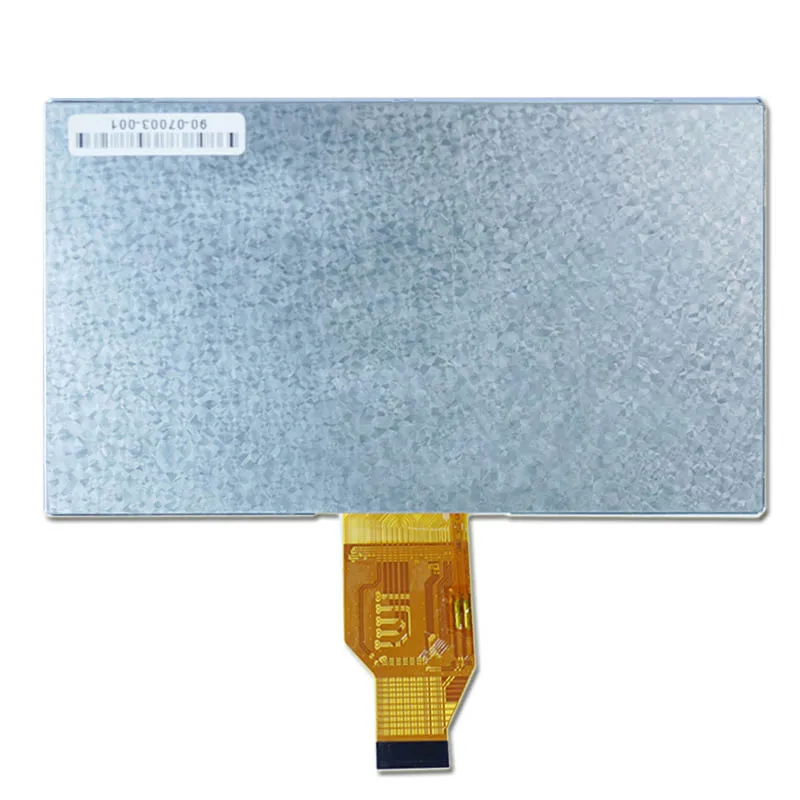

    Numéro de modèle  90-07003-001
    Taille 7.0
    Résolution 1024*600

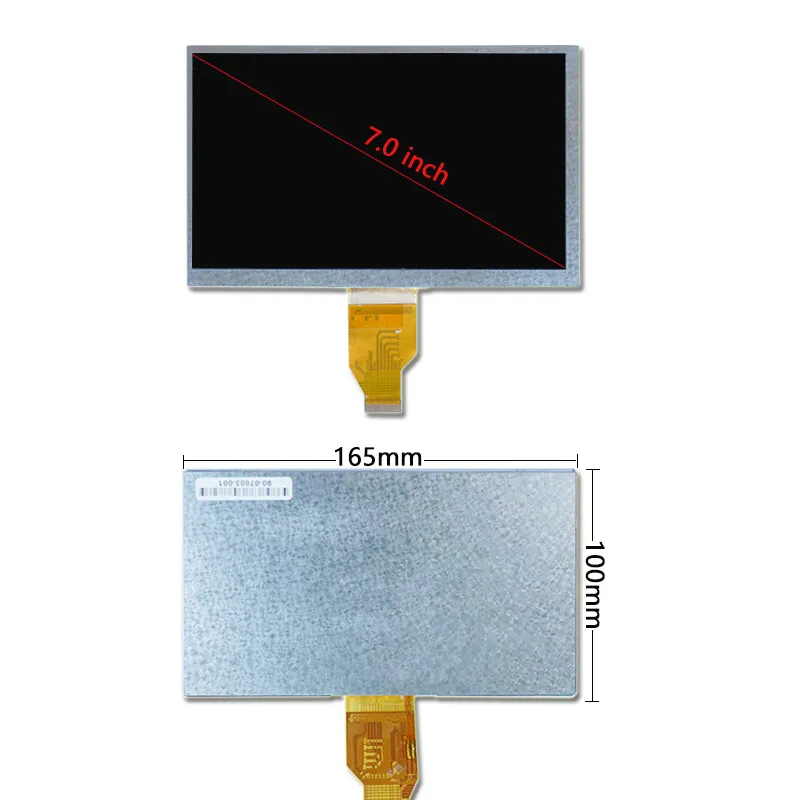

    Dimension de l'ébauche 165*100*5.7
    Zone active 154.21*85.92
    Luminosité (cd/m²) 500
    Interface MIPI
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 800:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    7.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    7-Inch 1024 × 600 High-Brightness LCD Display FAQ

    Will this display be readable through my outdoor enclosure window?

    Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test your smallest text in direct sun and at the worst reflection angle. Record the cover finish and viewing distance so you can repeat the test on later samples.

    Sunlight Readable TFT Displays

    What must my controller and power supply support in an outdoor installation?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Verify the backlight supply, dimming control and enclosure cooling using the exact panel documentation.

    How should I compare high-brightness displays behind the same cover?

    Use the 7-inch diagonal to shortlist high-brightness displays, then check the exact drawing for fit. Compare readability and temperature inside the same enclosure at the brightness needed to read the UI. Try your actual interface rather than a full-screen test image on a 1024 × 600 canvas before committing to the enclosure.

    Can the cover treatment, touch, or brightness be adapted to my installation?

    Send the opening, viewing distance, ambient light and maximum temperature at the panel. We can review cover finish, optical bonding or touch options and where a different panel or backlight design may be needed.

    What information is needed for a sample quote for an outdoor display?

    Include the cover stack, ambient light, temperature range, annual volume and target sample date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    500

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
