Description
7.0″ HDMI TFT Display Features

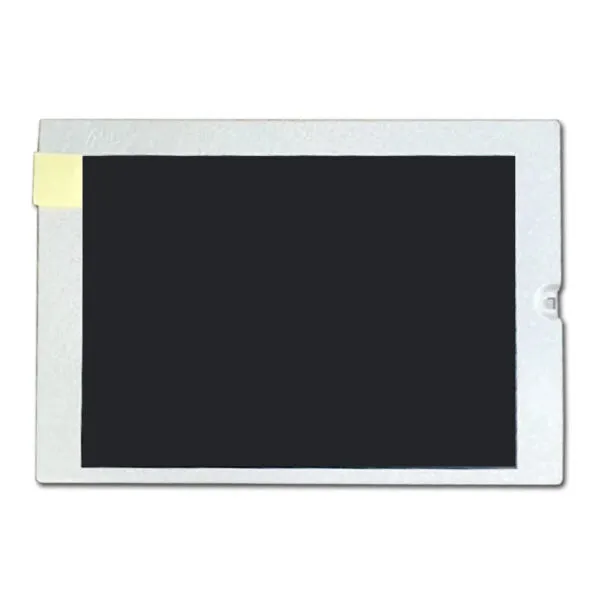

The 7 inch TN LCD Panel features a resolution of 800 x 480 pixels and dimensions of 153.84 mm x 85.63 mm, providing a clear and functional visual experience. The driver board supports various video signal inputs, including HDMI, VGA, and CVBS, with HDMI complying with the general 1.2 version. The VGA input matches the display’s resolution at 800 x 480 with a refresh rate of 60 to 75 Hz, while the CVBS input operates at 1.0 Vp-p with a 75Ω impedance. Additional features include a multi-function on-screen display (OSD), an optional remote control function, and automatic shutdown when no signal is detected, with a power input requirement of DC +12V.
7.0″ HDMI TFT Display Application
The 90-07012-001 is a versatile 7″ LCD TFT Module featuring a resolution of 800×480 pixels and comes equipped with a HDMI/VGA signal driver board. For added functionality, it offers optional touch panel support, including a 4-wire resistive touch panel with a USB driver board and cable, or a capacitive touch panel with a USB controller board and cable.
Designed for superior image quality, making it an ideal choice for a variety of applications, such as embedded systems, automotive displays, industrial equipment, security systems, and handheld devices where high-quality video output is essential. Its compatibility with Raspberry Pi via HDMI enhances its flexibility, supporting operating systems like Raspbian, Ubuntu, and Windows 10 IoT. The display also supports multi-touch and it is driver-free, ensuring ease of integration.
Beyond Raspberry Pi, the 90-07012-001 can serve as a computer display, offering compatibility with Windows 11, 10, 8, and 7. Its driver-free functionality and multi-touch capabilities make it a convenient display solution, suitable for a broad spectrum of applications.
7.0″ HDMI TFT Display Product Specifications
| Diagonal Size | 7.0(Diagonal) |
|---|---|
| Display Format | 800×480 Pixels |
| Interface | HDMI |
| IC or Equivalent | – |
| Connection | Plug-in FPC |
| Dimension de l'ébauche | 163.8(W)x99.8(H)X5.6(T)mm |
| Zone active | 153.84(W)x85.63(H)mm |
| Touch Panel Optional | Yes |
| Contrast Ratio(Typ) | 500 |
| Viewing Direction | 6 |
| Viewing Angle Range | 60/60 /50/50 |
| Brightness(Typ) | 350cd/m2 |
| Température de fonctionnement | -20℃~70℃ |
| Température de stockage | -30℃~80℃ |
| – | – |
7.0″ HDMI TFT Display Custom Solutions
Optimisez vos solutions de câblage
Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.
LCD Interface Customization
Select from a diverse range of interface options or consult our experts to find the ideal fit for your project. We can integrate HDMI, USB, SPI, VGA, and more into your display, helping you meet your design objectives efficiently.
Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile
Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.
Verre de couverture sur mesure
Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.
