8 inch HDMI LCD Screens for Raspberry PI with Capacitive Touch

UGS : DS20238
Taille :

Résolution :

Interface :

Prise en charge de l'écran tactile :

Soutien au conseil d'administration

Raspberry Pi, BB Black, Banana Pi

8 inch HDMI LCD Screens for Raspberry PI,Banana Pi、EAIDK、Jetson Nano、BB Black, 1280*800 high resolution IPS panel, can as second screen for pc

Demande de tarification au volume







    Description

    HDMI LCD Screens for Raspberry PI:

    8 inch standard display, 1280 × 800 resolution
    Tempered glass cover, Hardness up to 6H, scratch-resistant and durable
    High-sensitivity capacitive touch screen, Supports up to 5-point touch
    Supports access to multiple devices,Can be connected to mainstream development boards such as Raspberry Pi, Banana Pi, BB Black
    Can be connected to mainstream game consoles such as PS4, Xbox360, Switch
    Can be connected to mainstream TV boxes and digital cameras (display only)
    Supports multiple system displays,Supports Raspbian, Kali linux, Ubuntu, Kodi, Win10 IOT and other systems, touch driver-free
    Supports Win7/8/10/11 and other systems, touch driver-free
    CE and RoHS certified

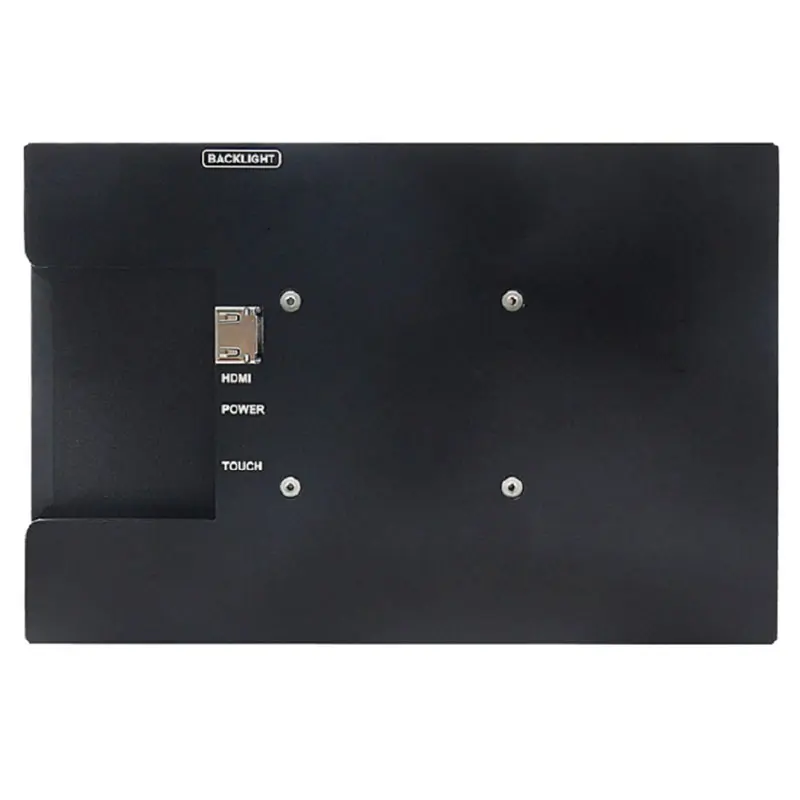

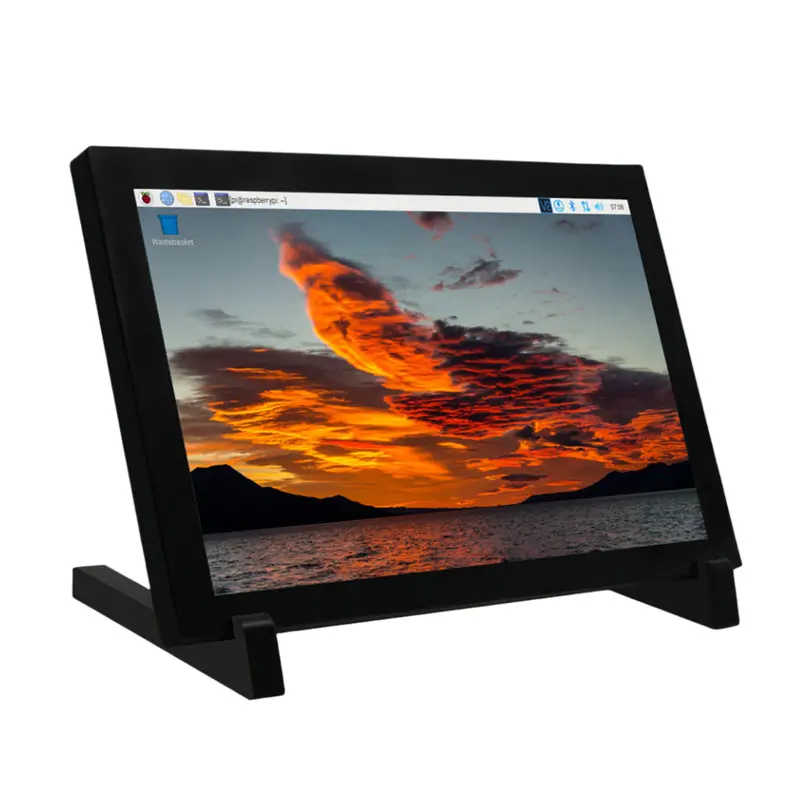

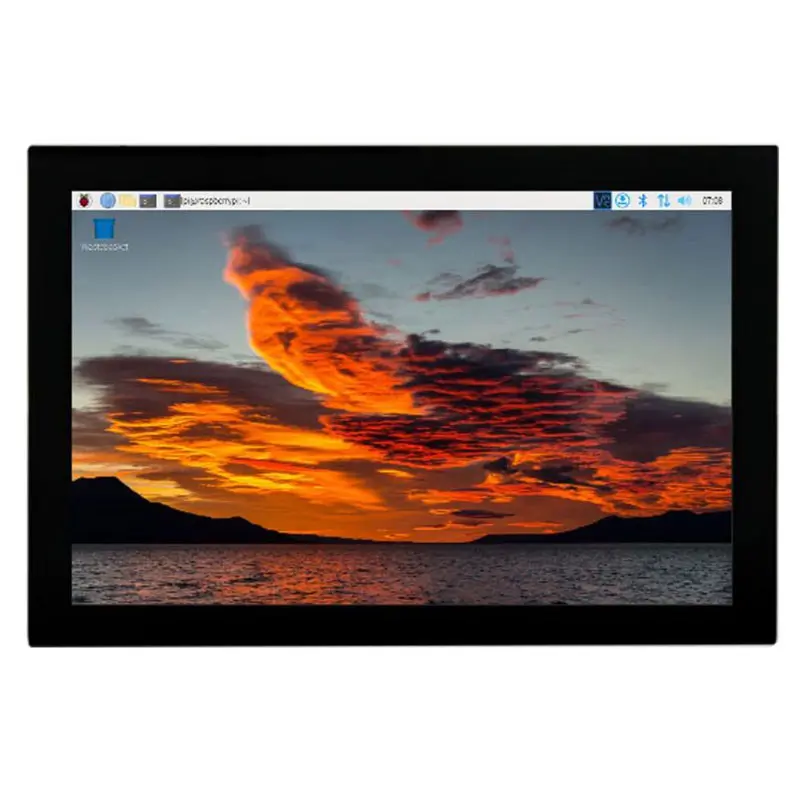

    Product Pictures

    raspberry pi screen

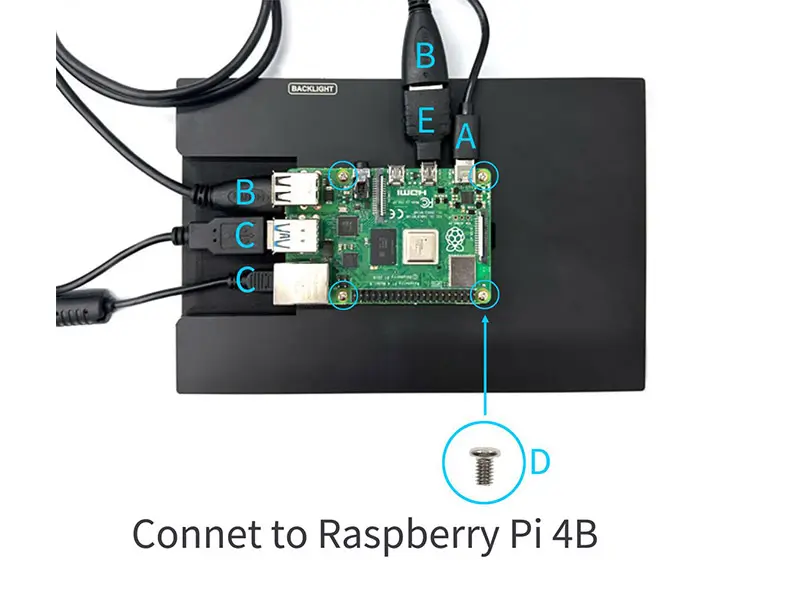

    raspberry pi keyboard on screensize

    Interface Function:

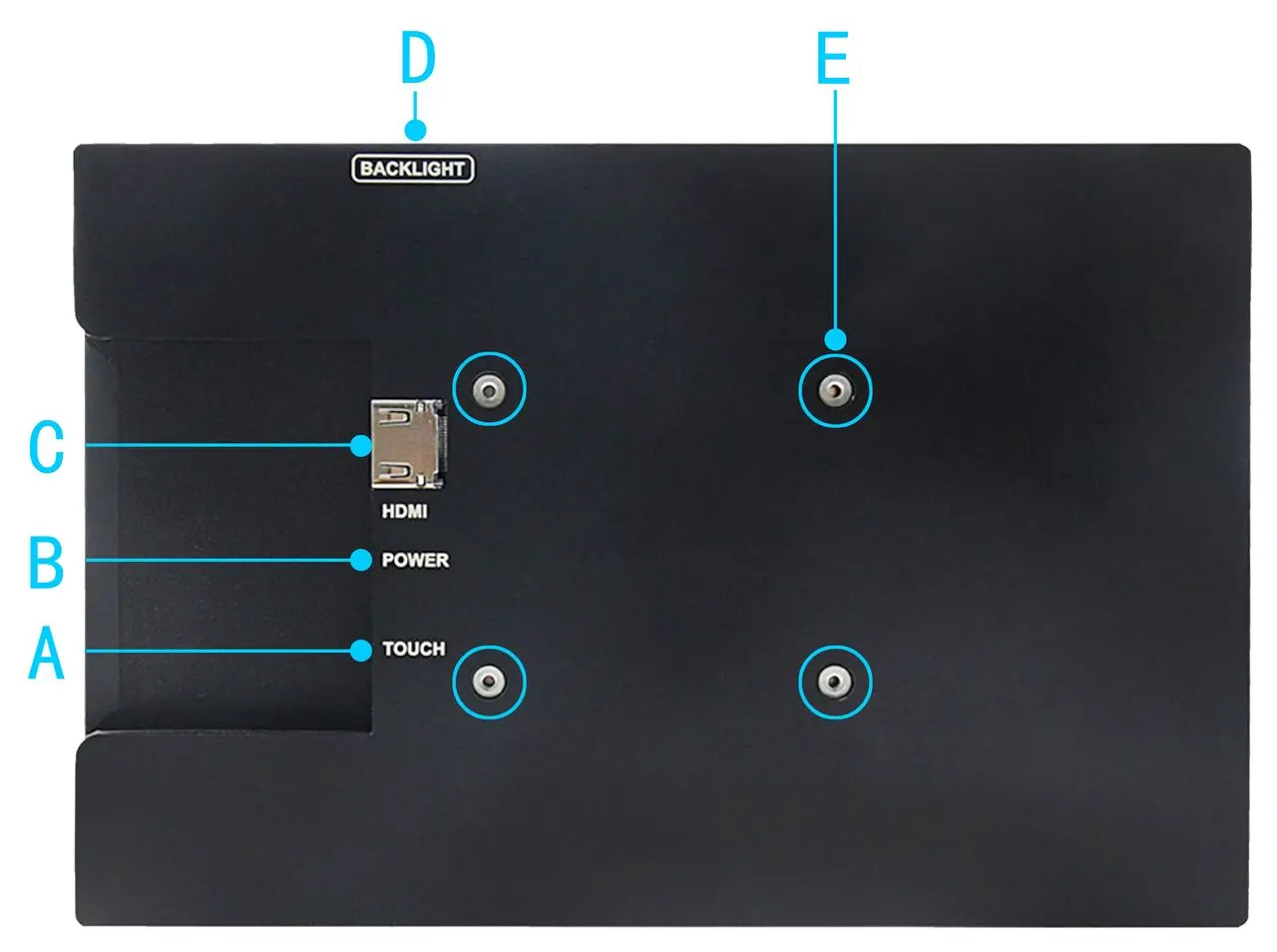

    Interface Introduction
    Button& Interface Note
    A: Touch interface Micro USB cable is used to connect with the signal source device. This interface is used for touch and power supply
    B: Power interface Using micro USB cable and power connection, this interface is only used for power supply
    C: HDMI interface Use HDMI cable to connect with signal source equipment, and the maximum supported resolution is 1080p
    D: Side key It is used to adjust the brightness. Press once to increase the brightness by 10%. After reaching 100%, press once again to return to 10%;
    Press and hold for 3 seconds to turn off the backlight, and then press again to restore the original brightness
    E: Copper pillar Used to fix raspberry pie (M2.5)

    8" Raspberry Pi Screen Key Parameters :

    Size(inch) 8
    Resolution(pixels) 1280*800
    Display material IPS full-view panel
    Touch Écran tactile capacitif
    Module power 3.79W (100% brightness)

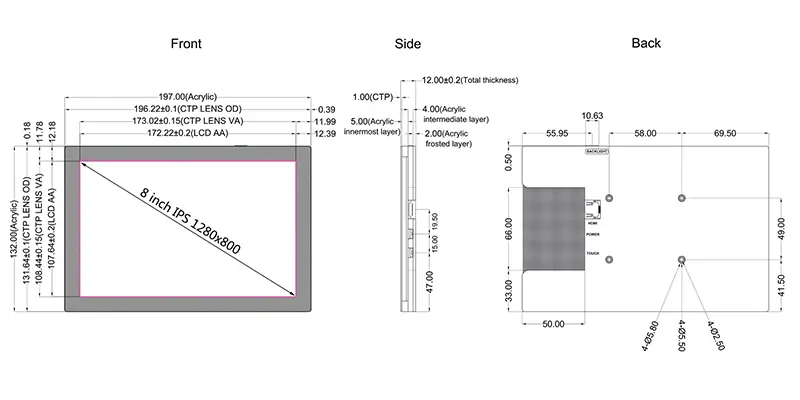

    Module size(mm) 197.0*132.0*12.0±0.2 (mm)
    Packaging size(mm) 234.0*164.0*62.0 (mm)
    Product weight(g) 610(g)

    Télécharger

    8-Inch 1280 × 800 Raspberry Pi Display FAQ

    Can I mount this display with my Raspberry Pi and still reach the connectors?

    Use the 8-inch diagonal to shortlist display assemblies, then check the exact drawing for fit. Check the mounting stack, cable exit, port access and clearance for the actual Pi model and enclosure. Test fit with power and data cables plugged in.

    Will this display work with my Raspberry Pi model and OS image?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered. Send us the Pi model, OS image and kernel version. Confirm the display mode and any touch driver on that exact setup before committing to the hardware.

    Raspberry Pi screen guide

    How should I compare this screen with another Raspberry Pi display?

    Try your application in its intended orientation on a 1280 × 800 canvas before committing to the enclosure. Compare boot reliability, usable screen area, power budget and the OS setup each option needs. Judge readability on the assembled product with its final cover and ambient lighting.

    Can I change the mounting, cable set, or touch configuration?

    Send the Pi model, OS version, available ports and enclosure drawing. We can review mounting and cable options and confirm how video, power and any touch input will be connected for the proposed configuration.

    What should I send for a Raspberry Pi display sample quote?

    Include the Pi and OS details, panel drawing, sample quantity and expected production volume. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Prise en charge de l'écran tactile :

    Soutien au conseil d'administration

    Raspberry Pi, BB Black, Banana Pi
