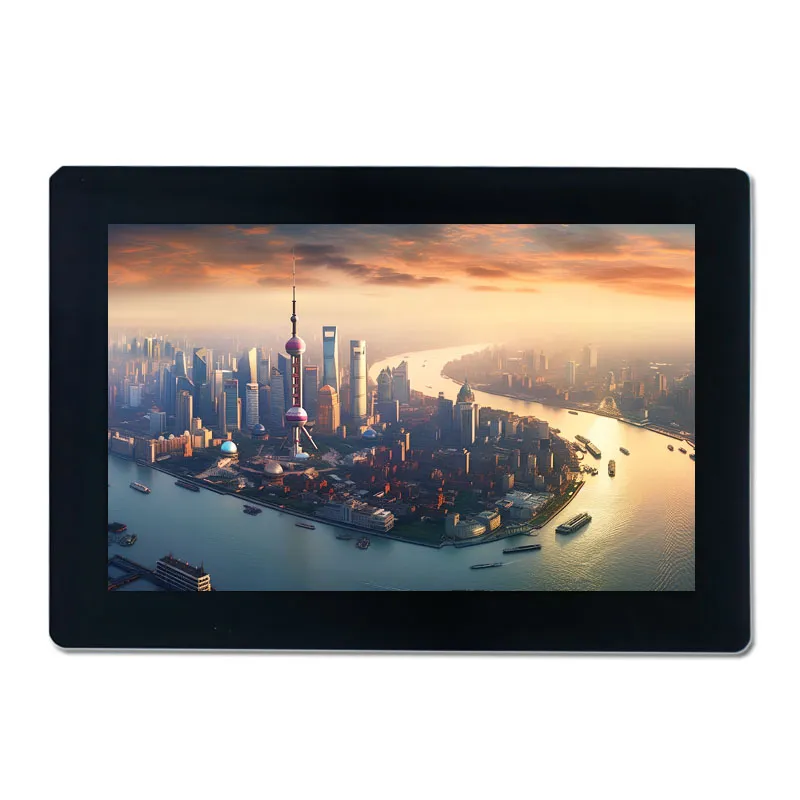

8 inch IPS LCD Panel with Capacitive Touch Screen Wide-Temperature

UGS : DS20120
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

380

Prise en charge de l'écran tactile :

Type d'affichage :

8 inch IPS LCD Panel 800*1280 Pixels with Capacitive Touch Display USB Interface 10 point Touch Touch IC SIS9509 G+G Structure OCA Bonding Transparency≥85% surface hardness 7H

Demande de tarification au volume







    Description

    8" IPS LCD Panel Features

    The 8 inch IPS LCD Panel supports wide 80° viewing angles in all directions, maintaining consistent image quality from any perspective. The MIPI 31 interface ensures efficient data transmission, and its brightness of 380 cd/m² and 800:1 contrast ratio deliver sharp, clear images even in bright environments. With a 20,000-hour LED backlight life and an operating temperature range of -20°C to 70°C, this display is ideal for industrial equipment, consumer electronics, and portable devices requiring durability and performance.

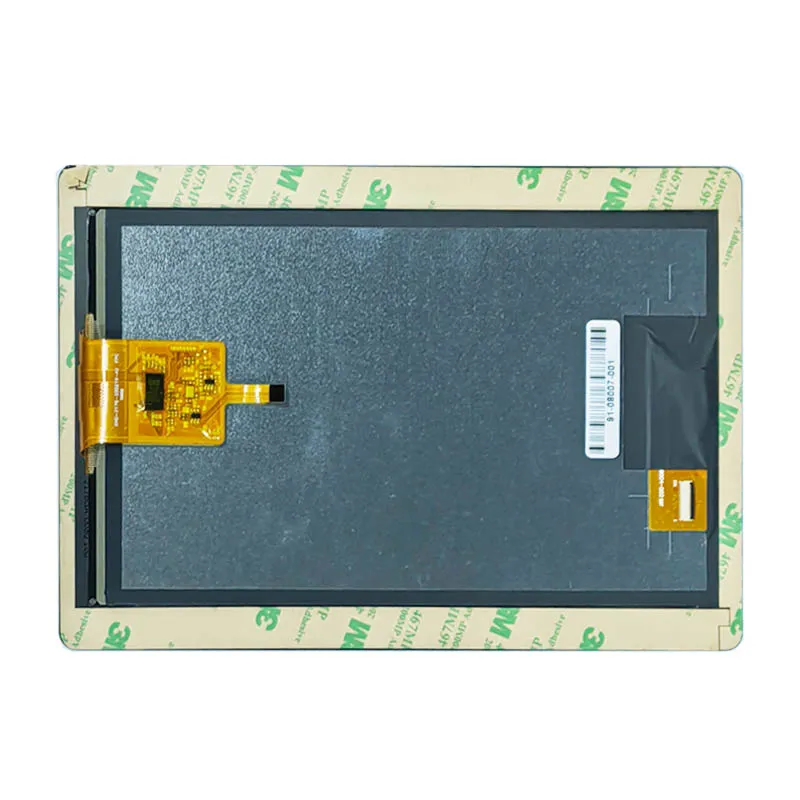

    8 inch IPS LCD Panel with Capacitive Touch Screen

    This 8-inch IPS LCD panel features a robust capacitive touch screen with 10-point multi-touch capability, ensuring precise and responsive touch inputs. Built with a durable G+G (Glass + Glass) structure and using OCA bonding, it offers excellent optical clarity, high touch sensitivity, and reduced reflections, enhancing brightness and visual quality. The screen includes a USB interface and is powered by the SIS9509 touch IC for reliable data processing. With a transparency level of ≥85% and a surface hardness of 7H, the touch panel is highly resistant to scratches, making it ideal for industrial controls, interactive kiosks, and other demanding applications where durability and touch accuracy are crucial.

    8.0" TFT-LCD Product Specifications

    Numéro de modèle  91-08007-001
    Taille 8.0
    Résolution 800*1280
    Dimension de l'ébauche 142*207*4.6
    Zone active 107.64*172.22
    Luminosité (cd/m²) 380
    Interface MIPI
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile capacitif
    Rapport de contraste 800:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    8.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    8-Inch 800 × 1280 MIPI LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 8-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 800 × 1280 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 380 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    380

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
