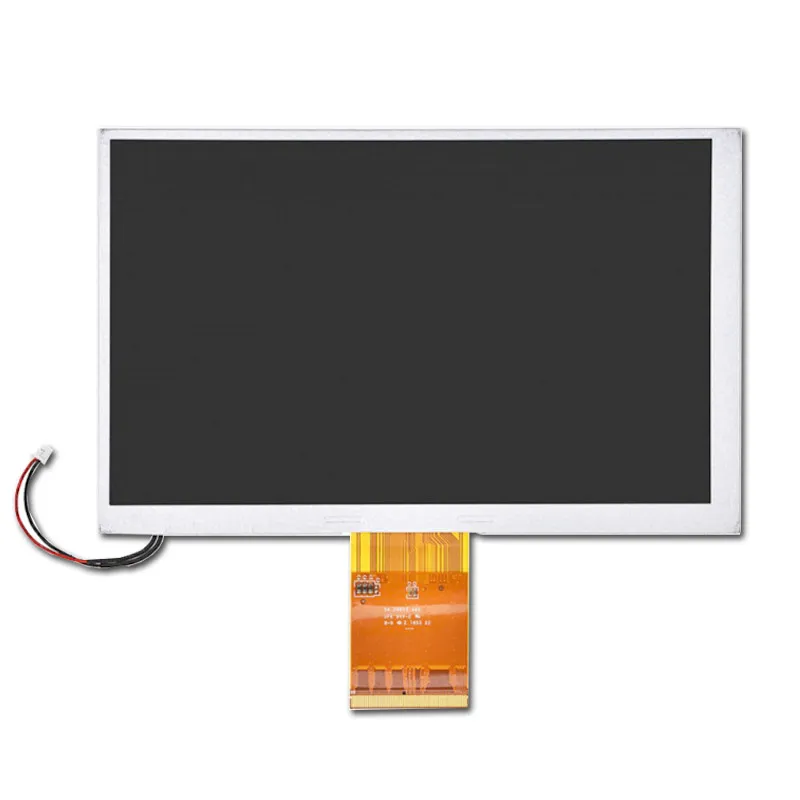

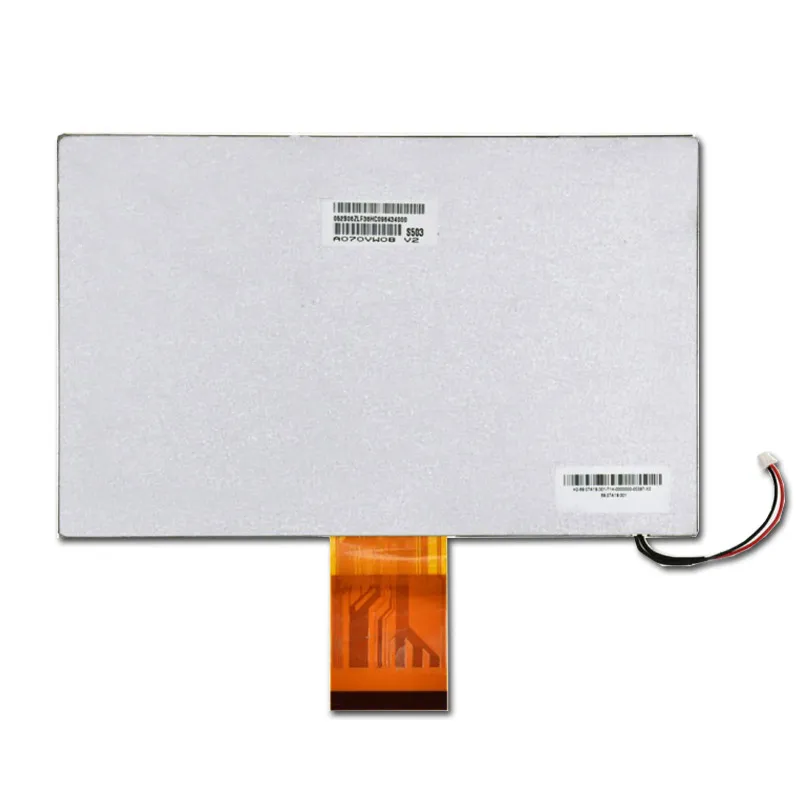

AU Optronics A070VW08 V2 7" TFT LCD Display 800x480, 500nits, TTL Interface

UGS : DS50123
Taille :

Numéro de modèle

A070VW08 V2

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

AU optronics a070vw08 V2 7" industrial TFT LCD panel with 800x480 resolution, 500nits brightness, TTL interface. Operates at -20°C~70°C,  Ideal for rugged applications.

Demande de tarification au volume







    Description

    AU Optronics A070VW08 V2 General Desription

    The AUO A070VW08 V2 is a 7-inch TN-type TFT LCD module engineered for demanding industrial and outdoor environments. Featuring 800x480 resolution and 500nits high brightness, it ensures clear visibility in direct sunlight. With a wide operating temperature range (-20°C to 70°C) and a 10,000-hour lifespan, this display delivers reliable performance in extreme conditions. The integrated TTL interface supports seamless integration with embedded systems, while its ruggedized design minimizes signal interference.



    A070VW08 V2 Application

    Key applications include industrial HMIs, medical devices, transportation systems, and outdoor digital signage. The panel’s anti-glare surface and 500:1 contrast ratio enhance readability across viewing angles. Compliant with RoHS standards, it offers a cost-effective solution for OEMs seeking durability and long-term stability. Custom mounting options and EMI shielding are available upon request.

    A070VW08 V2 Product Specifications

    Taille de la diagonale 7.0"(Diagonal)
    Nombre de pixels 800×480 Pixels
    Luminance 500
    Module Size 165(W)×104(H) ×5.4(D)
    Zone active 152.4(W)×91.44(H)
    Direction de visualisation TN
    View Angle(U/D/R/L) 65/65/50/60
    Interface RVB
    Rapport de contraste 500
    Température de fonctionnement -20~70℃
    Température de stockage -30~80℃
    Durée de vie des LED 10K
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3v
    Type d'affichage Color TFT

    AUO LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO A070VW08 V2 7-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO A070VW08 V2?

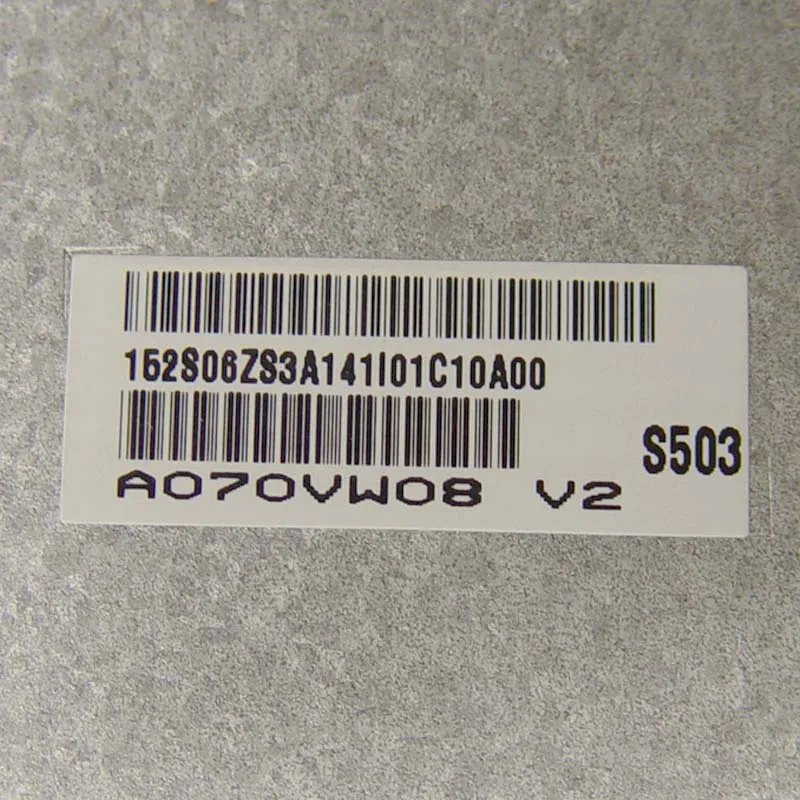

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing cable and controller with the AUO A070VW08 V2?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO A070VW08 V2?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO A070VW08 V2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    A070VW08 V2

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    500

    Prise en charge de l'écran tactile :

    Type d'affichage :
