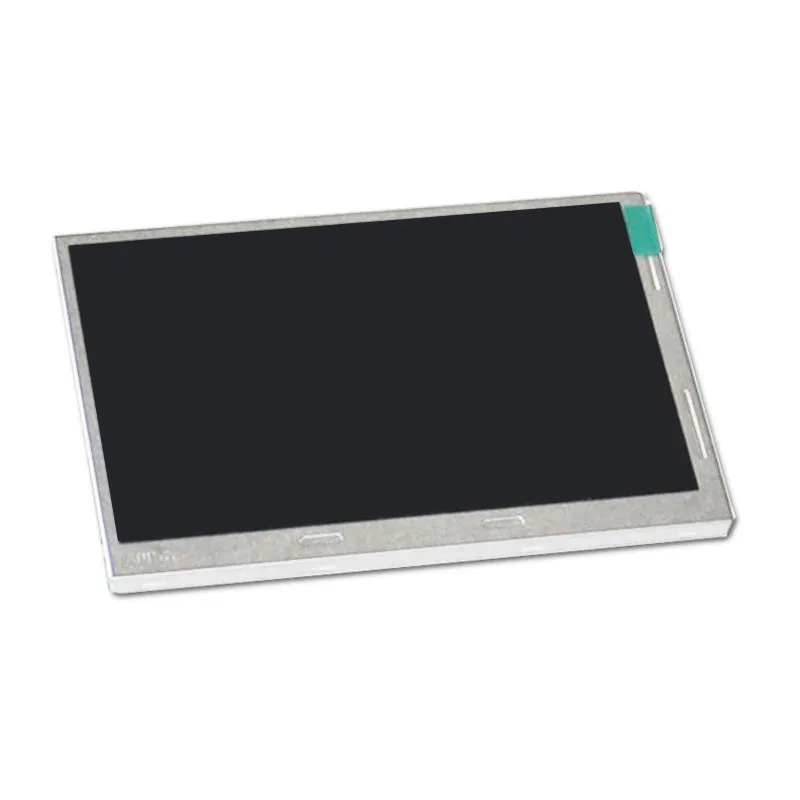

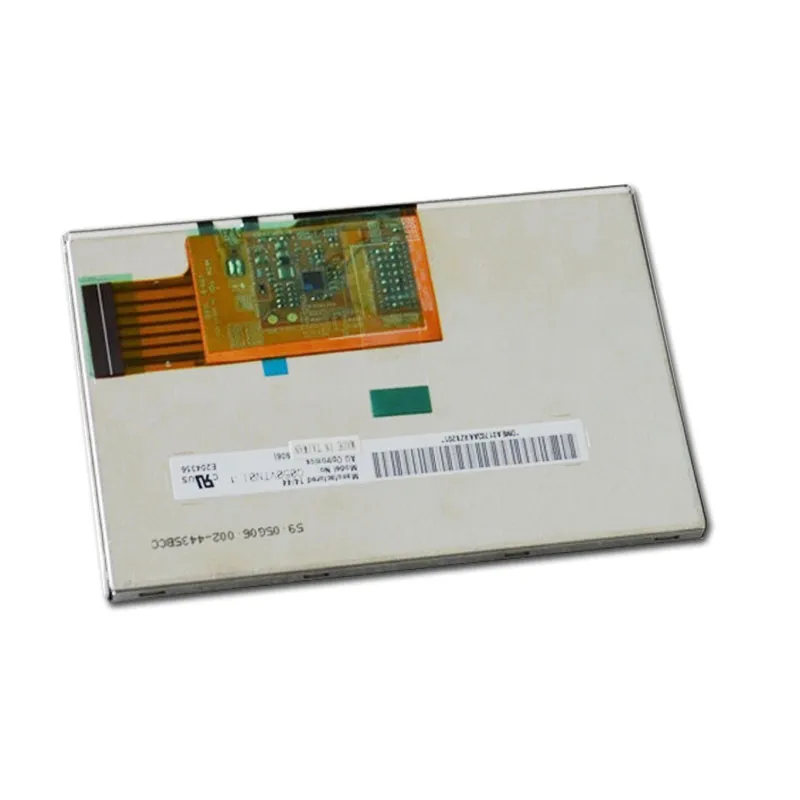

AUO G050VTN01.1 5" 1000nits Sunlight Readable Screen 800×480, -20~70℃ TTL, 40K Lifespan

UGS : DS50107
Taille :

Numéro de modèle

G050VTN01.1

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

1000

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

AUO G050VTN01.1: Sunlight-readable 5" TN panel with 1000nits brightness, 800×480 resolution & TTL interface. 40K-hour durability for extreme environments (-20~70℃).

Demande de tarification au volume







    Description

    G050VTN01.1 Key Features:

    This 5" Sunlight Readable Screen engineered for heavy-duty applications, it sets with 1000nits luminance - 270% brighter than conventional industrial panels. Its hardened architecture delivers:
    ✔ 40,000-hour operational lifespan (2× industry average)
    ✔ Military-grade thermal endurance (-20°C to 70°C)
    ✔ TTL signal integrity with EMI shielding
    ✔ Sunlight-optimized anti-reflective coating



    Technical Superiority:

    • 800×480 resolution with 500:1 contrast ratio
    • 75°(H)/75°(V)/65°(L)/75°(R) viewing angles
    • 20ms response time for motion clarity
    • IP65-rated front panel (optional)
    Certified for continuous operation in:
    ► Offshore drilling HMI ► Railway signaling systems
    ► Aviation ground support ► Desert solar farm monitoring
    Compliance: MIL-STD-810G vibration resistant, RoHS/REACH compliant. Customized bonding solutions for optical enhancement available.

    G050VTN01.1 Product Specifications

    Numéro de modèle G050VTN01.1
    Taille 5.0
    Résolution 800*480
    Dimension de l'ébauche 119.33×79.18×8
    Zone active 108×64.8
    Luminosité (cd/m²) 1000
    Interface TTL
    Voir la direction TN
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 40000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 600:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    5.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G050VTN01.1 5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G050VTN01.1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing TTL cable and controller with the AUO G050VTN01.1?

    For the listed TTL interface, match signal levels, timing and every connector pin before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G050VTN01.1?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G050VTN01.1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G050VTN01.1

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    1000

    Prise en charge de l'écran tactile :

    Type d'affichage :
