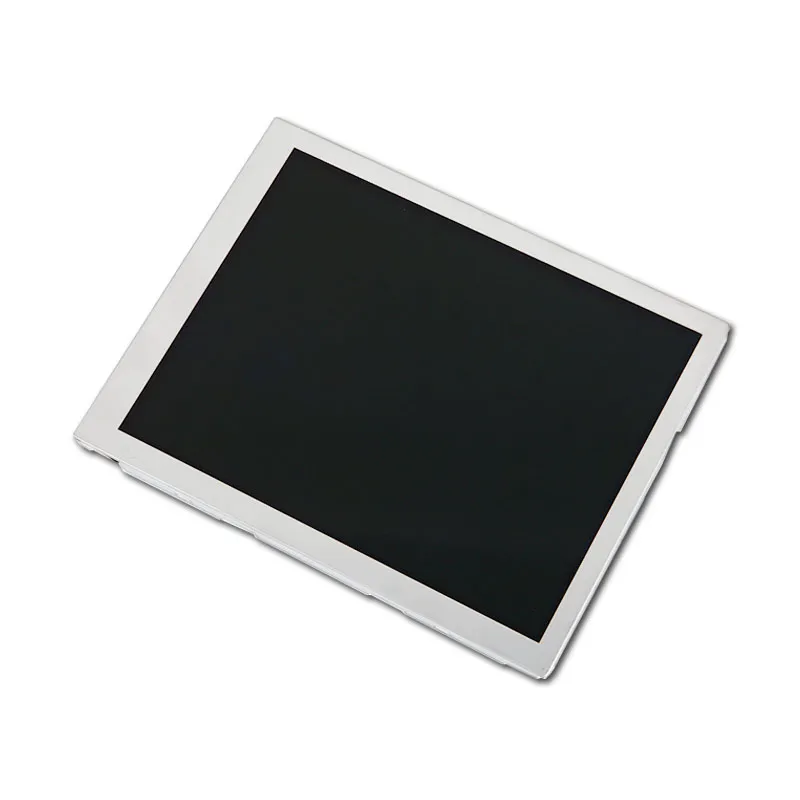

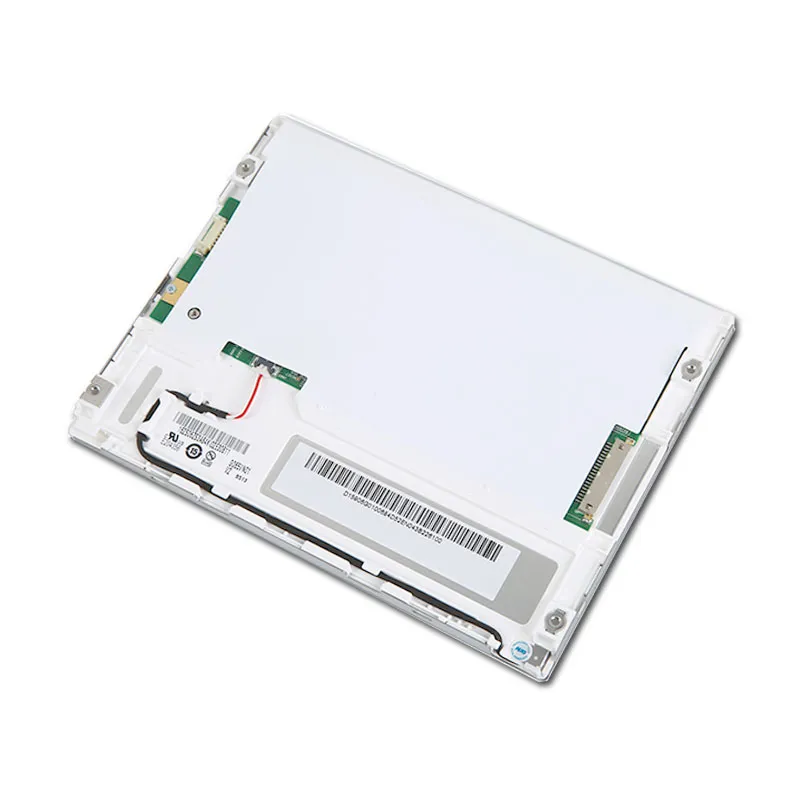

AUO G065VN01 V2 Sunlight Readable LCD Panel - 640x480, 800nits, LVDS, -30~80℃, 50K Hrs

UGS : DS50114
Taille :

Numéro de modèle

G065VN01 V2

Résolution :

Interface :

Température de fonctionnement :

-30℃~80℃

Luminosité (cd/m²) :

800

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

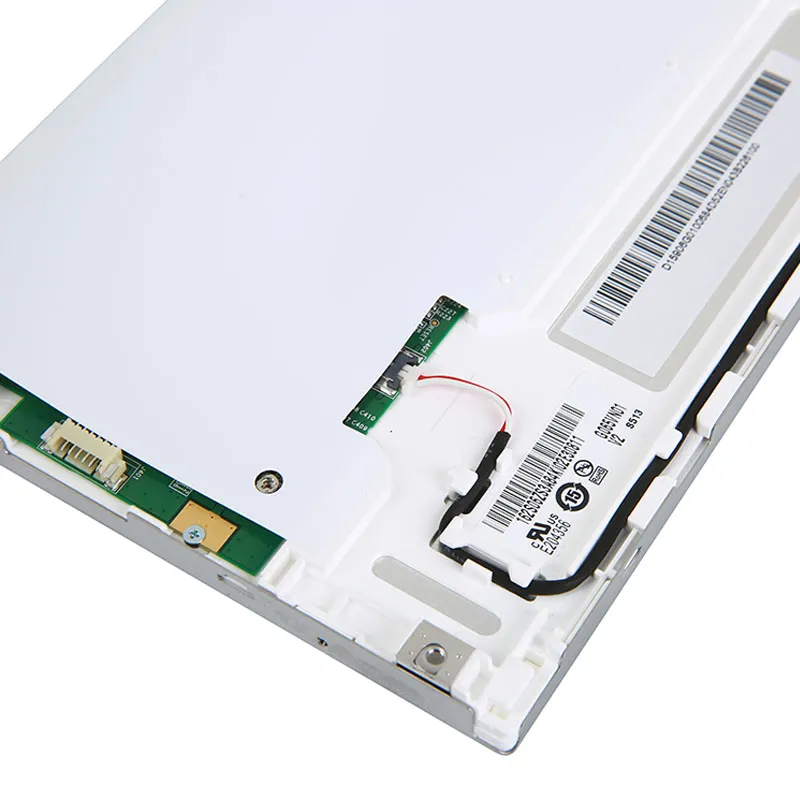

AUO G065VN01 V2 ultra high brightness display: 640x480 resolution, 800nits brightness, LVDS interface, -30~80℃ operation, 50K-hour lifespan.

Demande de tarification au volume







    Description

    AUO G065VN01 V2 Key Specifications:

    LVDS Interface: Ensures stable signal transmission for industrial control systems.
    80/80/70/70 Viewing Angles: Optimized TN panel performance for consistent readability.
    Rugged Construction: Resists vibration, dust, and moisture for outdoor/indoor use.



    Ideal Applications:

    Outdoor kiosks, heavy machinery HMI, and automotive dashboards.
    Medical devices, aviation displays, and IoT terminals.
    Energy systems and logistics equipment requiring high durability.
    With its low power consumption and compact form factor, this display is perfect for embedded solutions demanding high brightness, thermal resilience, and long-term stability.

    G065VN01 V2 Product Specifications

    Numéro de modèle G065VN01 V2
    Taille 6.5
    Résolution 640*480
    Dimension de l'ébauche 153×118×11.2
    Zone active 132.48×99.36
    Luminosité (cd/m²) 800
    Interface LVDS
    Voir la direction TN
    Température de fonctionnement -30~85
    Température de stockage -30~85
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 600:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    6.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G065VN01 V2 6.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G065VN01 V2?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 6.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G065VN01 V2?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G065VN01 V2?

    Use 640 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G065VN01 V2 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G065VN01 V2

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~80℃

    Luminosité (cd/m²) :

    800

    Prise en charge de l'écran tactile :

    Type d'affichage :
