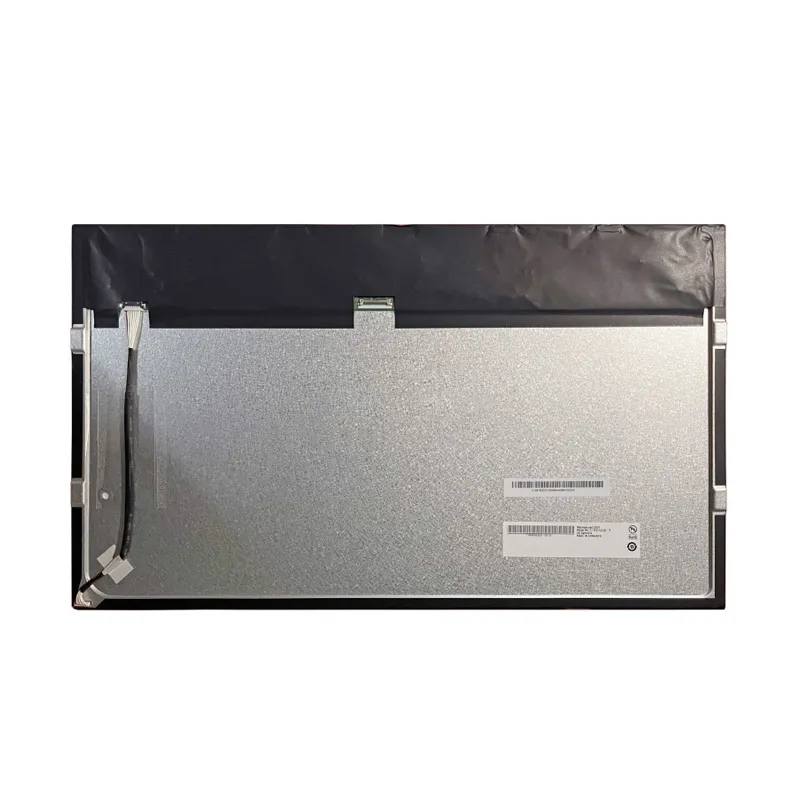

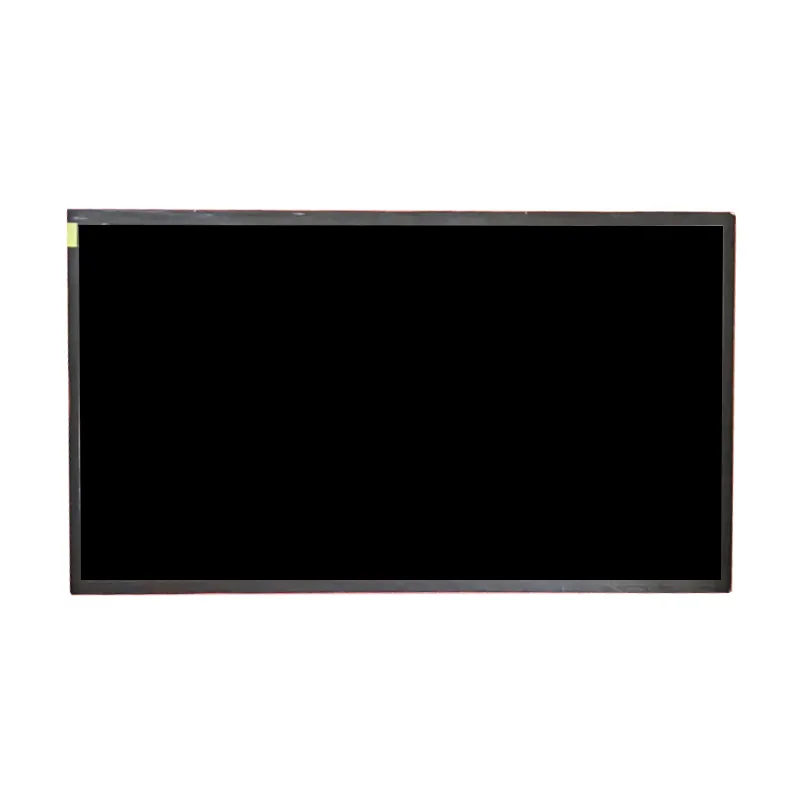

AUO G185HAN01.3 18.5"IPS Industrial Display eDP Interface,50k-Hour Lifespan

UGS : DS50098
Taille :

Numéro de modèle

G185HAN01.3

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

G185HAN01.3 18.5" AUO IPS LCD – 1920×1080, 500cd/m², -20~70°C, eDP Interface for Industrial, Medical, and Outdoor Applications.

Demande de tarification au volume







    Description

    eDP Interface Key Features:

    The AUO G185HAN01.3 is an 18.5-inch IPS LCD panel designed for high-performance applications. Featuring Full HD 1920×1080 resolution and 500cd/m² ultra-high brightness, it delivers vivid visuals even in direct sunlight. The IPS technology ensures wide 89/89/89/89 viewing angles and 1000:1 contrast for accurate color reproduction across all orientations. Built for extreme environments, it operates reliably from -20°C to 70°C and supports a 50,000-hour LED lifespan. The eDP interface enables high-speed data transmission, while the 3.3V low-power design enhances energy efficiency. With a slim 11.83mm profile and compact outline (429.3×253.06mm), it integrates seamlessly into space-sensitive installations. Industrial-grade durability and anti-glare options make it ideal for mission-critical systems requiring clarity, reliability, and wide-temperature tolerance.



    Applications & Performance:

    Engineered for demanding environments, the G185HAN01.3 excels in outdoor digital signage, medical monitors, and industrial control panels. Its 500cd/m² brightness ensures sunlight readability for transportation hubs, EV charging stations, and public information displays. The IPS panel’s color accuracy suits medical imaging and laboratory equipment, while the wide-temperature range supports deployment in freezing storage facilities or desert solar farms. The eDP interface guarantees stable performance in high-interference settings like factory automation or robotics. Its FHD resolution enhances detail for CAD/CAM systems, airport dashboards, and security surveillance. The 1000:1 contrast ratio and anti-glare coating improve visibility in bright indoor/outdoor conditions, making it a top choice for kiosks, smart agriculture, and ruggedized HMIs.

    18.5" TFT-LCD Product Specifications

    Numéro de modèle G185HAN01.3
    Taille 18.5
    Résolution 1920×1080
    Dimension de l'ébauche 429.3×253.06×11.83
    Zone active 408.96×230.04
    Luminosité (cd/m²) 500
    Interface EDP
    Voir la direction IPS
    Température de fonctionnement -20~70
    Température de stockage -20~70
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    18.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G185HAN01.3 18.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G185HAN01.3?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 18.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing eDP cable and controller with the AUO G185HAN01.3?

    For the listed eDP interface, match lane count, link rate, power sequencing and connector pinout. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G185HAN01.3?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G185HAN01.3 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.
