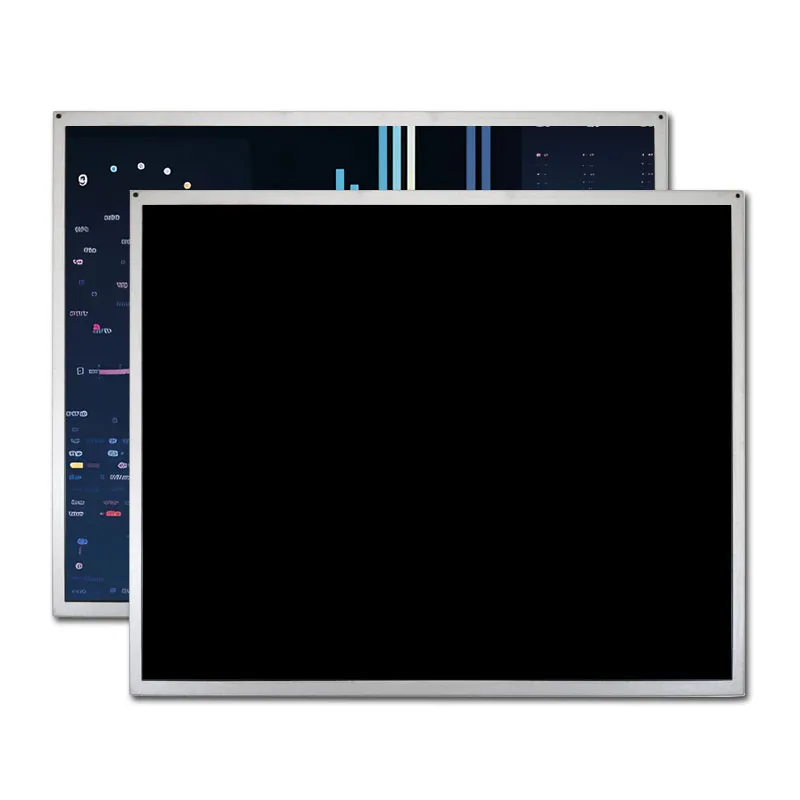

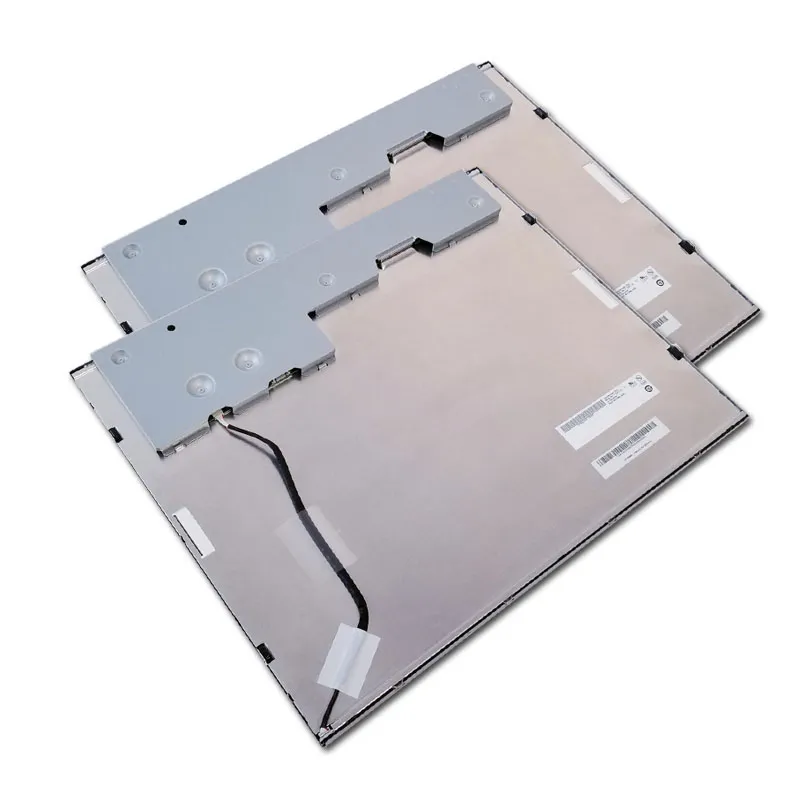

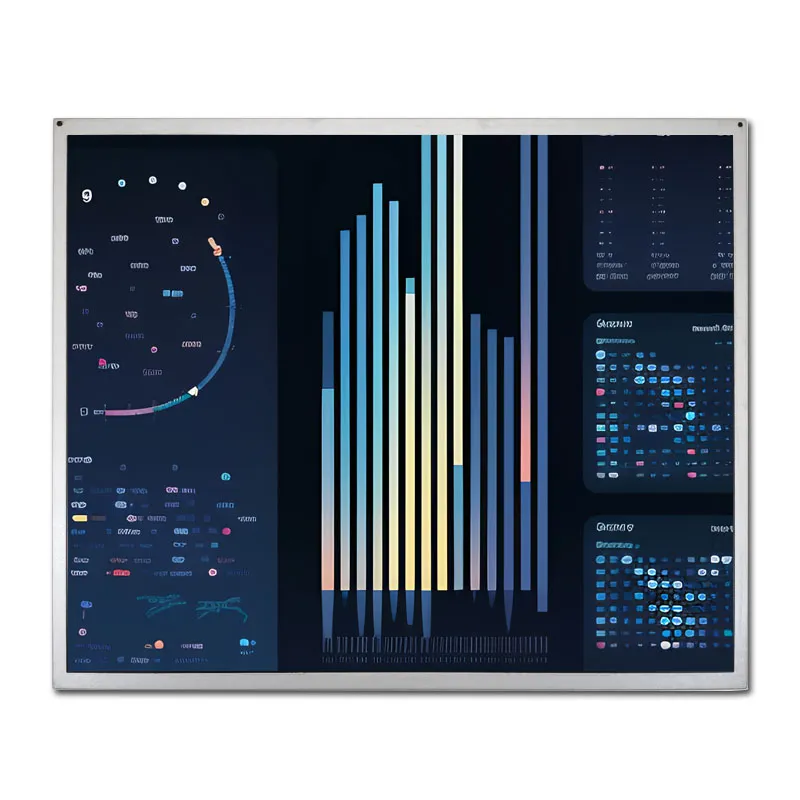

AUO G190EG01 V1 19" TN LCD – 1280×1024, 350cd/m², -20~70°C, LVDS

UGS : DS50054
Taille :

Numéro de modèle

G190EG01 V1

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

AUO G190EG01 V1 19" TN LCD – 1280×1024, 350cd/m², ultra-wide temperature (-20~70°C), LVDS interface, high-contrast industrial display.

Demande de tarification au volume







    Description

    G190EG01 V1 Key Features:

    The AUO G190EG01 V1 is a 19-inch TN LCD panel designed for extreme industrial environments. With 350 cd/m² brightness and 1000:1 contrast ratio, it delivers sharp visibility in direct sunlight or low-light conditions. Engineered for reliability, it operates seamlessly across -20°C to 70°C and withstands vibrations, dust, and humidity. The LVDS interface ensures stable signal transmission in electrically noisy settings, while the 5V power supply simplifies integration with low-voltage systems. Its 85/85/80/80 viewing angles provide consistent visuals for multi-user control panels, and the ultra-slim 18.6mm profile (396×324mm outline) enables flexible installation in space-constrained HMIs. Featuring anti-glare coating, it minimizes reflections for outdoor kiosks or high-glare factory floors. With a 50,000-hour LED lifespan, this display reduces maintenance costs in 24/7 operations. Ideal for energy, logistics, and heavy machinery sectors, it combines durability with high performance.



    Applications & Performance:

    The G190EG01 V1 excels in industrial automation, outdoor digital signage, and transportation systems. Its 350cd/m² brightness ensures readability for solar farm monitoring, mining equipment interfaces, and EV charging stations. The -20°C~70°C operating range supports deployment in Arctic warehouses, desert logistics hubs, and unheated manufacturing plants. The LVDS interface resists electromagnetic interference, making it ideal for CNC machines, robotic control panels, and power grid SCADA systems. The 1280×1024 resolution delivers crisp text/graphics for warehouse management dashboards, maritime navigation displays, and security surveillance terminals. With a 1000:1 contrast ratio, it enhances grayscale accuracy for medical imaging devices or airport baggage handling systems. Applications include rugged HMIs for construction vehicles, military field equipment, and automated production lines. Its TN panel’s fast response time minimizes motion blur in dynamic environments like assembly line tracking or fleet management consoles.

    19.0" TN LCD Product Specifications

    Numéro de modèle G190EG01 V1
    Taille 19.0
    Résolution 1280*1024
    Dimension de l'ébauche 396*324*18.6
    Zone active 376.32×301.056
    Luminosité (cd/m²) 350
    Interface LVDS
    Voir la direction TN
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 5.0V
    Type d'affichage LCD couleur

    19.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G190EG01 V1 19-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G190EG01 V1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 19-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G190EG01 V1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G190EG01 V1 compare with the BOE DV190E0M-N11?

    Both catalog listings show 19 inches, 1280 × 1024 and LVDS. The catalog lists −20 °C to +70 °C for the AUO panel and 0 °C to +50 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE DV190E0M-N11

    Is the AUO G190EG01 V1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G190EG01 V1

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    350

    Prise en charge de l'écran tactile :

    Type d'affichage :
