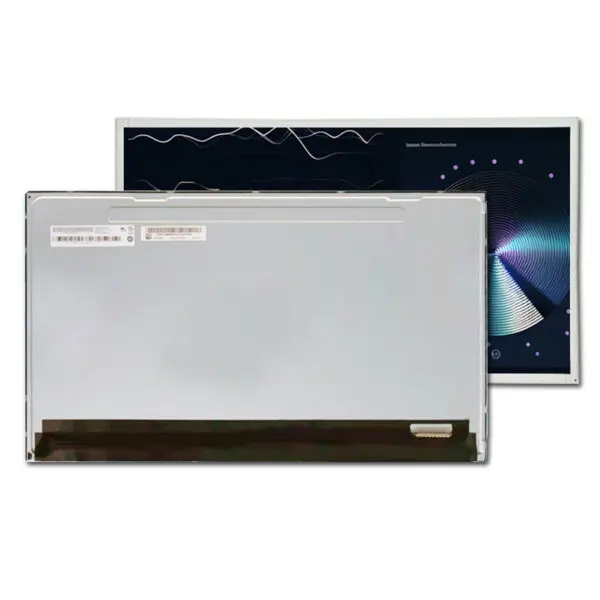

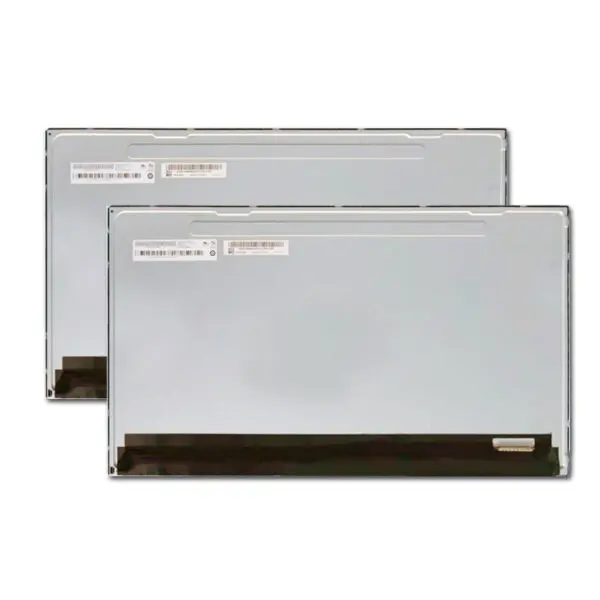

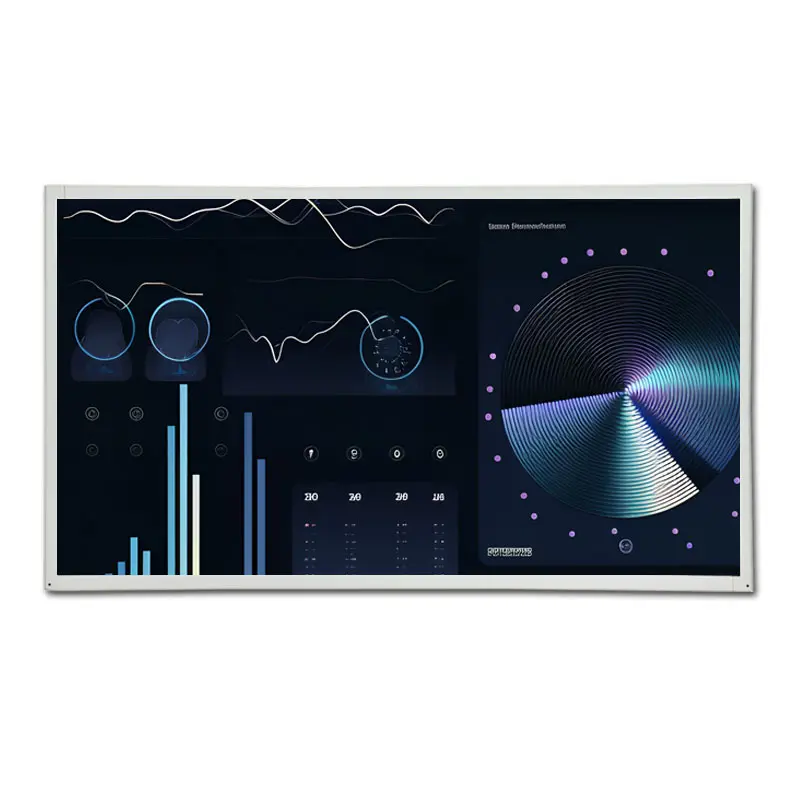

AUO G215HAN01.3 21.5" IPS Ultra-wide Viewing Angle Display 250cd/m², -0~60°C, LVDS

UGS : DS50057
Taille :

Numéro de modèle

G215HAN01.3

Résolution :

Interface :

Température de fonctionnement :

-0℃~60℃

Luminosité (cd/m²) :

250

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

AUO G215HAN01.3 21.5" IPS LCD – 1920×1080, 250cd/m², wide-temperature (-0~60°C), LVDS interface, ultra-wide viewing angle industrial display.

Demande de tarification au volume







    Description

    G215HAN01.3 Key Features:

    The AUO G215HAN01.3 is a 21.5-inch IPS LCD designed for energy-efficient industrial and commercial applications. Featuring Full HD 1920×1080 resolution and 250 cd/m² brightness, it delivers crisp visuals while reducing power consumption for indoor control systems. The IPS technology ensures 89°/89°/89°/89° ultra-wide viewing angles, perfect for multi-user environments like control rooms or public kiosks. Built for reliability, it operates across -0°C to 60°C and offers a 50,000-hour LED lifespan for minimal downtime in 24/7 operations. The LVDS interface guarantees stable signal transmission in EMI-heavy industrial settings, while the 5V power supply enables seamless integration with low-voltage IoT devices. With 1000:1 contrast ratio and anti-glare coating, it excels in grayscale accuracy for medical imaging or precision monitoring. Its ultra-slim 11mm profile (497.6×292.2mm outline) allows flexible installation in space-constrained HMIs or slim digital signage.



    Applications & Performance:

    Ideal for industrial automation, healthcare, and retail, the G215HAN01.3 shines in indoor control panels, medical diagnostic screens, and interactive kiosks. The 250cd/m² brightness suits low-to-moderate light environments like pharmaceutical cleanrooms, warehouse management dashboards, and smart retail terminals. Its -0°C~60°C range supports deployment in cold chain logistics monitoring, factory automation systems, and climate-controlled labs. The IPS panel’s wide viewing angles ensure consistent color for airport check-in displays, hospital patient monitors, and collaborative engineering workstations. The Full HD resolution delivers sharp detail for security surveillance centers, CAD/CAM design tools, and SCADA systems. The LVDS interface resists interference in CNC machines, robotic arms, and power substations. Applications also include transportation hubs, military command consoles, and energy management systems. With its low power draw and slim design, it’s perfect for retrofitting legacy equipment or IoT-enabled smart factories.

    21.5" TN LCD Product Specifications

    Numéro de modèle G215HAN01.3
    Taille 21.5
    Résolution 1920*1080
    Dimension de l'ébauche 497.6×292.2×11
    Zone active 476.064×267.786
    Luminosité (cd/m²) 250
    Interface LVDS
    Voir la direction IPS
    Température de fonctionnement -0~60
    Température de stockage -20~60
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 5.0V
    Type d'affichage LCD couleur

    21.5" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G215HAN01.3 21.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G215HAN01.3?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 21.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G215HAN01.3?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G215HAN01.3 compare with the BOE HR215WU1-120?

    Both catalog listings show 21.5 inches, 1920 × 1080 and LVDS. The catalog lists 0 °C to +60 °C for the AUO panel and 0 °C to +50 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE HR215WU1-120

    Is the AUO G215HAN01.3 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G215HAN01.3

    Résolution :

    Interface :

    Température de fonctionnement :

    -0℃~60℃

    Luminosité (cd/m²) :

    250

    Prise en charge de l'écran tactile :

    Type d'affichage :
