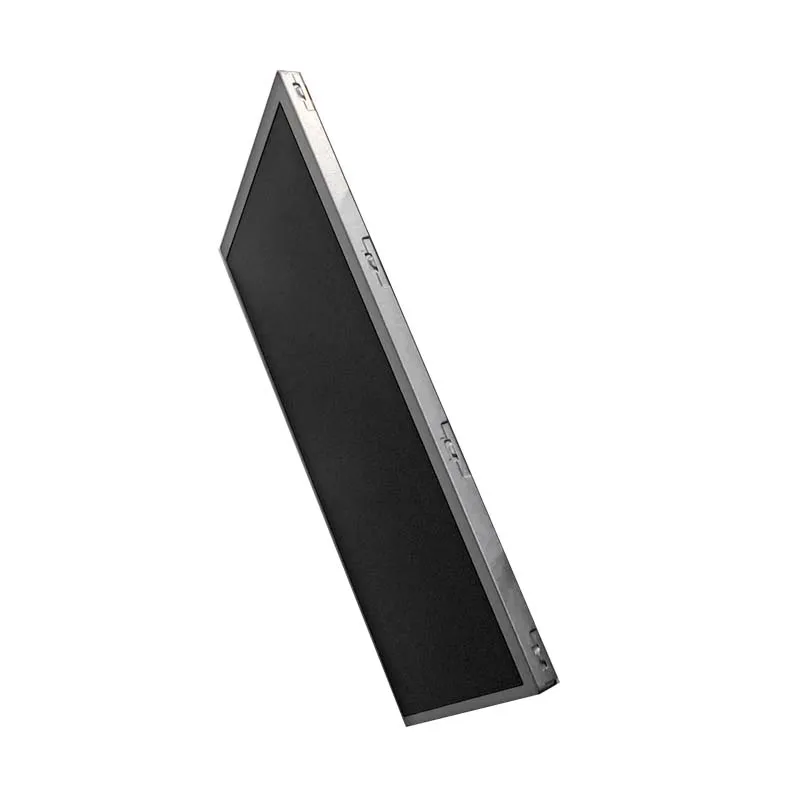

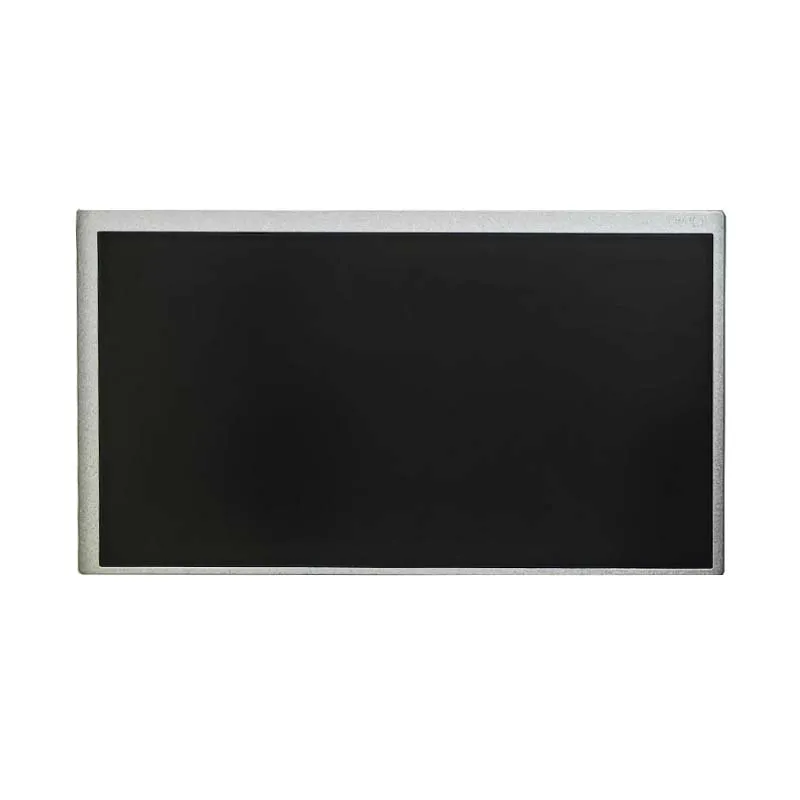

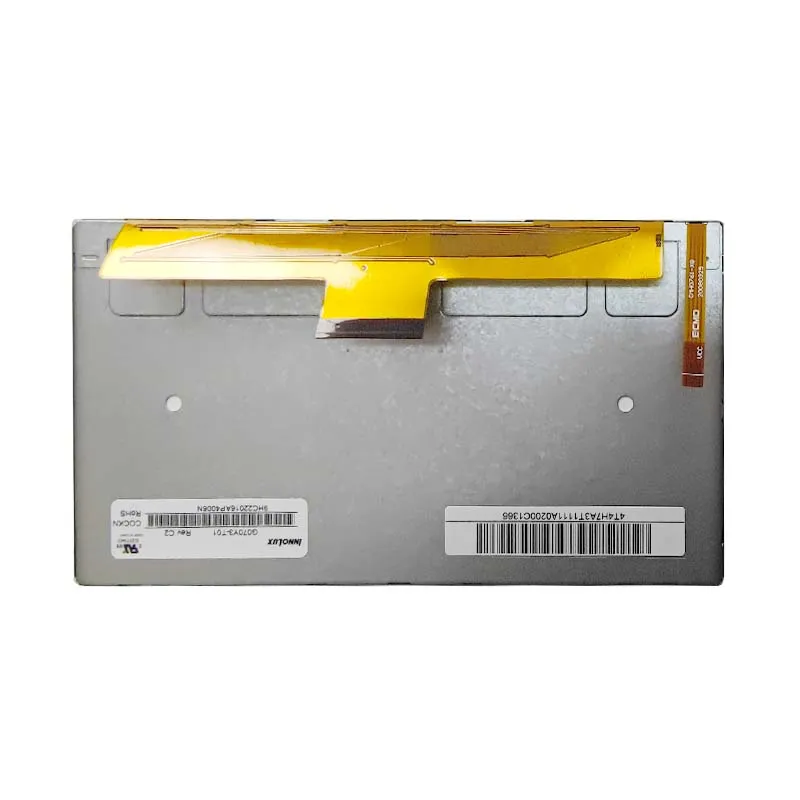

G070Y3-T01 7 inch TN LCD Panel - 800×480 Resolution, 600cd/m² Brightness, -30°C~85°C Operating Temperature

UGS : DS50227
Taille :

Numéro de modèle

G070Y3-T01

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

Innolux G070Y3-T01 7 inch TTL Panel 600nits Sunlight-Readable LCD: -30°C~85°C Toughness for Industrial Displays.

Demande de tarification au volume







    Description

    G070Y3-T01 General Desription

    The Innolux G070Y3-T01 is a 7-inch color LCD panel designed for demanding environments. With a high brightness of 600cd/m² and 650:1 contrast ratio, it ensures clear visibility even in direct sunlight. Its TN technology supports a 70/70/60/60 viewing angle, while the TTL interface guarantees stable signal transmission. Built to endure extreme conditions, it operates seamlessly from -30°C to 85°C and withstands storage temperatures down to -40°C. The robust 30,000-hour LED lifespan and compact outline (168×94×6.65mm) make it ideal for space-constrained industrial systems. The 3.3V power supply minimizes energy consumption, perfect for battery-powered devices.



    Application & Performanc

    This panel excels in industrial automation, outdoor kiosks, and vehicle-mounted systems. Its wide temperature tolerance ensures reliability in harsh climates, from freezing logistics hubs to scorching solar farms. The 800×480 resolution delivers sharp graphics for HMIs, medical monitors, and portable test equipment. Anti-glare performance suits outdoor digital signage, while TTL compatibility simplifies integration with legacy control boards. With a slim 6.65mm profile, it fits seamlessly into compact machinery, agricultural sensors, and marine navigation tools. The absence of touchscreen support reduces complexity for fixed-interface applications, prioritizing durability over interactive features.

    7.0" Product Specifications

    Taille de la diagonale 7.0 inch
    Nombre de pixels 800×480
    Luminance 600
    Module Size 168×94×6.65
    Zone active 156×82.8
    Direction de visualisation TN
    View Angle(U/D/R/L) 70/70/60/60
    Interface TTL
    Rapport de contraste 650:1
    Température de fonctionnement -30~85℃
    Température de stockage -40~90℃
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3/10.5/18/-7V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G070Y3-T01 7-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G070Y3-T01?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 7-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing TTL cable and controller with the Innolux G070Y3-T01?

    For the listed TTL interface, match signal levels, timing and every connector pin before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux G070Y3-T01?

    Use 800 × 480 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux G070Y3-T01 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G070Y3-T01

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~ 85℃

    Prise en charge de l'écran tactile :

    Type d'affichage :
