G185HAN01.102 AU Optronics TFT Display 1920x1080

UGS : DS50335
Taille :

Numéro de modèle

G185HAN01.102

Résolution :

Interface :

Température de fonctionnement :

-30℃~80℃

Luminosité (cd/m²) :

500

Prise en charge de l'écran tactile :

Type d'affichage :

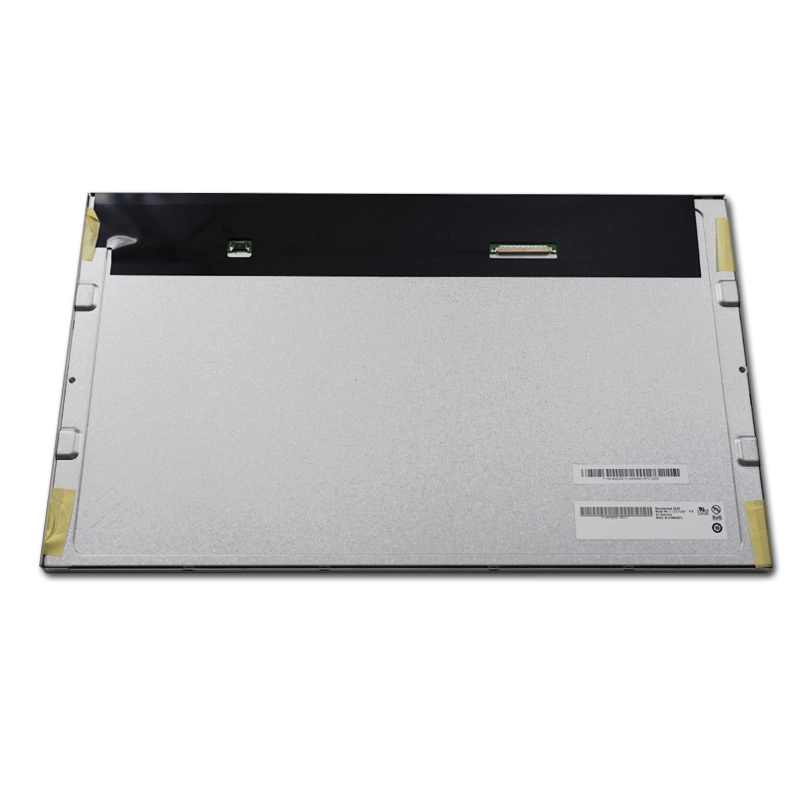

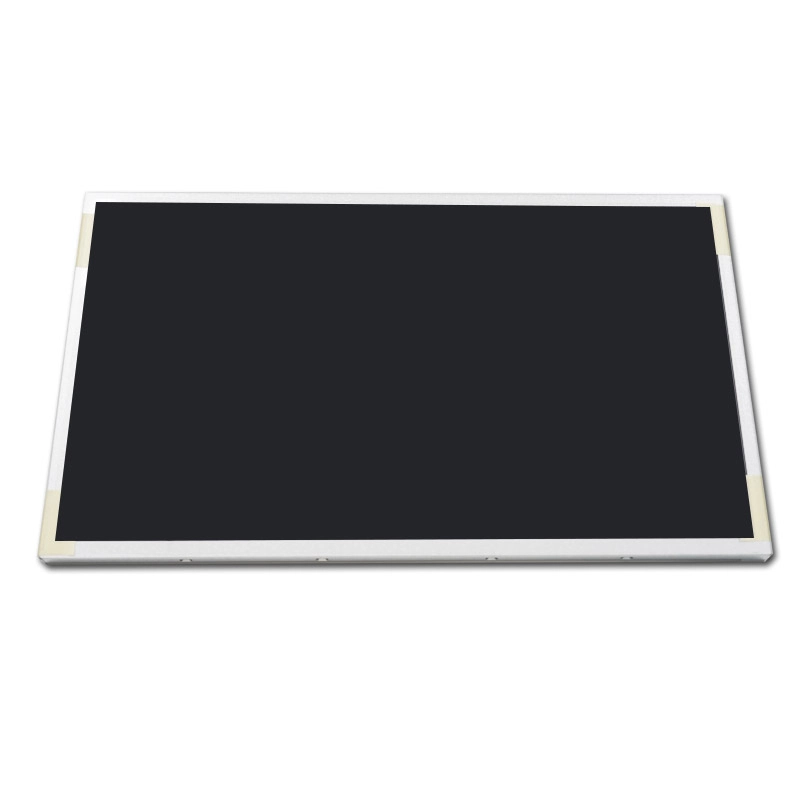

G185HAN01.102 AU Optronics TFT Display, wide temperature -30~80 ℃, 18.5 inch, 1920X1080, alternative to G185HAN01.0, Original- A grade, custom touch screen, HDMI board

Demande de tarification au volume







    Description

    G185HAN01.102 Screen Description

    G185HAN01.102 is an 18.5-inch LCD display with a resolution of 1920x1080. It features a wide operating temperature range of -30~80℃ and excellent stability, making it suitable for high-environmental-requirement application scenarios such as industrial, marine, and aviation fields.

    A 15-year LCD display manufacturer offers you professional services. Based on your application scenarios and budget requirements, we help you find the ideal LCD display. Our R&D team is available 24/7 to answer questions and resolve issues, providing one-stop complete solutions for LCD displays, touch screens, driver boards, and more.

    18.5" TFT Display Specifications

    Numéro de modèle G185HAN01.102
    Taille 18.5
    Résolution 1920*1080
    Dimension de l'ébauche 430.4*254.6*12.5
    Zone active 408.96*230.04
    Luminosité (cd/m²) 500
    Interface LVDS
    Voir la direction IPS
    Température de fonctionnement -30~80
    Température de stockage -30~80
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile NON
    Rapport de contraste 1000:1
    Alimentation électrique 5.0V
    Type d'affichage LCD couleur

    18.5" TFT Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    AUO G185HAN01.102 18.5-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G185HAN01.102?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 18.5-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing cable and controller with the AUO G185HAN01.102?

    Send us your host model so we can check the required interface, pinout and electrical limits against the exact product documentation. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the AUO G185HAN01.102?

    Use 1920 × 1080 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the AUO G185HAN01.102 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G185HAN01.102

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~80℃

    Luminosité (cd/m²) :

    500

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
