High Brightness 6.86 inch Bar LCD Display

UGS : DS20057
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

1100

Prise en charge de l'écran tactile :

Type d'affichage :

6.86 inch lcd display manufacturer  480*1280 Pixels  Serial MIPI Interface  30 pin FFC connection  Customized touch screen

Demande de tarification au volume







    Description

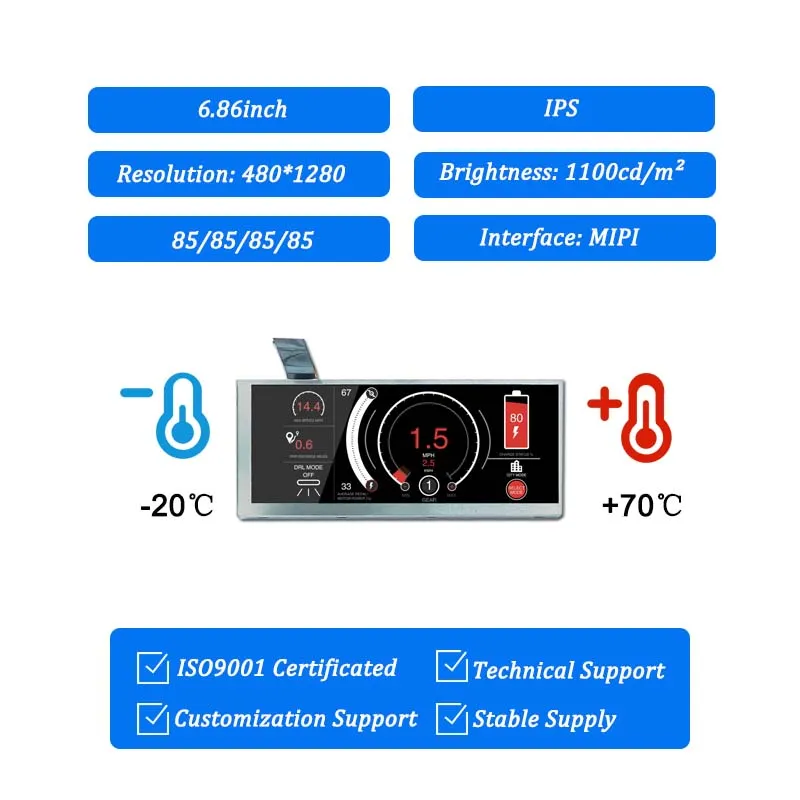

    6.86" Bar TFT Displays Features

    This 6.68 inch Bar LCD Display features a 480x1280 resolution with an impressive brightness of 1100 cd/m² and a contrast ratio of 1500, this display offers exceptional clarity, even in bright environments. Its wide viewing angles of 85° in all directions ensure consistent image quality from any perspective. The MIPI 30 interface enables fast and efficient data transmission, perfect for high-resolution display needs.

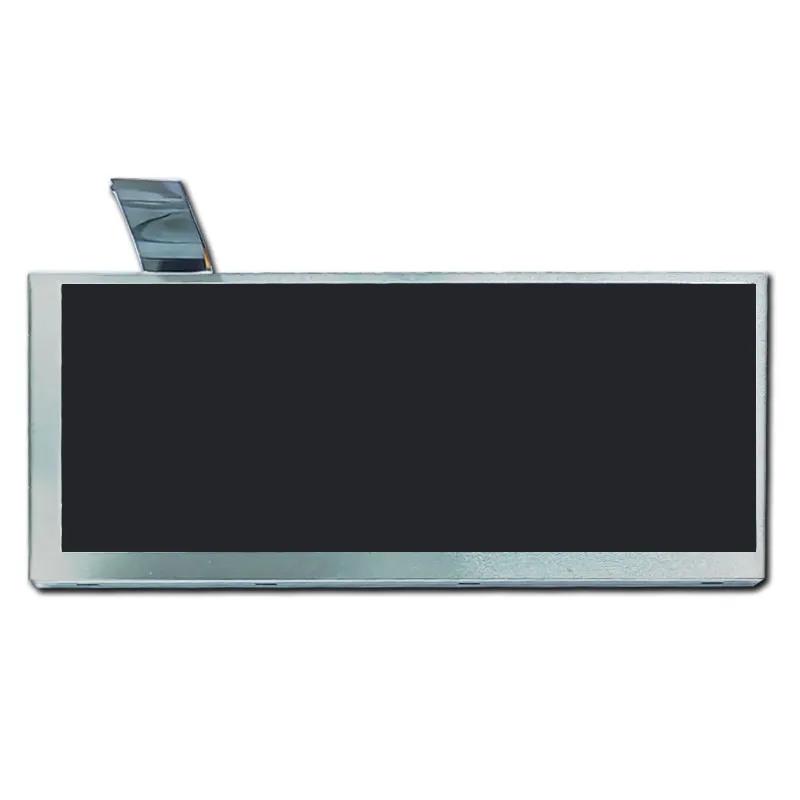

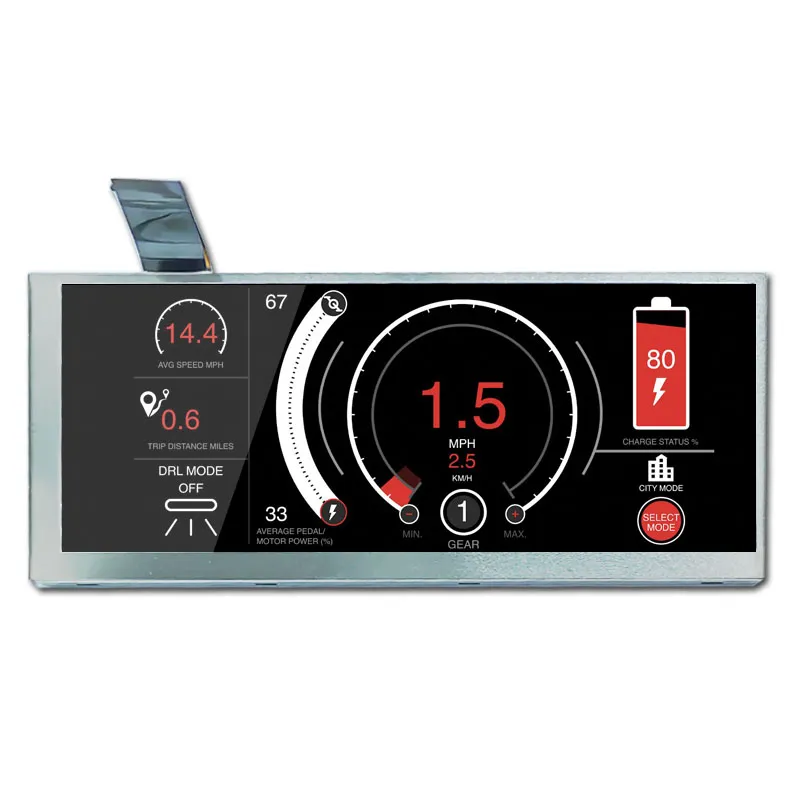

    6.86" Bar TFT LCD with High Brightness

    The 6.86-inch TFT display stands out with its high brightness of 1100 cd/m² (nits), making it suitable for environments where ambient light is strong, such as outdoor settings or bright indoor environments. This level of brightness ensures that the display remains highly readable even under direct sunlight, reducing glare and maintaining clarity.

    6.86" TFT-LCD Product Specifications

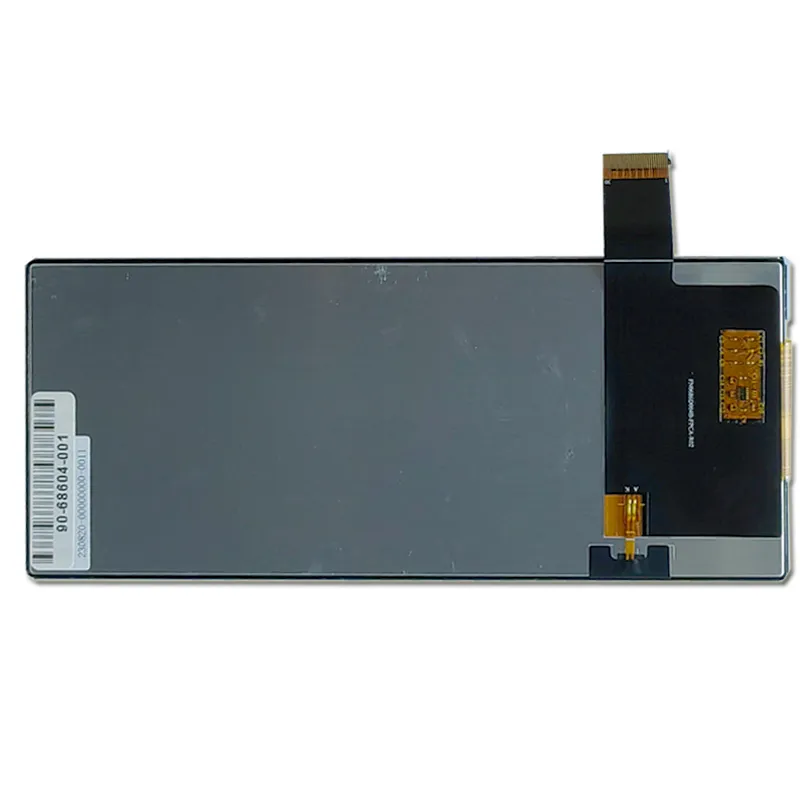

    Numéro de modèle  90-68604-001
    Taille 6.86
    Résolution 480*1280
    Dimension de l'ébauche 72.42*173.97*6.5
    Zone active 60.192*160.512
    Luminosité (cd/m²) 1100
    Interface MIPI
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 30000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1500:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    6.86" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    6.86-Inch 480 × 1280 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 6.86-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 480 × 1280 pixel layout. If you mount the long edge horizontally, try a 1280 × 480 content layout and verify rotation on the intended host. Keep the panel’s native timing separate from the artwork orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 1100 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    1100

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
