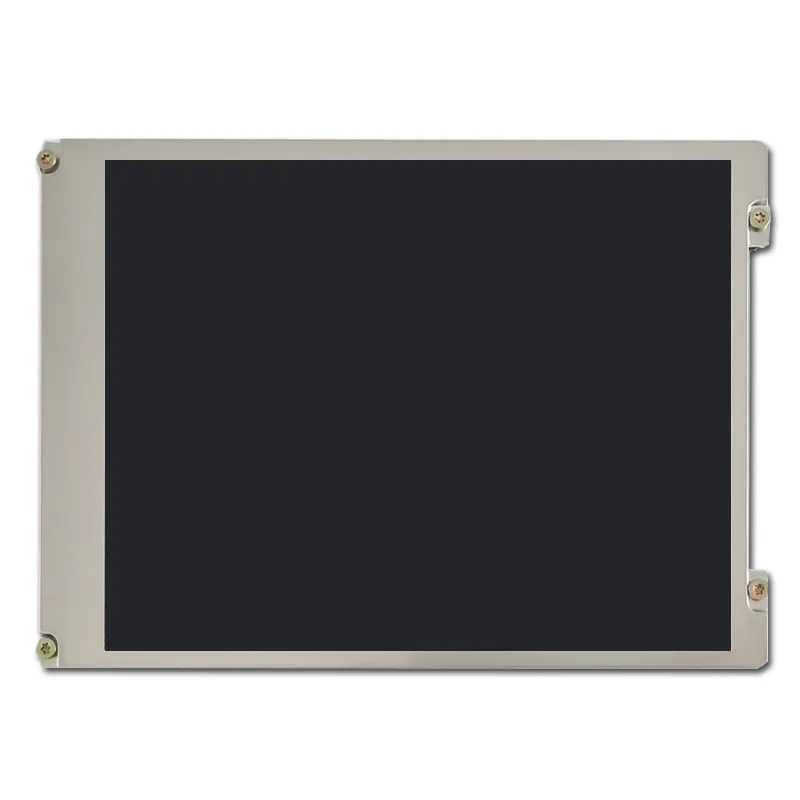

Innolux G121ACE-LH1 12.1" IPS LCD | 450nits, LVDS, -30~85°C, 50K Hrs

UGS : DS50194
Taille :

Numéro de modèle

G121ACE-LH1

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Luminosité (cd/m²) :

450

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

12.1" g121ace-lh1 IPS industrial display, 450nits brightness, LVDS interface, -30°C to 85°C operation, 50K-hour lifespan for harsh environments

Demande de tarification au volume







    Description

    Innolux G121ACE-LH1 General Description

    The Innolux G121ACE-LH1 is a robust 12.1-inch IPS LCD engineered for demanding industrial applications. With an 800×600 resolution and 450nits high brightness, it delivers crisp visuals even in direct sunlight or low-light conditions. Built to endure extreme environments, it operates reliably across a wide temperature range (-30°C to 85°C) and offers a 50,000-hour lifespan, ensuring minimal downtime for critical systems.

    LVDS Interface: Stable signal transmission in high-interference settings.
    IPS Technology: 178° wide viewing angles with consistent color accuracy.
    Industrial Durability: Resists shocks, vibrations, and temperature extremes.

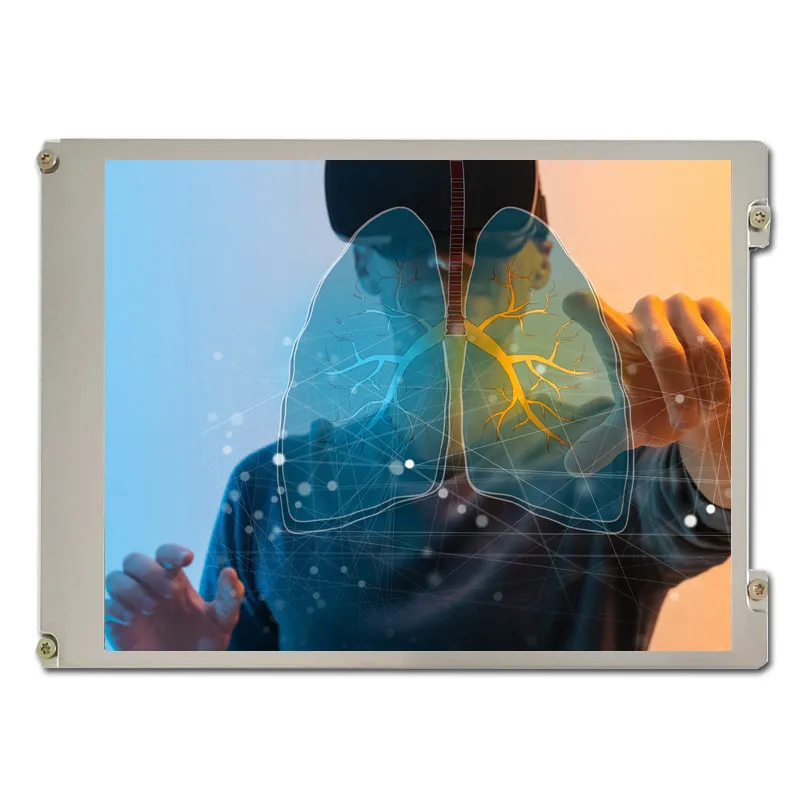

    G121ACE-LH1 LVDS LCD Display Application

    Factory automation, outdoor digital signage, and medical equipment.
    Customizable for OEM/ODM projects with optional anti-glare coatings or EMI shielding.

    12.1" TFT-LCD Product Specifications

    Numéro de modèle G121ACE-LH1
    Taille 12.1
    Résolution 800(RGB)×600
    Dimension de l'ébauche 260.5×204×8.4
    Zone active 246×184.5
    Luminosité (cd/m²) 450
    Interface LVDS
    Voir la direction IPS
    Température de fonctionnement -30~85
    Température de stockage -30~85
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    12.1" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G121ACE-LH1 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G121ACE-LH1?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G121ACE-LH1?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G121ACE-LH1 compare with the AUO G121SN01 V403?

    Both catalog listings show 12.1 inches, 800 × 600 and LVDS. The catalog lists 450 cd/m² for the Innolux panel and 500 cd/m² for the AUO panel. Compare readability through the same cover at the intended viewing angle. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G121SN01 V403

    Is the Innolux G121ACE-LH1 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G121ACE-LH1

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~ 85℃

    Luminosité (cd/m²) :

    450

    Prise en charge de l'écran tactile :

    Type d'affichage :
