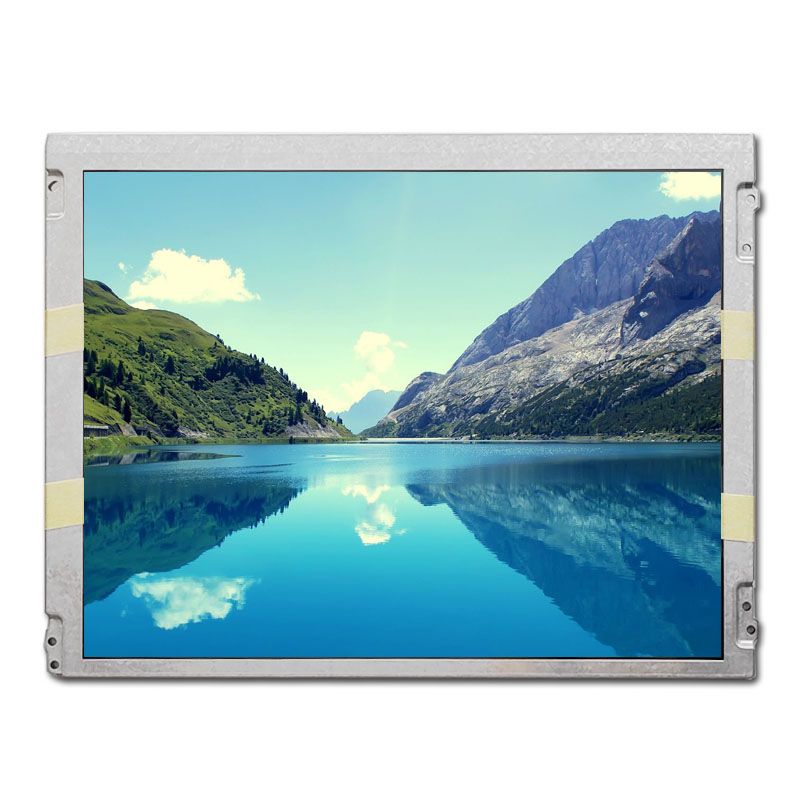

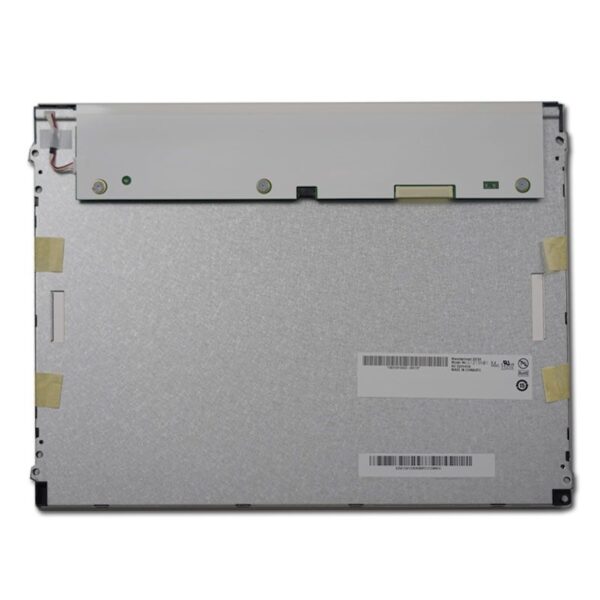

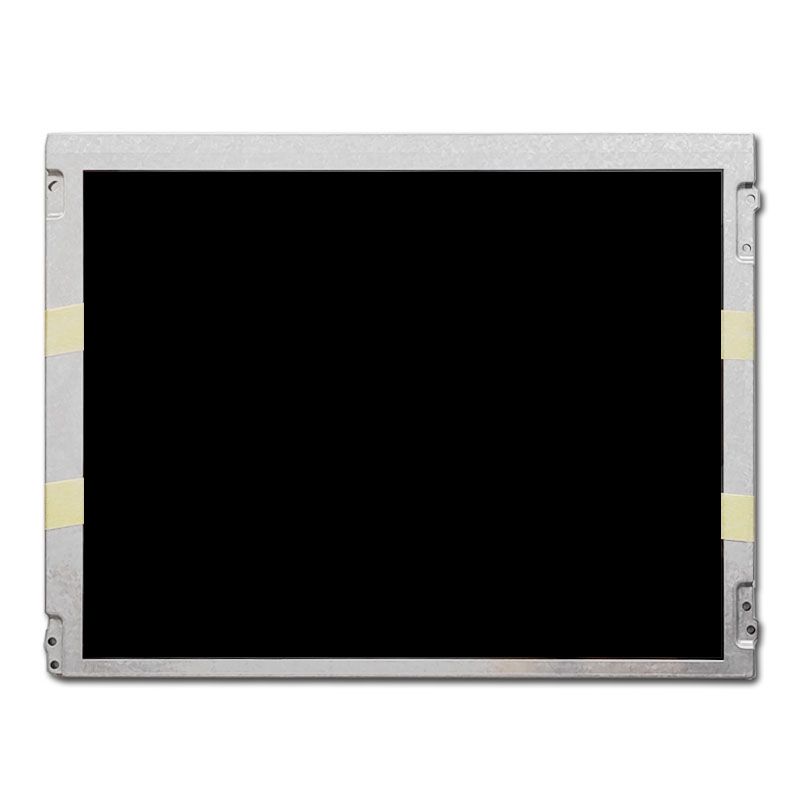

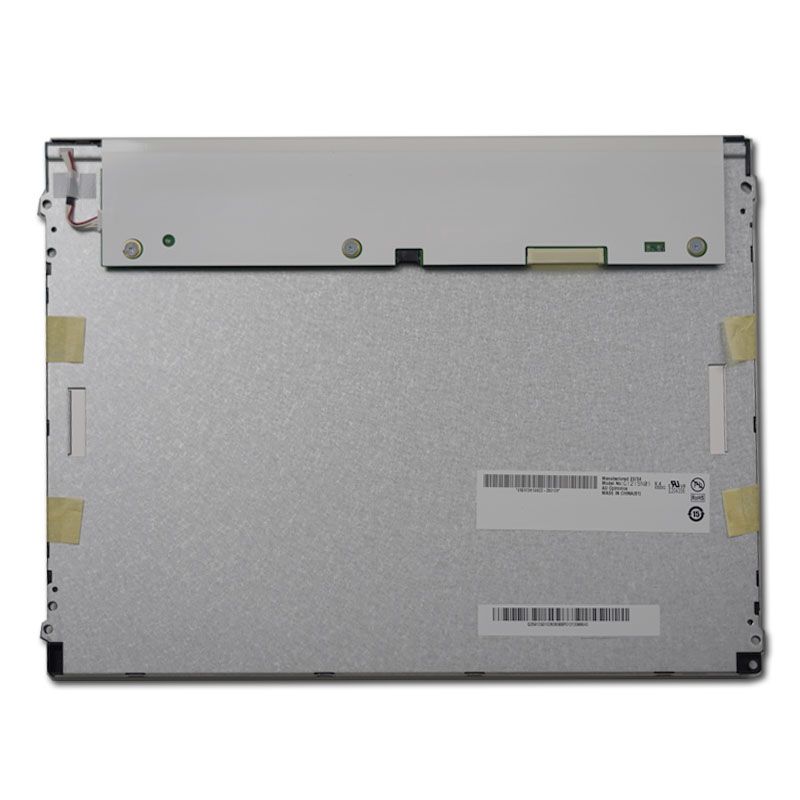

12.1” G121SN01 V403 AUO Panel 800*600 Luminance 500 cd/m²

SKU: DS50023

Size:	12.1 inch
Resolution:	800*600
Interface:	LVDS
Brightness(cd/m²):	500
Operating Temperature:	-30℃~ 85℃
Touchscreen Support:	NO
Display Type:	Color LCD

Resources: G121SN01 V403

G121SN01 V403 from Brand AUO, Resolution 800*600, Brightness 500cd/m² Operating Temperature from -30~85℃, LVDS 20 pin, Stable supply, Original A grade quality

Description

AUO G121SN01 V403 Key Features

The AUO G121SN01 V403 is a versatile high-quality display featuring a resolution of 800 x 600 pixels and a brightness level of 500 cd/m², ensuring clear and vibrant visuals suitable for both indoor and outdoor environments. Built to operate efficiently in extreme conditions, it supports an operating temperature range of -30 to 85°C, making it reliable for demanding applications. The display utilizes an LVDS 20-pin interface for easy integration into various systems. Known for its stable supply and original A-grade quality, the G121SN01 V403 guarantees durability and long-lasting performance, making it ideal for industrial applications, automotive displays, and consumer electronics.

AUO G121SN01 V403 Applications

The G121SN01 V403 TFT LCD display module is highly versatile, suitable for a range of applications. It can be customized with specialized backlight configurations for specific needs, such as industrial control panels, and can be equipped with an anti-glare coating to enhance visibility in bright environments, making it ideal for outdoor use. Additionally, the display can offer a wide color gamut, ensuring vibrant color reproduction for applications requiring accurate color representation, such as graphic design and video editing. Its robust design makes it well-suited for integration into industrial control panels, HMI systems, and other automation applications, providing a durable and reliable display solution.

12.1" TFT-LCD Product Specifications

Model Number	G121SN01 V403
Size	12.1
Resolution	800*600
Outline Dimension	2792099.5
Active Area	246*184.5
Brightness(cd/m²)	500
Interface	LVDS
View Direction	TN
Operating Temperature	-30~85
Storage Temperature	-30~85
LED Lifetime	50000
Touchscreen Support	Without
Contrast Ratio	700:1
Power Supply	3.3V
Display Type	Color LCD

12.1" TFT LCD Custom Solutions

Optimize Your Cable Solutions

Adjust the length, position, and pinout of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

PCB Modifications

Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

Elevate User Experience with Touch Screen Technology

Enhance your user experience with either capacitive or resistive touch screen technology. We will customize the glass thickness and shape of the touch panel to ensure a perfect fit for your design requirements.

Custom Cover Glass

Equip your display with a custom-cut cover glass to boost durability and performance. Select from various thicknesses and opt for optical bonding to provide protection against moisture and debris, ensuring a long-lasting and reliable solution.

DS50023 FAQ

Can I use DS50023 if my original label has a different model suffix?

Use G121SN01 V403 as the listed panel reference, then compare the full part number and revision on the label. Send us photos of the old label and connector side. Compare the mounting holes, thickness, connector location and visible opening on both drawings before ordering.

Can I keep my existing LVDS cable and controller with DS50023?

For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

Will replacing my current panel with DS50023 require a change to the equipment software?

Try your service menus and startup graphics on a 800 × 600 canvas before approving the replacement. Compare the actual native timing and display orientation with the old module. Price any cable, firmware and mounting changes before committing to a substitute.

How do I check whether DS50023 will look right behind the original cover?

Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Test cold boot, restart, brightness control and a full diagnostic image. Use the listed −30 °C to +85 °C operating range to plan cold starts and hot running tests, with temperature measured at the panel. Check that the cable clears the frame with the equipment closed.

What should I order if my equipment uses touch with the LCD that DS50023 would replace?

The listed configuration has no touch. If your design needs it, confirm the overlay, controller and cable as separate items in the quote. Give us the equipment model, approved panel and touch revisions where applicable, quantity and required date. Ask for the quoted revision and how a substitution would be handled.

Additional information

Size:	12.1 inch
Resolution:	800*600
Interface:	LVDS
Brightness(cd/m²):	500
Operating Temperature:	-30℃~ 85℃
Touchscreen Support:	NO
Display Type:	Color LCD
