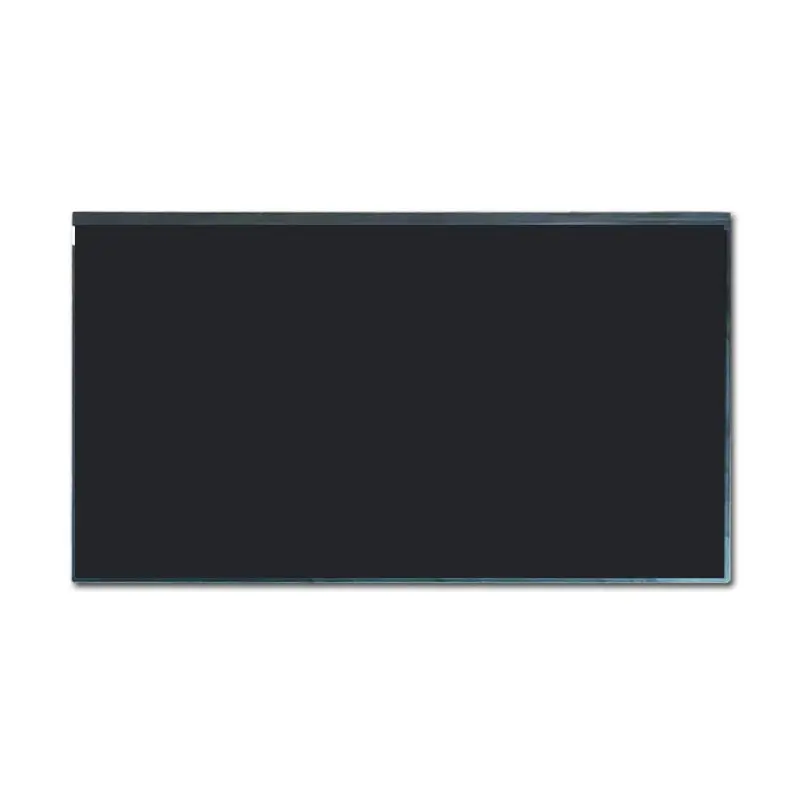

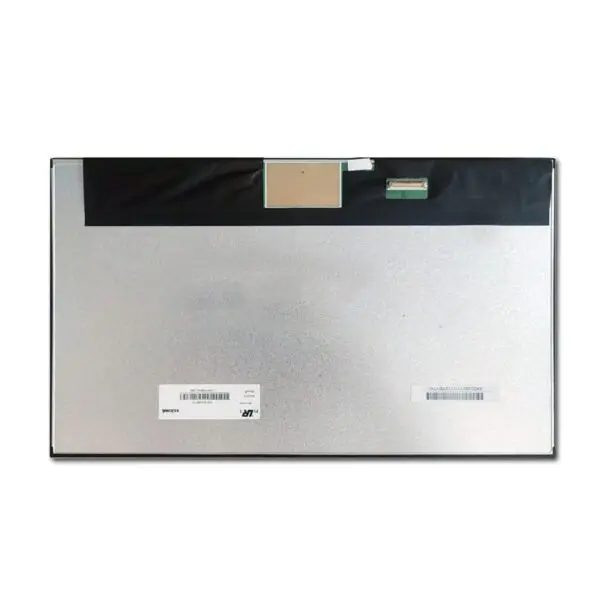

Innolux G156HCE-L01 15.6" FHD IPS Panel - 1920x1080, 450nits, -30~85°C, LVDS

UGS : DS50202
Taille :

Numéro de modèle

G156HCE-L01

Résolution :

Interface :

Température de fonctionnement :

-30℃~ 85℃

Luminosité (cd/m²) :

450

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

Ultra-Bright FHD Precision! Innolux G156HCE-L01: 15.6" IPS, 1920x1080, 450nits, -30°C~85°C, LVDS

Demande de tarification au volume







    Description

    Innolux G156HCE-L01 General Description

    The Innolux g156hce-l01 is a 15.6-inch FHD IPS industrial display engineered for high-performance applications requiring crystal-clear visuals and extreme reliability. Featuring 1920 x 1080 resolution and 450 nits brightness, this panel delivers stunning detail and 178° wide viewing angles, perfect for critical tasks in harsh environments.
    Built to excel in the most challenging conditions, it operates seamlessly across an expanded temperature range of -30°C to 85°C and offers a robust 50,000-hour lifespan – ideal for 24/7 industrial and outdoor use. The LVDS interface ensures stable, low-noise signal transmission for seamless integration with industrial PCs, embedded systems, and legacy equipment.
    Key Features:
    ✅ High-Definition Clarity: Full HD resolution for precision monitoring in medical imaging or control rooms.
    ✅ Sunlight Readiness: 450 nits brightness with optional anti-reflective coating for outdoor/kiosk use.
    ✅ Thermal Resilience: Withstands extreme cold/heat for oil/gas, military, or desert deployments.
    ✅ IPS Consistency: True color accuracy across wide angles, even in fluctuating temperatures.



    G156HCE-L01 FHD IPS Panel Application

    Factory automation HMI s & robotic control panels
    Aviation/railway onboard diagnostic systems
    Solar farm monitoring or smart grid terminals
    High-brightness digital signage & outdoor kiosks
    Customize with capacitive touch, IP65 sealing, or EMI shielding to meet stringent industry standards.

    15.6" TFT-LCD Product Specifications

    Numéro de modèle G156HCE-L01
    Taille 15.6
    Résolution 1920(RGB)×1080
    Dimension de l'ébauche 363.8×215.98×9.6
    Zone active 344.16×193.59
    Luminosité (cd/m²) 450
    Interface LVDS
    Voir la direction IPS
    Température de fonctionnement -30~85
    Température de stockage -40~90
    Durée de vie des LED 50000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 800:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    15.6" TFT LCD Solutions sur mesure

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux G156HCE-L01 15.6-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux G156HCE-L01?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15.6-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Innolux G156HCE-L01?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the Innolux G156HCE-L01 compare with the AUO G156HAN02.1?

    Both catalog listings show 15.6 inches, 1920 × 1080 and LVDS. The catalog lists −30 °C to +85 °C for the Innolux panel and −20 °C to +70 °C for the AUO panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare AUO G156HAN02.1

    Is the Innolux G156HCE-L01 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    G156HCE-L01

    Résolution :

    Interface :

    Température de fonctionnement :

    -30℃~ 85℃

    Luminosité (cd/m²) :

    450

    Prise en charge de l'écran tactile :

    Type d'affichage :
