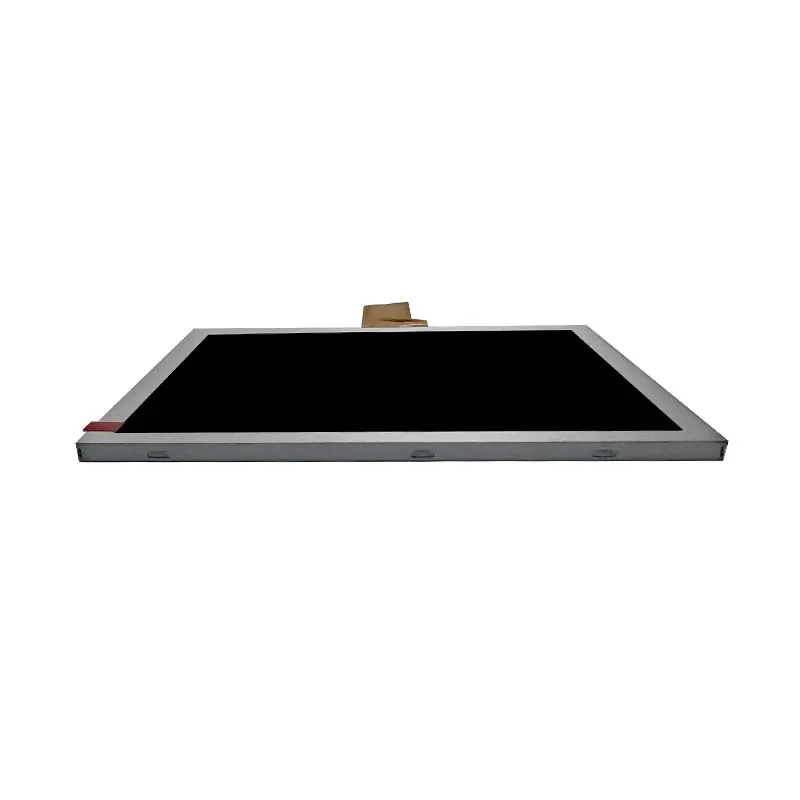

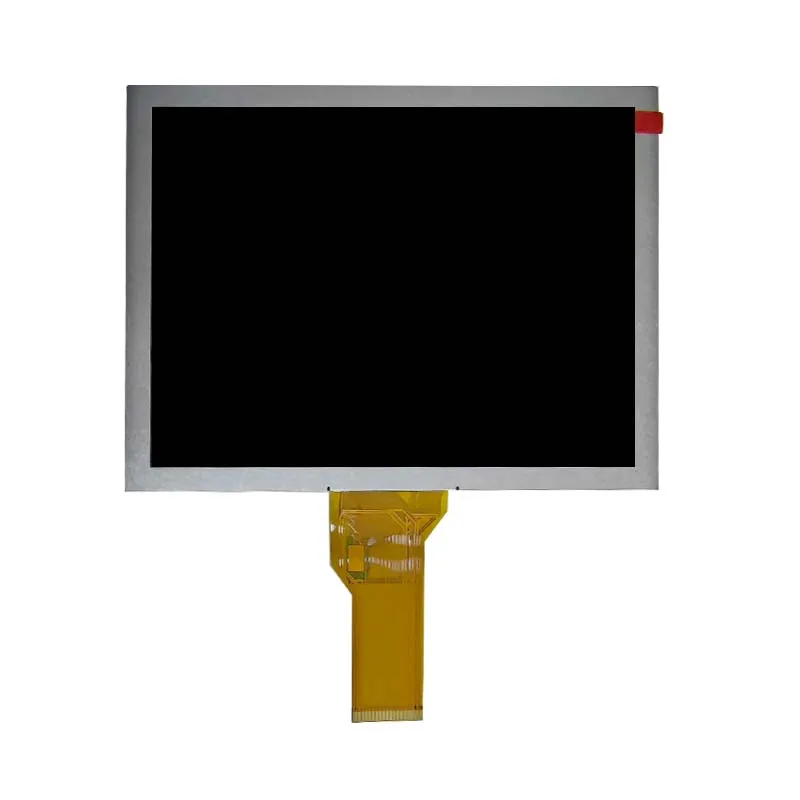

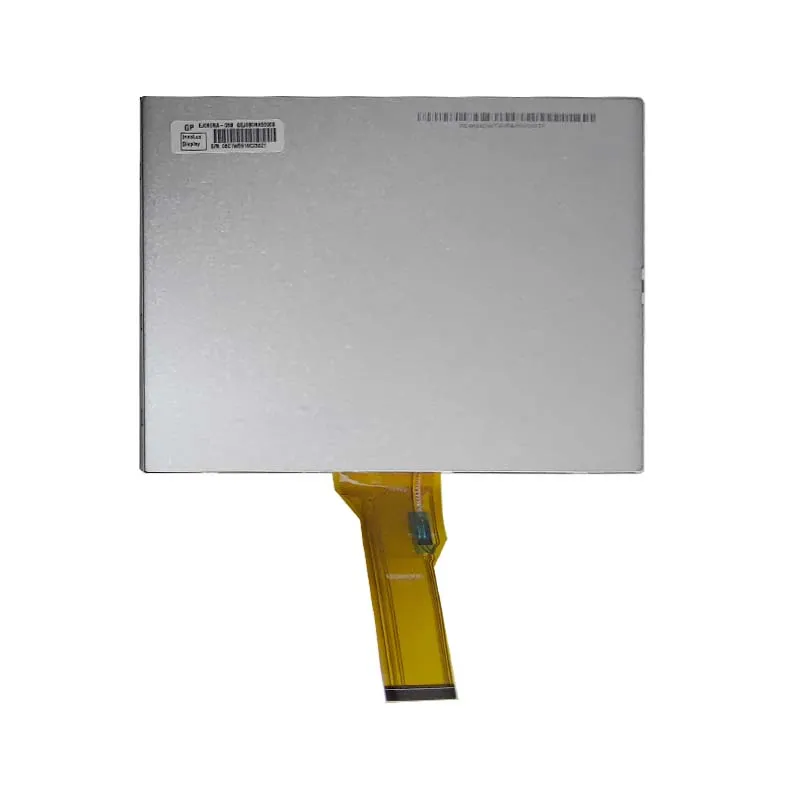

EJ080NA-05B 8 inch 800×600 TN LCD , 300cd/m² Brightness, High-Contrast TN Panel

UGS : DS50217
Taille :

Numéro de modèle

J080NA-05B

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

Innolux EJ080NA-05B Outdoor-Ready LCD: 300cd/m² Anti-Glare TN Panel for Harsh Environment Kiosks & Logistics Terminals.

Demande de tarification au volume







    Description

    EJ080NA-05B General Desription

    The Innolux EJ080NA-05B combines industrial durability with crisp 800×600 resolution, featuring a 1000:1 contrast ratio for sharp monochrome text/graphic displays. Its 300cd/m² brightness ensures visibility in sunlit environments, while the TN panel's 70/70/50/70 viewing angles optimize fixed-position readability. Built for harsh conditions, it operates from -20°C to 70°C with 20,000-hour LED lifespan, minimizing maintenance in 24/7 applications. The RGB interface ensures stable signal transmission in EMI-heavy factories, supported by wide voltage input (3.3V~16V) for flexible power integration. With 5.9mm slim profile (183×141mm outline), it retrofits legacy equipment while resisting vibration in logistics sorting systems or agricultural machinery dashboards.



    Application & Performanc

    Ideal for cost-sensitive industrial upgrades, this display excels in warehouse inventory terminals, outdoor self-service ticket machines, and CNC machine status panels. The 300cd/m² brightness cuts through glare in solar-powered parking meters or desert mining equipment, while 1000:1 contrast enhances QR code scanning reliability in postal sorting hubs. Its -20°C cold resistance ensures functionality in refrigerated storage monitoring systems, and 70°C tolerance suits foundry HMIs. The TN panel’s directional view prevents unintended visibility in secure facilities, while 20K-hour lifespan reduces downtime in subway fare gates or roadside EV chargers. Compatible with legacy PLC systems needing RGB connectivity.

    8.0" Product Specifications

    Taille de la diagonale 8.0 inch
    Nombre de pixels 800×600
    Luminance 300
    Module Size 183×141×5.9
    Zone active 162×121.5
    Direction de visualisation TN
    View Angle(U/D/R/L) 70/70/50/70
    Interface RVB
    Rapport de contraste 1000:1
    Température de fonctionnement -20~70℃
    Température de stockage -30~80℃
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Sans
    Alimentation électrique 3.3/10.4/16.0/-7.0V
    Type d'affichage Color TFT

    Innolux LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Innolux EJ080NA-05B 8-Inch LCD Replacement FAQ

    How do I confirm that I need the Innolux EJ080NA-05B?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 8-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing RGB cable and controller with the Innolux EJ080NA-05B?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Innolux EJ080NA-05B?

    Use 800 × 600 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Innolux EJ080NA-05B still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    J080NA-05B

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Prise en charge de l'écran tactile :

    Type d'affichage :
