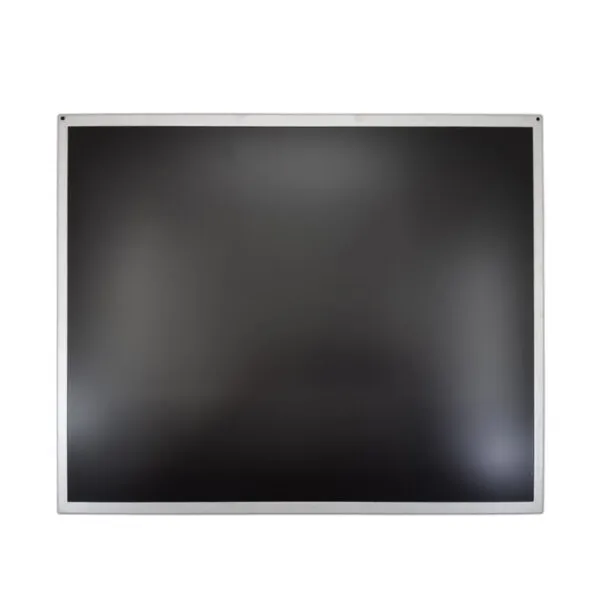

IVO M101GWT9 R4 10.1 inch High Brightness Industrial LCD Display LVDS Interface Wide Temperature Range

UGS : DS50260
Taille :

Numéro de modèle

M101GWT9

Résolution :

Interface :

Température de fonctionnement :

-0℃~60℃

Prise en charge de l'écran tactile :

Type d'affichage :

Ressources :

IVO m101gwt9 r4 Rugged 10.1 inch LVDS LCD for Industrial Harsh Environments 350cd/m² Brightness Industrial Display.

Demande de tarification au volume







    Description

    M101GWT9 R4 General Desription

    The IVO M101GWT9 R4 is a 10.1-inch color LCD display engineered for demanding environments. With a resolution of 1024×600 and 350 cd/m² brightness, it ensures crisp visibility even under direct light. Its TN panel with 500:1 contrast ratio delivers reliable performance, while the LVDS interface guarantees stable signal transmission. Designed for industrial resilience, it operates seamlessly in temperatures from -0°C to 50°C and supports a 30,000-hour LED lifespan. The ultra-slim 5.2mm profile and 3.3V power supply make it ideal for space-constrained installations. Without touchscreen support, it prioritizes durability and cost-efficiency for fixed applications.



    Application & Performanc

    Perfect for industrial automation, POS systems, and embedded control panels, the M101GWT9 R4 excels in harsh conditions like factories, warehouses, and outdoor kiosks. Its wide operating temperature range ensures reliability in fluctuating climates, while the high brightness combats glare in sunlit areas. The LVDS interface minimizes electromagnetic interference, critical for precision machinery. Use it in medical devices, transportation dashboards, or IoT terminals where consistent performance and longevity are paramount.

    10.1" Product Specifications

    Taille de la diagonale 10,1 pouces
    Nombre de pixels 1024×600
    Luminance 350
    Module Size 235×143×5.2
    Zone active 222.72×125.28
    Direction de visualisation TN
    View Angle(U/D/R/L) 70/70/70/70
    Interface LVDS
    Rapport de contraste 500:1
    Température de fonctionnement -0 ~ 50 °C
    Température de stockage -20 ~ 60 °C
    Durée de vie des LED 30000
    Alimentation électrique 3.3V
    Prise en charge de l'écran tactile Sans
    Type d'affichage Color TFT

    IVO LCD Display Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    IVO M101GWT9 R4 10.1-Inch LCD Replacement FAQ

    How do I confirm that I need the IVO M101GWT9 R4?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the IVO M101GWT9 R4?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the IVO M101GWT9 R4?

    Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the IVO M101GWT9 R4 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    M101GWT9

    Résolution :

    Interface :

    Température de fonctionnement :

    -0℃~60℃

    Prise en charge de l'écran tactile :

    Type d'affichage :
