LCD Display Screen 7 inch 1024*600 IPS Tech

UGS : DS20062
Taille :

Résolution :

Interface :

Température de fonctionnement :

-20℃~70℃

Luminosité (cd/m²) :

350

Prise en charge de l'écran tactile :

Type d'affichage :

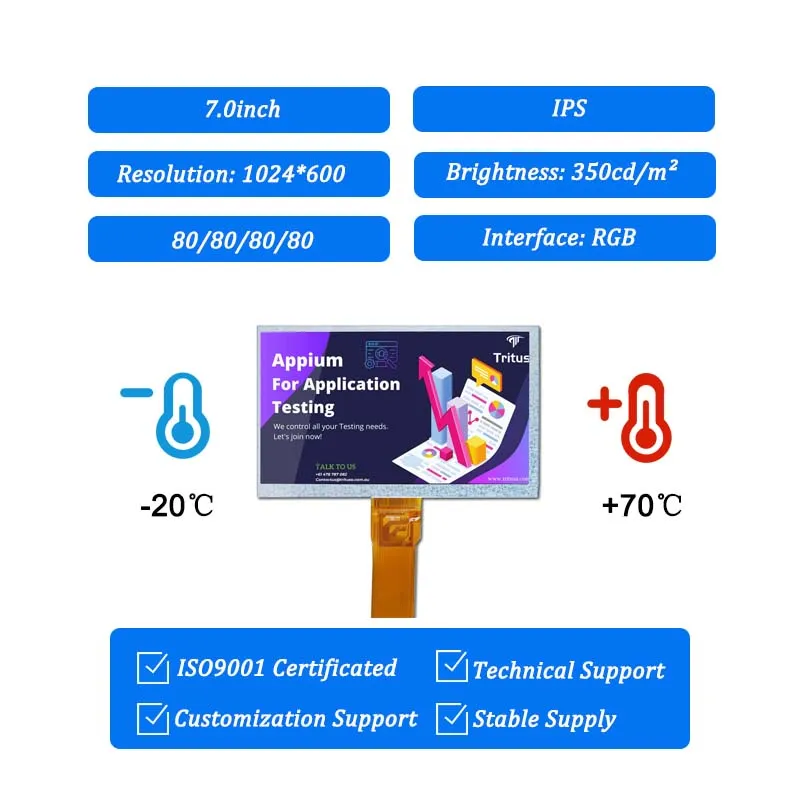

7 inch tft display  1024*600 Pixels  Serial RGB Interface  50 pin FFC connection  Customized touch screen

Demande de tarification au volume







    Description

    7" TFT Display Features

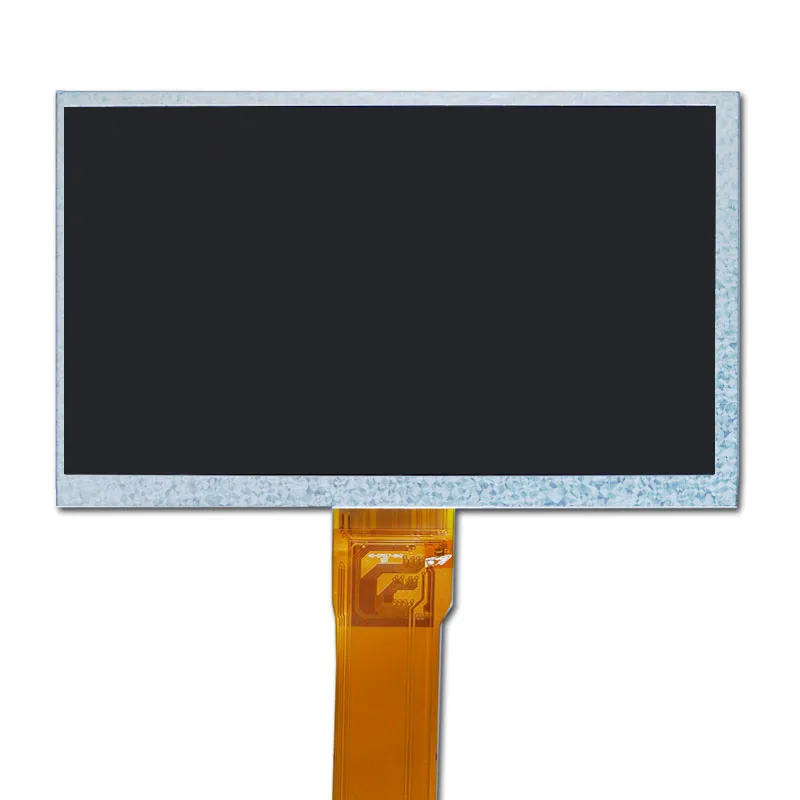

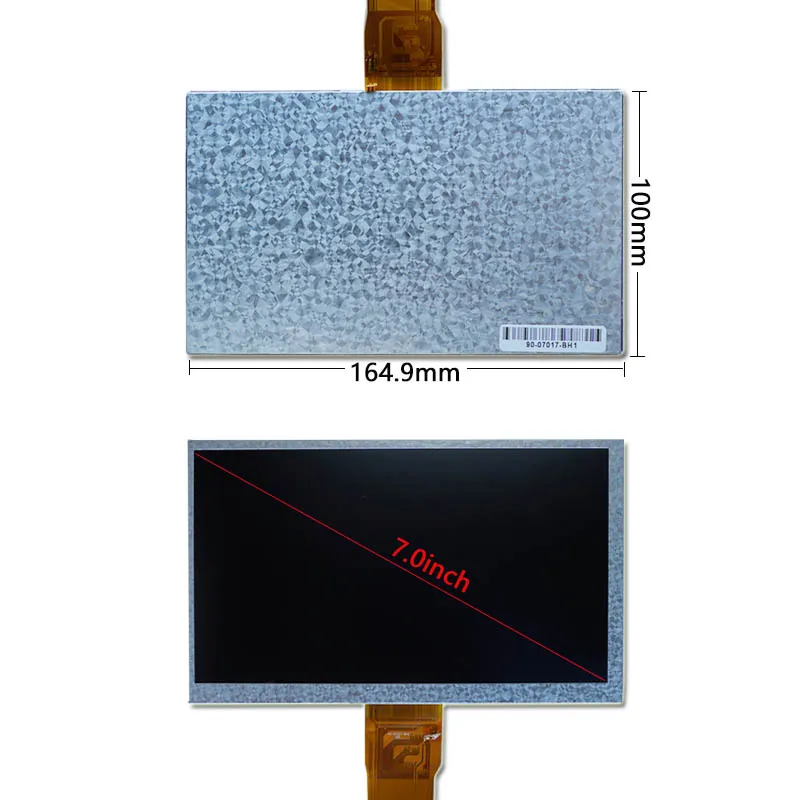

    The 7 inch LCD Display Screen features a resolution of 1024x600 pixels, making it ideal for various applications, from consumer electronics to industrial displays. It has an active area of 154.21mm x 85.92mm and compact dimensions of 164.9mm x 100mm x 3.4mm, allowing for easy integration into device designs. Operating within a temperature range of -20°C to 70°C and utilizing a 50-pin RGB interface, this display module is versatile and reliable for applications such as tablets, control panels, and medical devices.

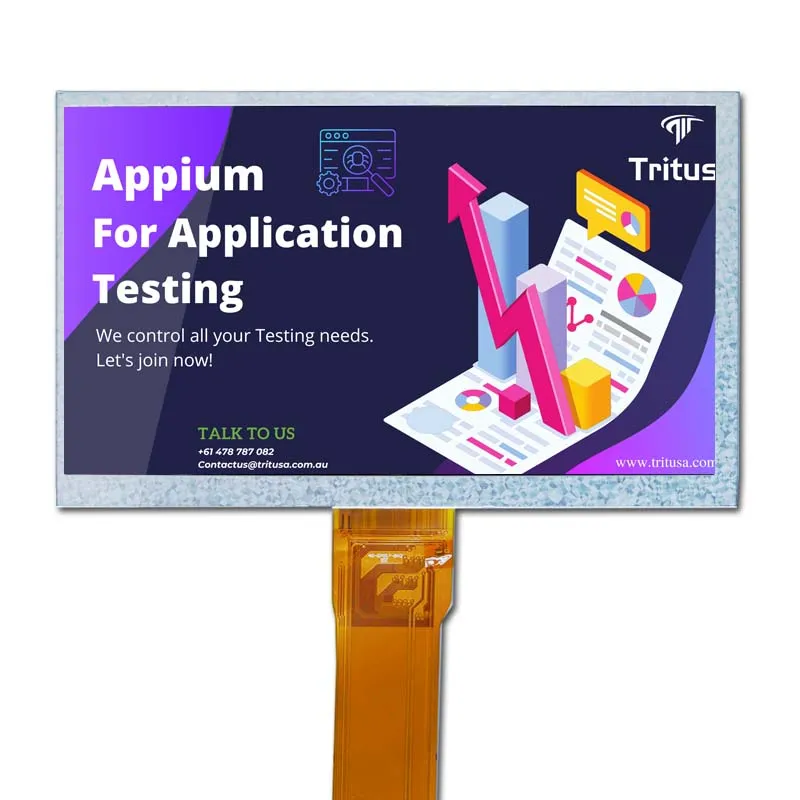

    7" RGB TFT LCD Display

    RGB interface TFT-LCD display module offers excellent ease of integration and performance. It is compatible with many modern microcontrollers and processors, simplifying the incorporation of the display into various embedded systems while typically requiring minimal additional components for signal conversion and processing. This straightforward design enhances overall efficiency. Additionally, the RGB interface supports high refresh rates, ensuring smooth transitions and dynamic content display, which is essential for applications like video playback and gaming. It also allows for a wide color depth, enriching the visual experience with vibrant and diverse images.

    7.0" TFT-LCD Product Specifications

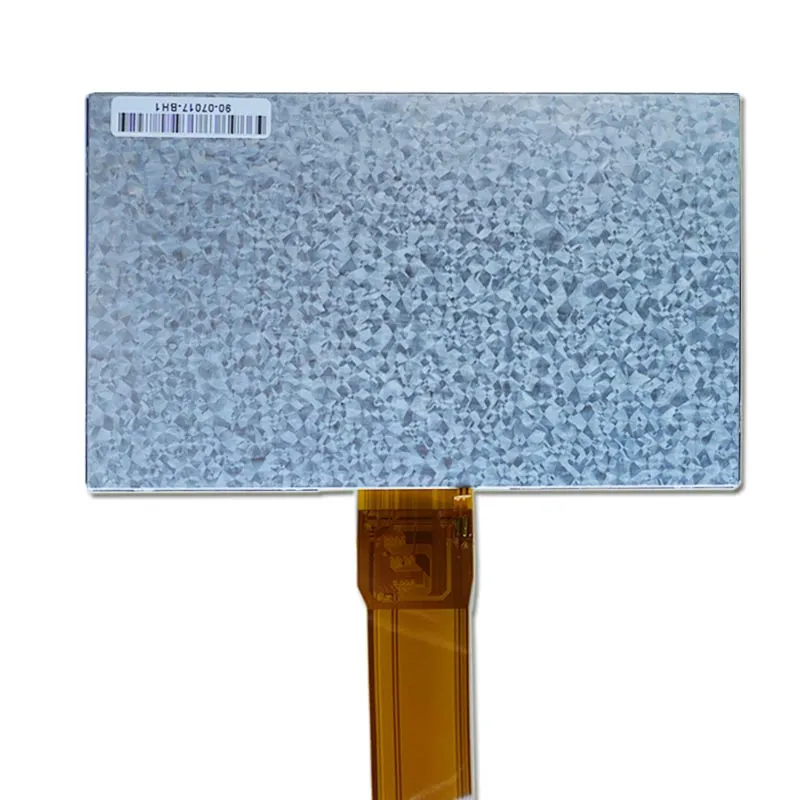

    Numéro de modèle  90-07017-BH1
    Taille 7.0
    Résolution 1024*600
    Dimension de l'ébauche 164.9*100*3.4
    Zone active 154.21*85.92
    Luminosité (cd/m²) 350
    Interface RVB
    Voir la direction ALL
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 20000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 800:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    7.0" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Personnalisation de l'interface LCD

    Choisissez parmi une gamme variée d'options d'interface ou consultez nos experts pour trouver celle qui convient le mieux à votre projet. Nous pouvons intégrer des interfaces HDMI, USB, SPI, VGA et autres dans votre écran, pour vous aider à atteindre efficacement vos objectifs de conception.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    7-Inch 1024 × 600 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 7-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1024 × 600 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Solutions d'affichage personnalisées

    Informations complémentaires

    Taille :

    Résolution :

    Interface :

    Température de fonctionnement :

    -20℃~70℃

    Luminosité (cd/m²) :

    350

    Prise en charge de l'écran tactile :

    Type d'affichage :

    Solutions d'affichage personnalisées

    Travaillez avec nos experts en ingénierie pour créer le présentoir parfait pour votre application.
