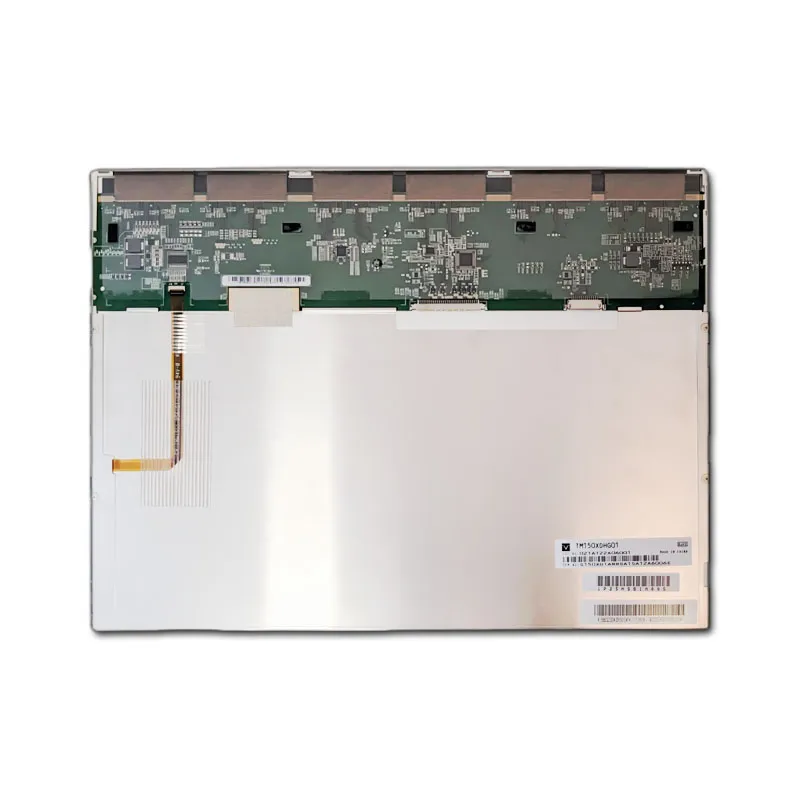

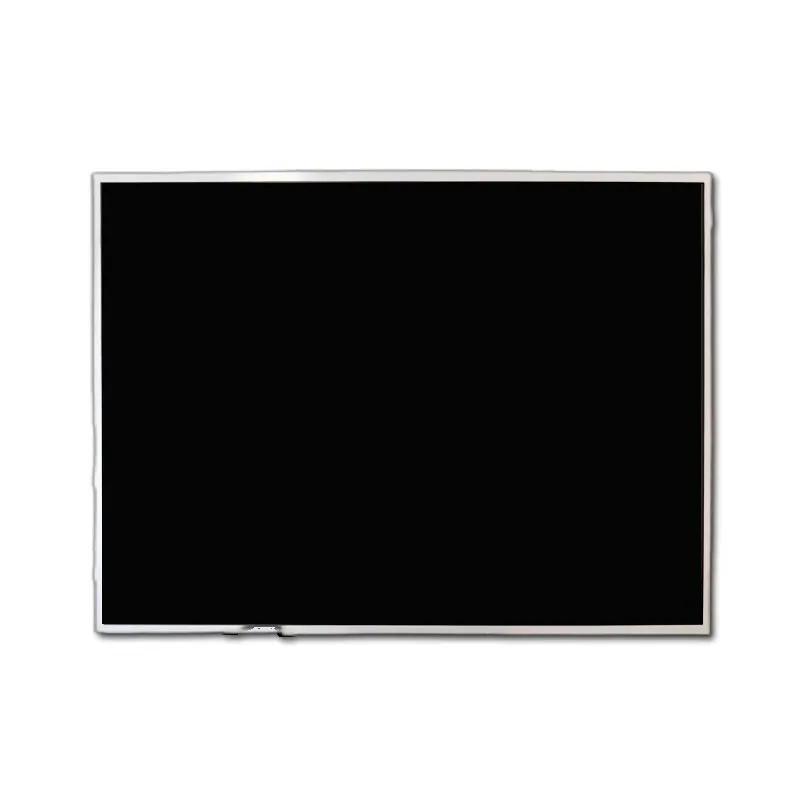

Tianma TM150XDHG01 15" 1600*1200 Sunlight Readable LCD - 80/80/80/80 TN -30℃~70℃

UGS : DS50092
Taille :

Numéro de modèle

TM150XDHG01

Prise en charge de l'écran tactile :

Résolution :

Interface :

Type d'affichage :

Ressources :

Sunlight Readable LCD: 15'' 1600*1200 TN panel, LVDS interface, wide temp (-20℃~70℃). Perfect for HMIs, POS, and rugged environments. 30K hrs lifespan.

Demande de tarification au volume







    Description

    Tianma tm150xdhg01 General Description

    Engineered for Demanding Visibility
    The Tianma TM150XDHG01 15-inch high-brightness LCD combats glare and environmental extremes, delivering crisp 1600x1200 (UXGA) visuals in direct sunlight or freezing temperatures. Designed for mission-critical systems requiring both precision and endurance, its LVDS interface and industrial-grade TN panel ensure stable signal transmission in high-EMI environments like oil rig control panels, aviation navigation displays, and mobile medical carts.



    Why Engineers Specify This Display

    ▸ Sunlight-Readable Clarity – High-bright backlight (contact for nit specs) cuts through glare on construction equipment and outdoor kiosks.
    ▸ Wide-Temperature Reliability – Operates flawlessly from -20℃ to 70℃, tested for thermal shock resistance in desert/mining applications.
    ▸ 30K-Hour Lifespan – Outlasts consumer-grade panels in 24/7 industrial HMIs and public transportation info screens.
    ▸ LVDS Noise Immunity – Integrates seamlessly with PLCs, reducing signal dropout risks in CNC machines or railway systems.

    Certified for Critical Deployments
    Compliant with RoHS and industrial EMC standards. Optional upgrades:
    • Anti-reflective coating for outdoor use
    • Resistive/capacitive touchscreen layers
    • Custom bezels or mounting brackets

    15" TFT-LCD Product Specifications

    Numéro de modèle TM150XDHG01
    Taille 15
    Résolution 1600(RGB)×1200
    Dimension de l'ébauche 318.7×242.5×6.5
    Zone active 304.8×228.6
    Luminosité (cd/m²) 1000
    Interface LVDS 30pin
    Voir la direction TN
    Température de fonctionnement -20~70
    Température de stockage -30~80
    Durée de vie des LED 30000
    Prise en charge de l'écran tactile Sans
    Rapport de contraste 1000:1
    Alimentation électrique 3.3V
    Type d'affichage LCD couleur

    15" TFT LCD Custom Solutions

    Optimisez vos solutions de câblage

    Ajustez la longueur, la position et le brochage de vos câbles, ou ajoutez des connecteurs supplémentaires pour améliorer la fonctionnalité. Obtenez une solution de câblage personnalisée conçue pour rationaliser vos connexions et garantir des performances sûres et fiables.

    Modifications de la carte de circuit imprimé

    Choisissez parmi une variété de variations dans la forme du circuit imprimé, la taille, la disposition des broches et des composants pour l'adapter parfaitement à votre application.

    Améliorer l'expérience de l'utilisateur grâce à la technologie de l'écran tactile

    Améliorez votre expérience utilisateur grâce à la technologie des écrans tactiles capacitifs ou résistifs. Nous personnaliserons l'épaisseur du verre et la forme de l'écran tactile pour qu'il réponde parfaitement à vos exigences en matière de conception.

    custom touch

    Verre de couverture sur mesure

    Équipez votre écran d'une vitre de protection découpée sur mesure pour améliorer sa durabilité et ses performances. Choisissez parmi différentes épaisseurs et optez pour le collage optique afin d'assurer une protection contre l'humidité et les débris, garantissant ainsi une solution durable et fiable.

    Tianma TM150XDHG01 15-Inch LCD Replacement FAQ

    How do I confirm that I need the Tianma TM150XDHG01?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 15-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the Tianma TM150XDHG01?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How do I qualify a different panel as a replacement for the Tianma TM150XDHG01?

    Use 1600 × 1200 to shortlist a candidate while keeping the complete interface and mechanical requirements in your acceptance criteria. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Is the Tianma TM150XDHG01 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informations complémentaires

    Taille :

    Numéro de modèle

    TM150XDHG01

    Prise en charge de l'écran tactile :

    Résolution :

    Interface :

    Type d'affichage :
