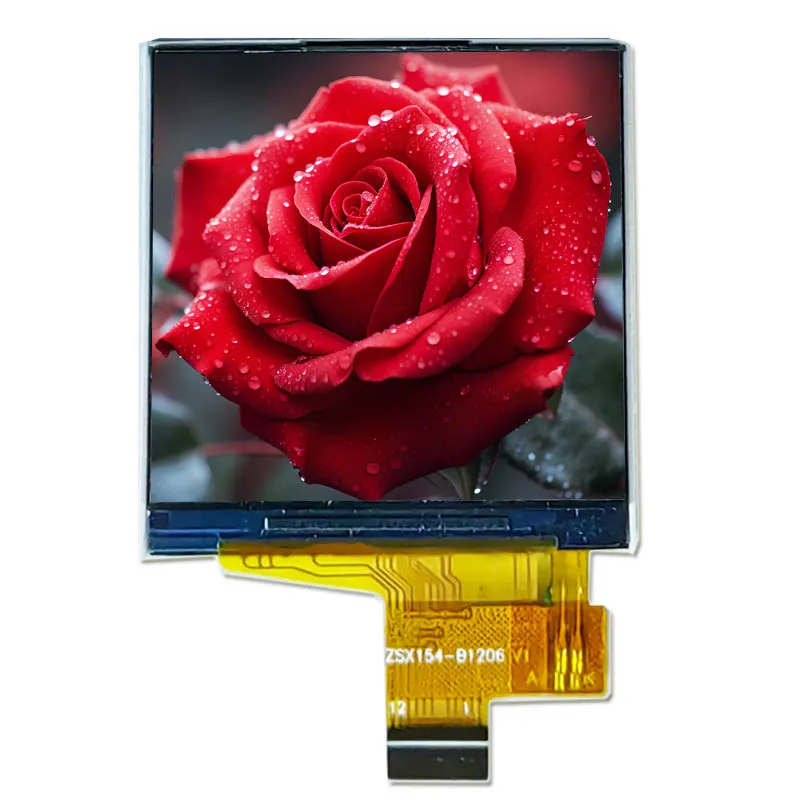

Display TFT SPI da 1,54 pollici a colori 240*240 ST7789

COD: DS20045
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

1.54 inch tft lcd module  240*240 Pixels  Serial MCU Interface  ST7779 drive IC  Customized touch screen

Richiesta di prezzi a volume







    Descrizione

    1.54" Custom TFT Screen Features

    The 1.54 inch SPI TFT Display offers a wide viewing angle of 80° in all directions, ensuring consistent image quality and color accuracy. With a brightness level of 350 cd/m², it provides good visibility in indoor and moderately lit environments, and the display boasts a high contrast ratio of 1200, enhancing clarity and vibrancy. Additionally, the module utilizes a 12-pin SPI interface, facilitating seamless integration with modern microcontrollers for efficient data transfer.



    ST7789 TFT Display

    The ST7789 is a widely used display driver IC in TFT-LCD modules like the 1.54-inch display, supporting resolutions up to 240x320 pixels, which aligns well with its 240x240 pixel resolution. It features a comprehensive command set for easy control of display functions, including initialization and memory operations, allowing developers to customize the display's behavior as needed. Designed for low power consumption, the ST7789 is particularly suited for battery-operated devices, helping to extend battery life while ensuring reliable performance.

    1.54" TFT-LCD Product Specifications

    Numero di modello  90-15403-001
    Dimensione 1.54
    Risoluzione 240*240

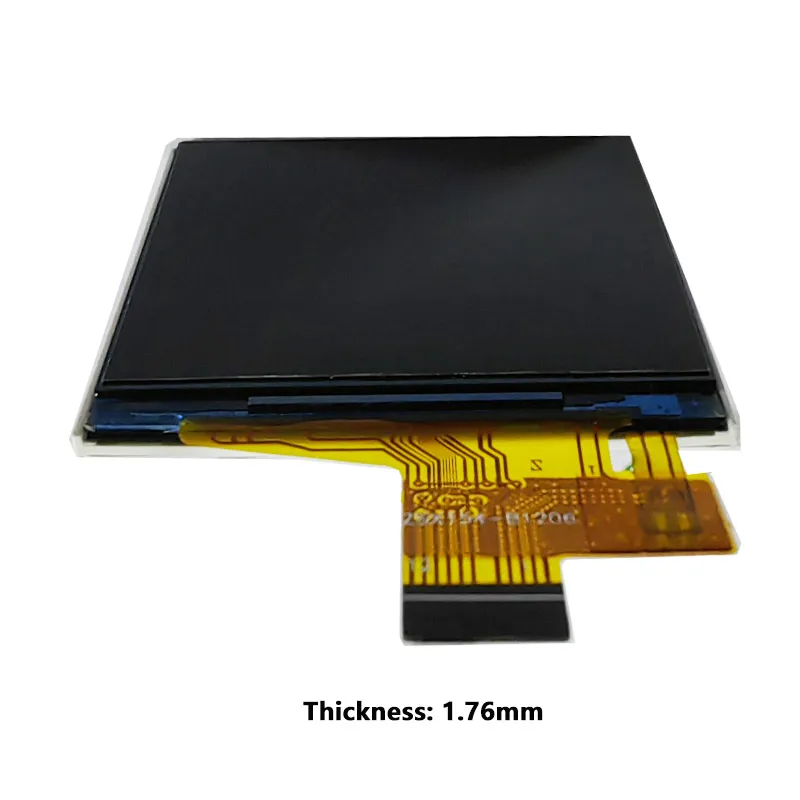

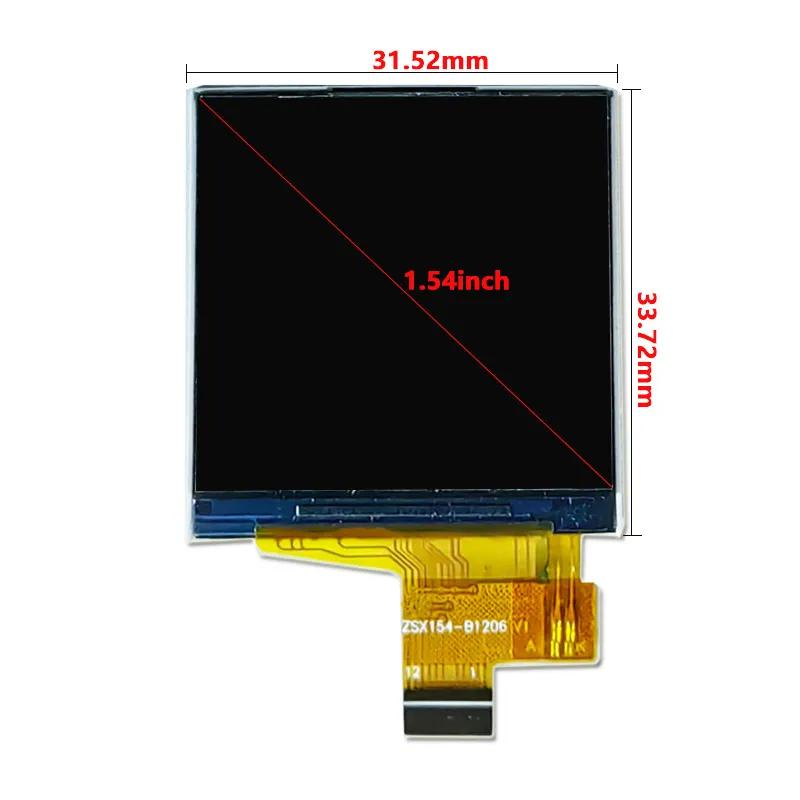

    Dimensione del contorno 31.52*33.72*1.76
    Area attiva 27.72*27.72
    Luminosità (cd/m²) 350
    Interfaccia SPI
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Witout
    Rapporto di contrasto 1200:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    1.54" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    1.54-Inch 240 × 240 SPI TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 1.54-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 240 × 240 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
