3.5 inch Industrial TFT Display 320*480 MCU

COD: DS20026
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

3.5 inch industrial TFT display  320*480 Pixels  Serial MCU Interface  37 pin FFC ZIF Connection  Customized touch screen 1000:1 Contrast Ratio 20000 LED Lifetime

Richiesta di prezzi a volume







    Descrizione

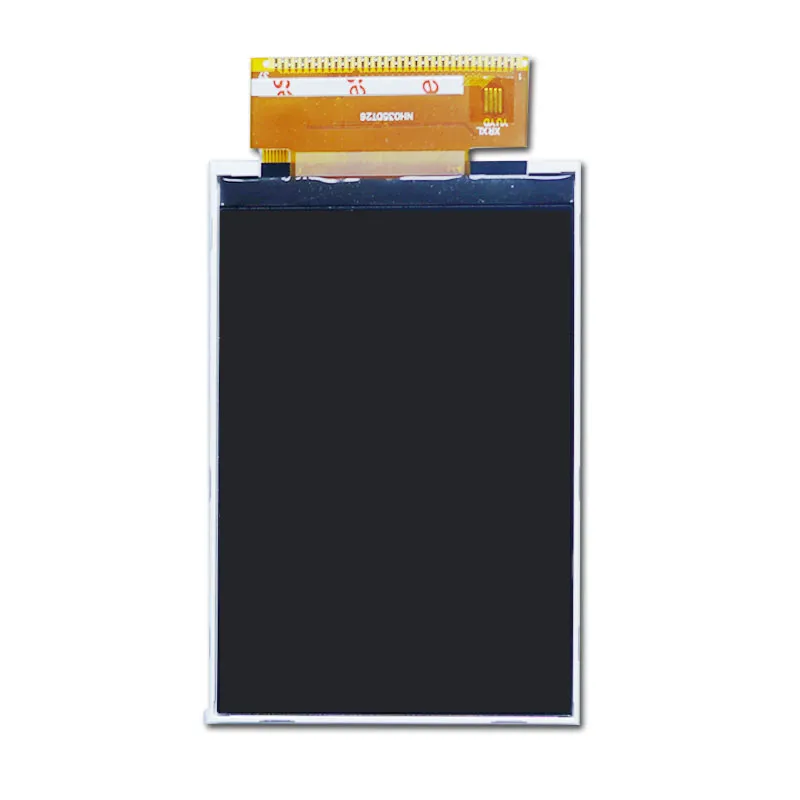

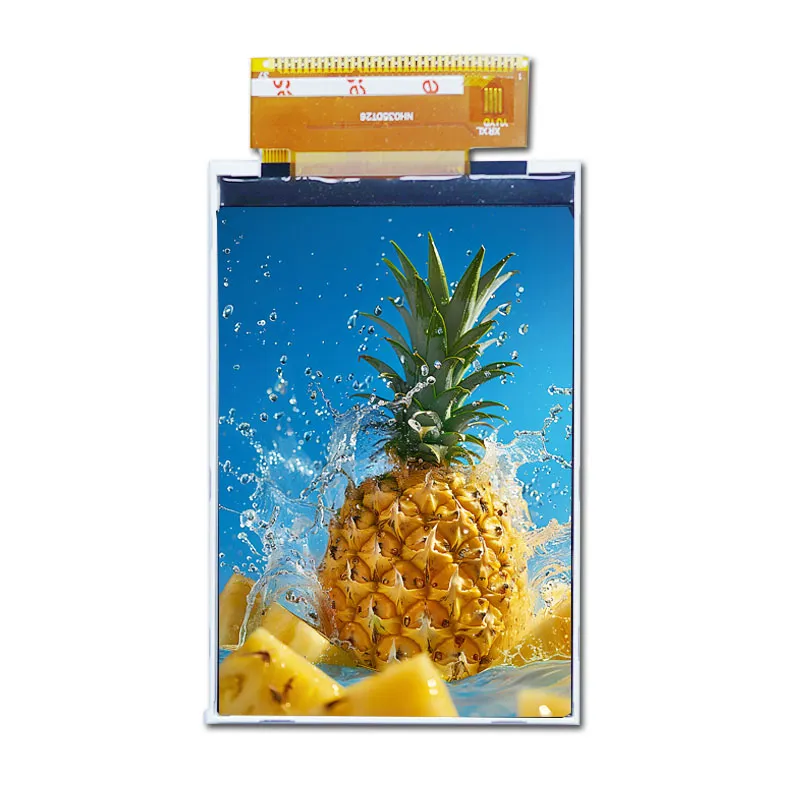

    3.5” Liquid Crystal Display

    The 3.5 inch industrial TFT display module combines a solid resolution 320*480, reliable brightness 350nits, and robust design, making it an excellent choice for various applications. Its compatibility with a 37-pin MCU interface and versatile temperature tolerance( -20℃ to 70℃) enhances its appeal across multiple industries, ensuring dependable performance in diverse environments.



    3.3V Low Power Consumption LCD

    The 3.5-inch TFT-LCD display module's low power consumption enhances its suitability for various applications, especially portable and embedded systems. This feature extends battery life, improves heat management, and boosts overall system efficiency, making it ideal for energy-efficient priority devices .  The reduced power requirements also support innovative designs and environmentally friendly practices, ensuring that the display module meets the needs of modern users and manufacturers alike.

    3.5" TFT-LCD Product Specifications

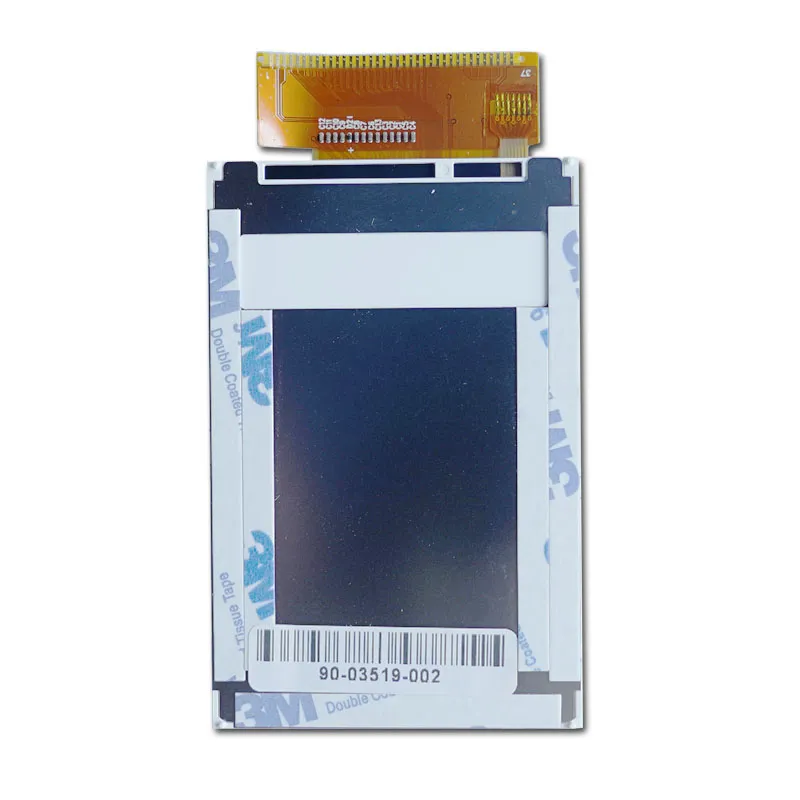

    Numero di modello  90-03519-002
    Dimensione  3.5
    Risoluzione 320*480

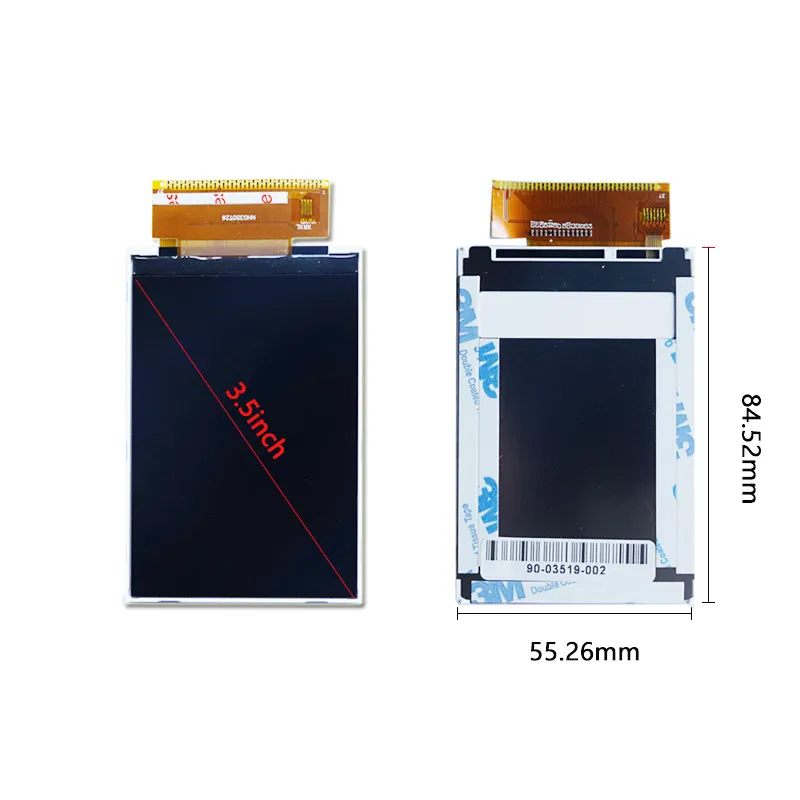

    Dimensione del contorno 55.26*84.52*2.7
    Area attiva 48.96*73.44
    Luminosità (cd/m²) 350
    Interfaccia MCU
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Witout
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    3.5" TFT LCD Soluzioni personalizzate

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    3.5-Inch 320 × 480 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
