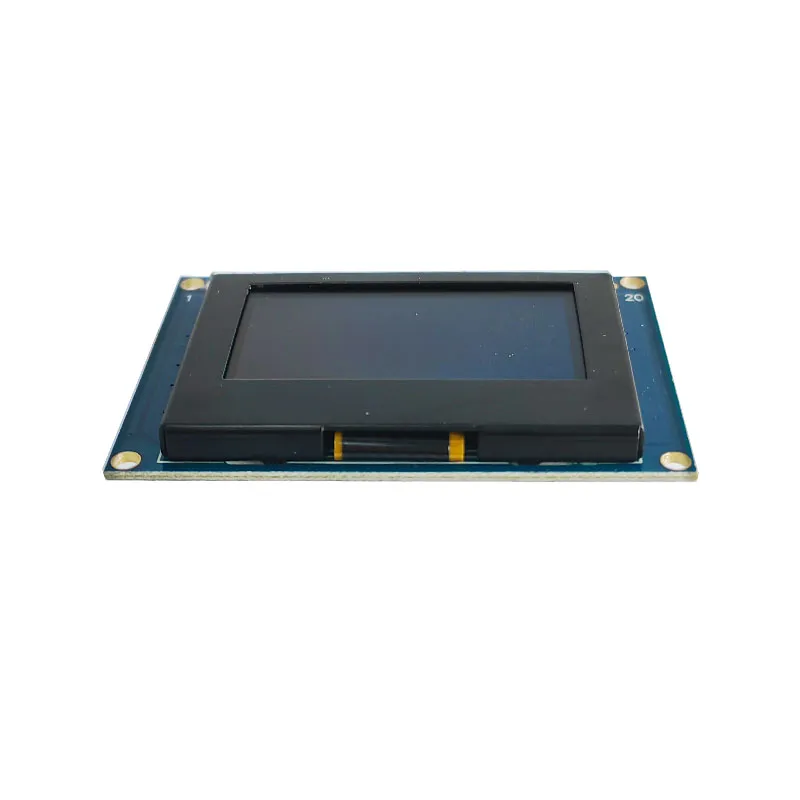

1.54 inch Display 128 x 64 Arduino

COD: DS10040
Dimensioni:

Risoluzione:

Interfaccia:

,

Temperatura di esercizio:

-0℃~40℃

Luminosità (cd/m²):

200

Supporto per touchscreen:

Tipo di display:

Resources:

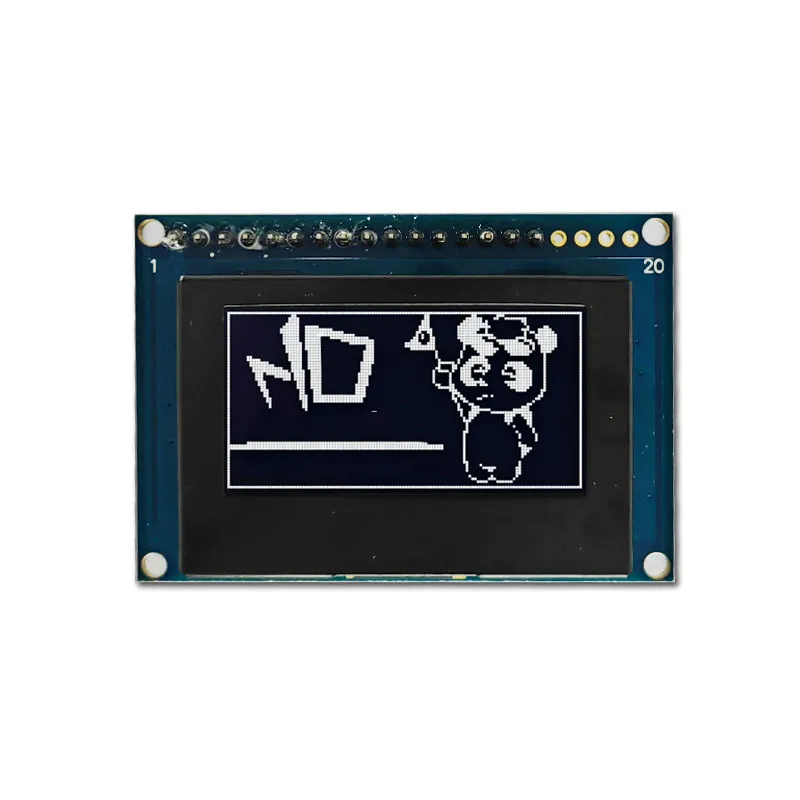

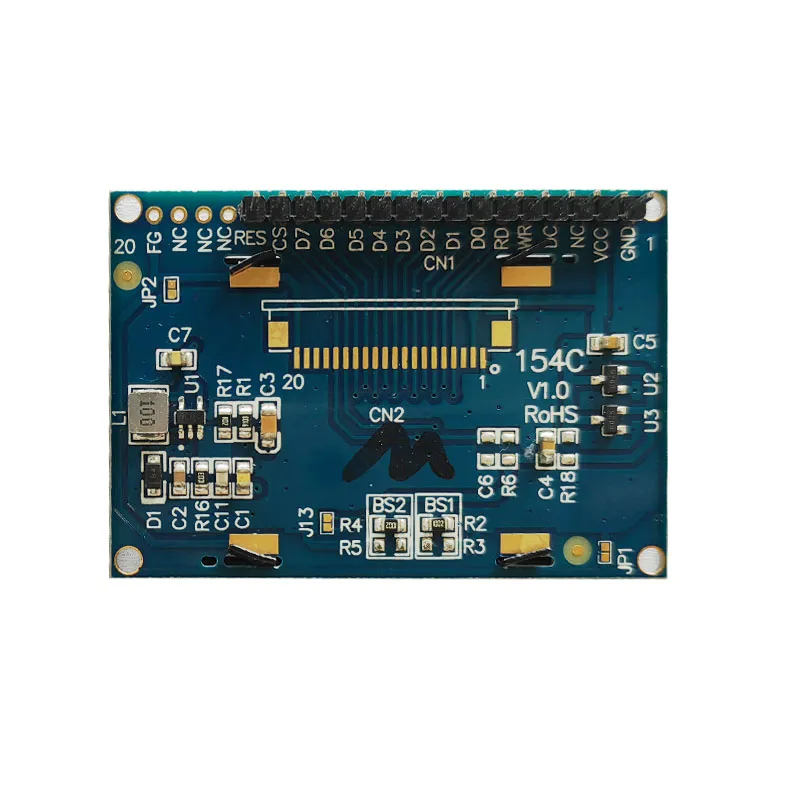

Display 128 x 64 Arduino Passive Matrix Oled with color white 1.54 inch monochrome 128x64 graphic display with a PCB board SSD1305 Controller IC 8pin IIC interface Four screw holes are designed on the PCB

Richiesta di prezzi a volume







    Descrizione

    1.54" Arduino Oled Display Features

    The 1.54 inch Display 128 x 64 Arduino utilizes advanced passive matrix technology to deliver excellent contrast and visibility, ensuring readability in various lighting conditions. Its compact size makes it ideal for space-constrained applications while still providing ample screen real estate for detailed graphics. Equipped with the SSD1305 controller IC, the display facilitates easy integration and control for seamless operation. It supports multiple interface options, including 8-bit 68XX/80XX parallel, 4-wire SPI, and I2C, providing flexibility for different system configurations and minimizing wiring complexity. Additionally, the PCB board features four screw holes for secure and convenient mounting in various projects.



    1.54" Arduino Oled Display Application

    The 1.54 inch Display 128 x 64 Arduino is ideal for a variety of applications, including wearable devices like smartwatches and fitness trackers, where size and power efficiency are essential. It is also suitable for embedded systems, such as IoT devices and industrial controls, that require reliable displays. Additionally, this display is a favorite among hobbyists and makers for DIY projects, particularly for enhancing Arduino or Raspberry Pi setups. Furthermore, it can be integrated into portable medical devices, providing clear and easily interpretable outputs for effective user interaction.

    1.54" Arduino Oled Display Product Specifications

    Panel Size(inch) 1.54(Diagonal)
    Display Mode Passive Matrix—OLED&White
    Interfaccia 8-Bit 68XX/80XX Parallel 、4-Wire SPI 、I2C
    Drive Duty 1/64
    Driver IC SSD1305
    Shell 0.5T
    Outline Drawing 62.5x40.45x8.5
    View Area 37.0x19.5
    Area attiva 35.056x17.52
    Lattice 128dots x 64dots
    Pixel Pitch 0.274x0.274
    Pixel Size 0.258x0.258
    - -
    - -
    - -

    1.54" Arduino Oled Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    1.54-Inch 128 × 64 I²C Embedded Display FAQ

    Can my microcontroller show this interface without clipping or running out of memory?

    Try your smallest text, longest labels and icons on a 128 × 64 canvas before committing to the enclosure. Calculate framebuffer memory for your selected pixel format and buffering strategy, then measure the update time with the intended microcontroller.

    How can I check whether my existing display library will work?

    For the listed I²C interface, check the controller address, logic levels and bus pull-ups on the intended host. Check that the library names the exact display controller and supports its initialization, addressing and orientation. Test a full-screen pattern before porting the UI.

    LCD display interface guide

    Should I choose this display bus or another interface on my controller?

    Compare pin availability, logic levels, code support and measured full-screen update time with your existing host. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Include the space needed for the connector and any adapter.

    Can the connector, flex, or display assembly be adapted to my controller board?

    Send the host schematic or board model, connector, flex length and use case. We can review connector and mounting options and identify the bus mode, logic levels and controller initialization to lock down before sampling.

    What determines the cost and timing of a sample for my MCU project?

    Include the host, preferred controller or bus, cable requirements, sample quantity and target date. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    ,

    Temperatura di esercizio:

    -0℃~40℃

    Luminosità (cd/m²):

    200

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
