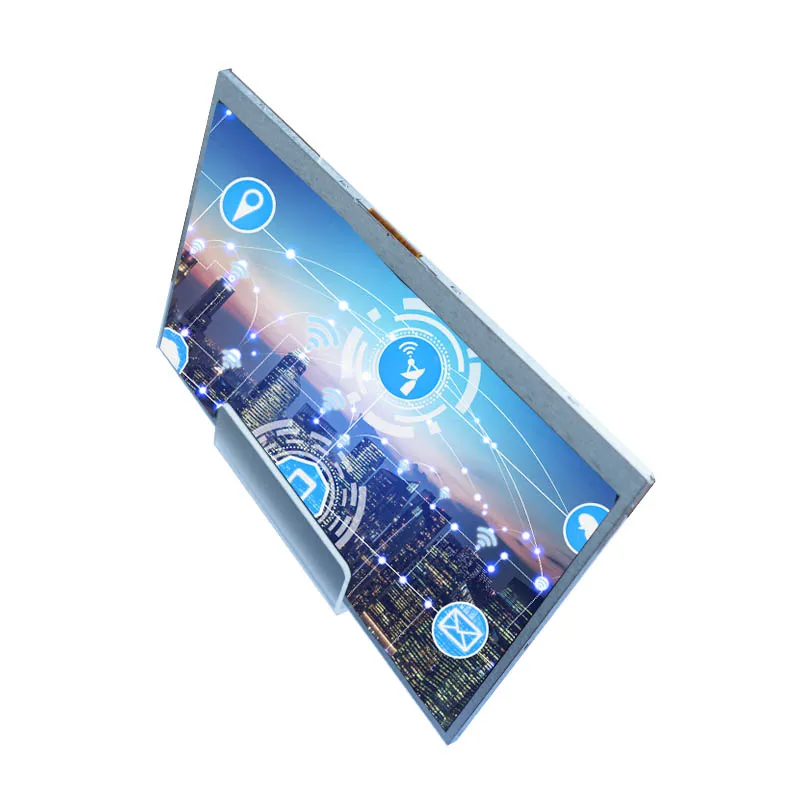

10.1 inch LVDS 1024*600 TFT Display Panel

COD: DS20080
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

10.1 inch IPS LCD Screen  1024*600 Pixels  Serial LVDS Interface Customized touch screen  Medical/ Industrial/Vehicle/Military Grade

Richiesta di prezzi a volume







    Descrizione

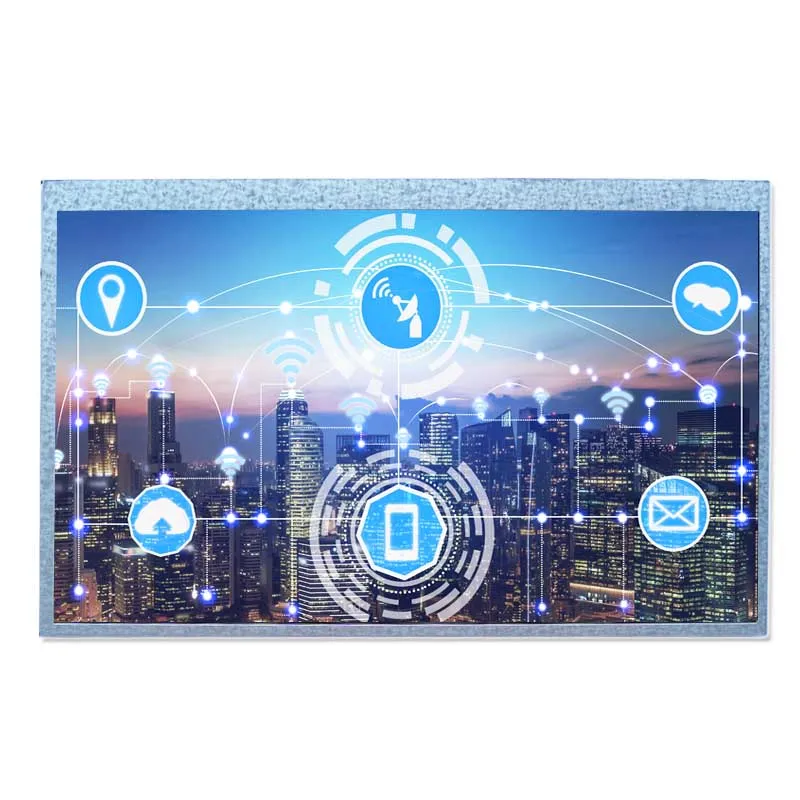

    10.1" TFT Display Panel Features

    This 10.1 inch TFT Display Panel has wide viewing angles of 80°/80°/80°/80° (RLUD), ensuring that the screen remains visible and color-accurate from all directions. It supports all viewing directions, making it ideal for multi-user environments or installations where the display may be viewed from different angles. The LVDS 60 interface provides high-speed data transmission for seamless communication with host devices.



    10.1" TFT Panel with High Contrast Ratio

    The contrast ratio, which measures the difference in light intensity between the brightest white and the darkest black a display can produce, is a key factor in visual quality. A contrast ratio of 1000:1 ensures that images are sharp and details are well-defined, resulting in more vivid and striking visuals. This level of contrast is particularly effective for applications requiring clarity, such as medical imaging and graphical displays, where accurate representation of details is crucial.

    10.1" TFT-LCD Product Specifications

    Numero di modello  90-10106-HH1
    Dimensione 10.1
    Risoluzione 1280*600

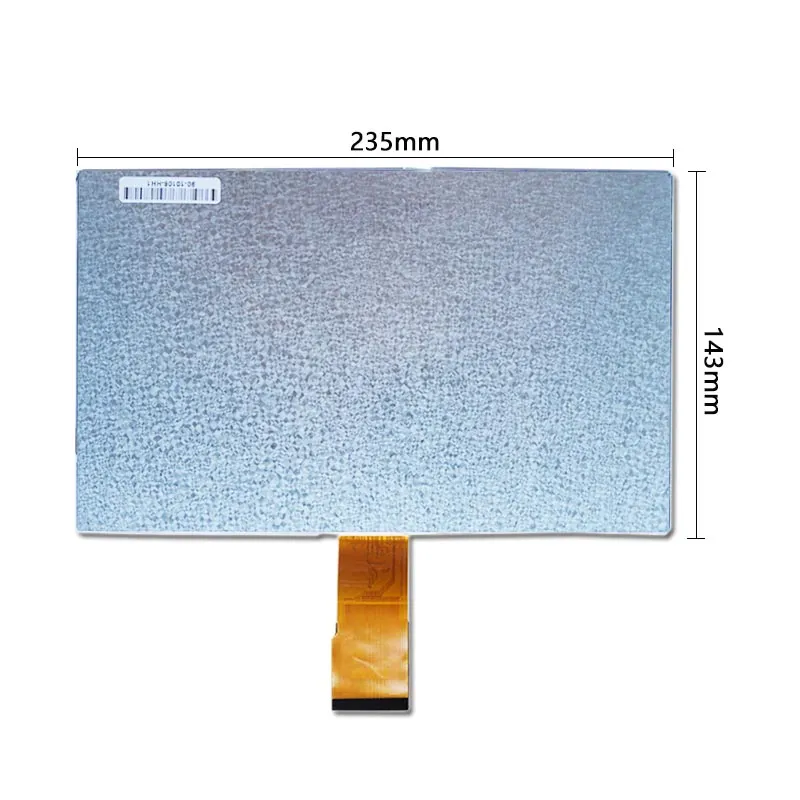

    Dimensione del contorno 235*143*4.5
    Area attiva 222.72*125.28
    Luminosità (cd/m²) 300
    Interfaccia LVDS
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    10.1" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    10.1-Inch LVDS TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 10.1-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
