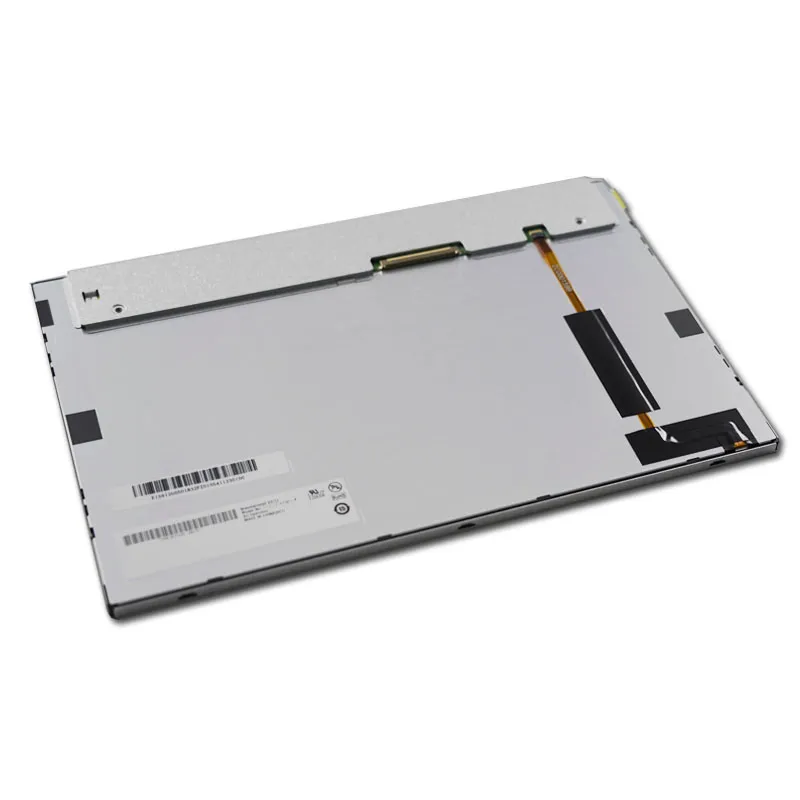

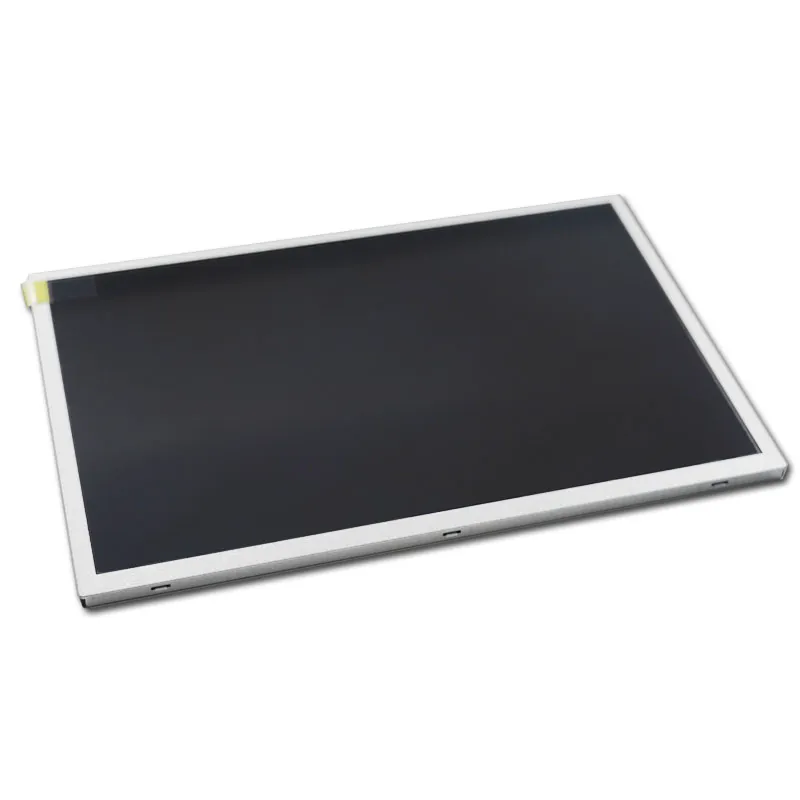

12,1" G121EAN01.4 Schermo LCD AUO 1280*800 Luminanza 300 cd/m²

COD: DS50022
Dimensioni:

Numero di modello

G121EAN01.4

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

300

Temperatura di esercizio:

-30℃~ 85℃

Supporto per touchscreen:

Tipo di display:

Resources:

G121EAN01.4 from Brand AUO, Resolution 1280*800, Brightness 300cd/m² Operating Temperature from -30~85℃, LVDS 30 pin, Stable supply, Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    G121EAN01.4 Key Features

    The AUO G121EAN01.4 is a 12.1-inch WXGA IPS display featuring a resolution of 1280 x 800 pixels and a pixel density of 124 PPI, delivering crisp and vibrant visuals. It boasts a typical luminance of 300 cd/m² and a high contrast ratio of 1000:1, ensuring excellent image quality and visibility. Utilizing AHVA technology, the display offers symmetrical viewing angles of 89 degrees in all directions, maintaining consistent image quality from various perspectives. With a fast response time of 25ms and a transmissive operating mode, it provides responsive performance. The display's rugged design includes a durable LVDS interface with a 50,000 connection lifecycle, a compact and lightweight build, and a wide operating temperature range of -30°C to 85°C. It operates on a standard 3.3V power supply, making it a versatile choice for a variety of applications.



    G121EAN01.4 Applications

    The AUO G121EAN01.4 display boasts key strengths such as a high-resolution WXGA panel, impressive luminance and contrast, wide viewing angles, and a robust design, making it suitable for a variety of applications. It is ideal for use in industrial automation and control systems, medical equipment and diagnostic devices, automotive infotainment and instrumentation, as well as in outdoor and rugged portable devices and digital signage and interactive kiosks.

    12.1" TFT-LCD Product Specifications

    Numero di modello G121EAN01.4
    Dimensione 12.1
    Risoluzione 1280*800
    Dimensione del contorno 278*184*9.64
    Area attiva 261.12*163.2
    Luminosità (cd/m²) 300
    Interfaccia LVDS
    Visualizza la direzione ALL
    Temperatura di esercizio -30~85
    Temperatura di stoccaggio -30~85
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    12.1" TFT LCD Custom Solutions

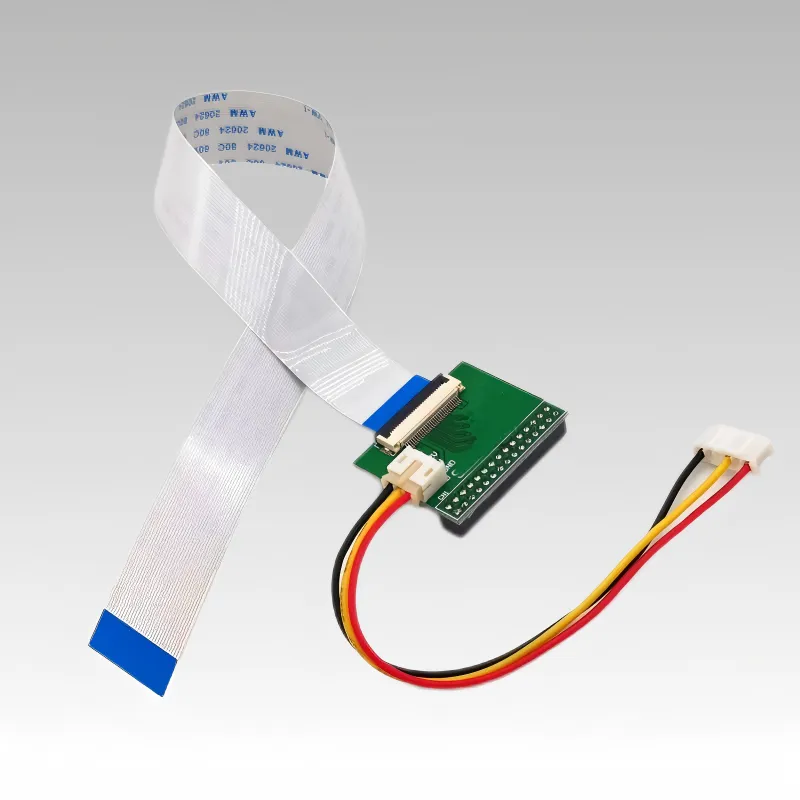

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G121EAN01.4 12.1-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G121EAN01.4?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 12.1-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G121EAN01.4?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G121EAN01.4 compare with the Innolux G121ICE-L02?

    Both catalog listings show 12.1 inches, 1280 × 800 and LVDS. The catalog lists −30 °C to +85 °C for the AUO panel and −20 °C to +70 °C for the Innolux panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare Innolux G121ICE-L02

    Is the AUO G121EAN01.4 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G121EAN01.4

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    300

    Temperatura di esercizio:

    -30℃~ 85℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
