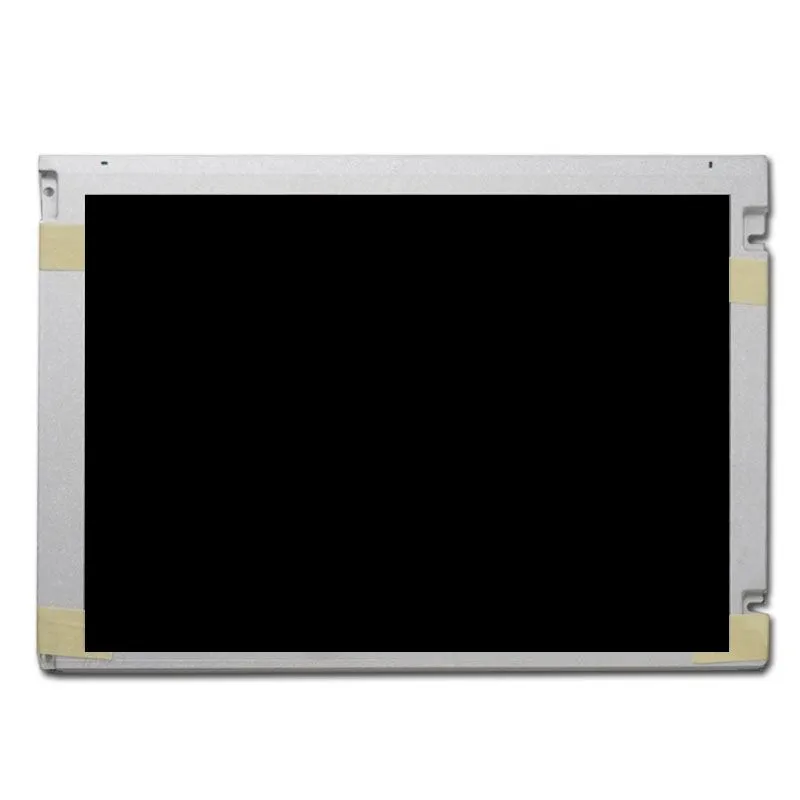

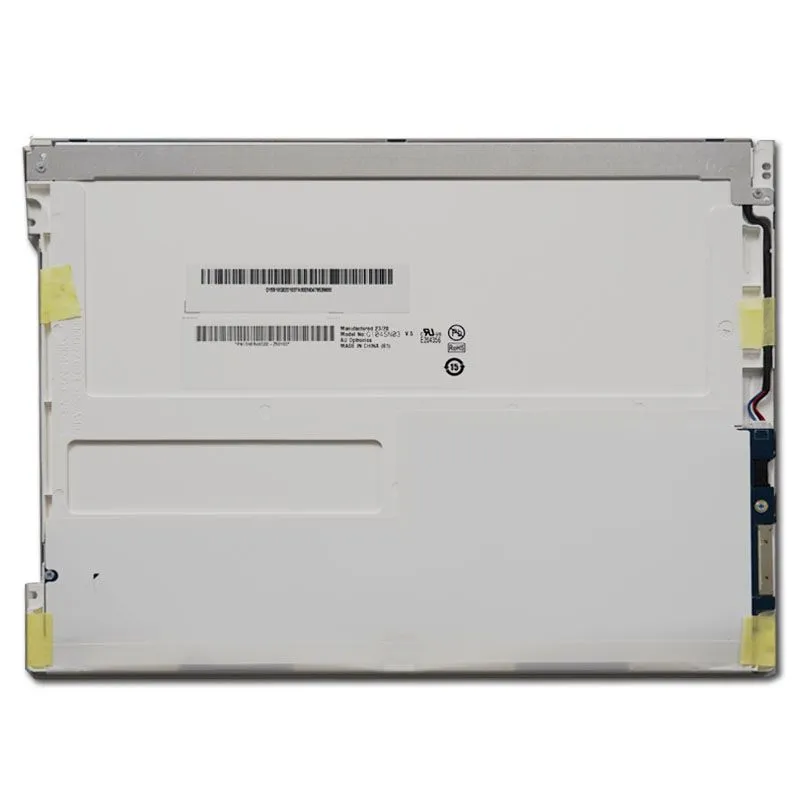

G104STN01.0 AUO 10.4 inch Display TFT LCD 800*600 Pixels

COD: DS50014
Dimensioni:

Numero di modello

G104STN01.0

Risoluzione:

Interfaccia:

Luminosità (cd/m²):

400

Temperatura di esercizio:

-30℃~80℃

Supporto per touchscreen:

Tipo di display:

Resources:

G104STN01.0 from Brand AUO, Resolution 800*600, Operating Temperature from -20~80℃,1 channel LVDS Interface, Stable supply, Original A grade quality

Richiesta di prezzi a volume







    Descrizione

    G104STN01.0 General Description

    G104STN01.0 composed of a TFT-LCD display, a driver and power supply circuit, and a LED backlight system. The screen format is intended to support SVGA (800(H) x 600(V)) screen and 16.2M (RGB8-bits) or 262k colors (RGB 6-bits).LED driving board for backlight unit is included in G104STN01.0 and the LED unit is replaceable.All input signals are LVDS interface and compatible with G104SN02 V2. It well suited for industial applications.



    G104STN01.0 AUO Display TFT LCD Characteristics

    The 10.4 inch AUO Display TFT LCD features an active area of 211.2 mm (H) x 158.4 mm (V) and a resolution of 800 x 600 pixels, arranged in a RGB vertical stripe pattern with a pixel pitch of 0.264 mm. Operating in a TN (Twisted Nematic) normally white display mode, it has a nominal input voltage of 3.3V and a typical power consumption of 2.88W under an all-black pattern. The module weighs approximately 365 grams and has physical dimensions of 243.0 mm (H) x 184.0 mm (V) x 6.5 mm (D). It utilizes a 1-channel LVDS electrical interface and features an anti-glare surface treatment with a hardness rating of 3H, supporting 16.2 million colors (8-bit) and 262K colors (6-bit). Designed for operation and storage within a temperature range of -20°C to +80°C, the module is also RoHS compliant, ensuring adherence to environmental standards.

    10.4" TFT-LCD Product Specifications

    Numero di modello G104STN01.0
    Dimensione 10.4
    Risoluzione 800*600
    Dimensione del contorno 243*184*7
    Area attiva 211.2*158.4
    Luminosità (cd/m²) 400
    Interfaccia LVDS
    Visualizza la direzione TN
    Temperatura di esercizio -30~80
    Temperatura di stoccaggio -30~80
    Durata del LED 50000
    Supporto per touchscreen Senza
    Rapporto di contrasto 700:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    10.4" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    PCB Modifications

    Choose from a variety of variations in PCB shape, size, pin and component layout to make it fully suitable for your application.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    AUO G104STN01.0 10.4-Inch LCD Replacement FAQ

    How do I confirm that I need the AUO G104STN01.0?

    Send us a clear photo showing the full model suffix and revision on the old panel label, the connector side, and the equipment model. Start with the listed 10.4-inch display, then check the drawing for the outline, visible opening, thickness, mounting points and connector clearance.

    Can I reuse the existing LVDS cable and controller with the AUO G104STN01.0?

    For the listed LVDS interface, match the connector pinout, channel count, data mapping and panel supply before applying power. Check the existing backlight supply and enable/dim signals as well. Two connectors that look identical can carry different signals.

    TFT LCD datasheet integration guide

    How does the AUO G104STN01.0 compare with the BOE BA104S01-300?

    Both catalog listings show 10.4 inches, 800 × 600 and LVDS. The catalog lists −30 °C to +80 °C for the AUO panel and −20 °C to +70 °C for the BOE panel. Compare the outline and mounting points, connector position and pinout, power and backlight signals, and video timing. Test the original graphics and controls on a sample before approving a substitute.

    Compare BOE BA104S01-300

    Is the AUO G104STN01.0 still available, and how do I check for end of life?

    Send us the exact rear-label model and revision, requested quantity and required date. Ask for current supply for that revision and any dated manufacturer notice. If the revision is unavailable, we can review a candidate for sample qualification.

    Can I keep the original LCD and add touch, a cover, or a revised cable?

    The listed panel has no touch layer. We can review the cover, touch stack or cable around the original panel. Send us the enclosure drawing, required controller connections, sample quantity and production forecast. Ask for feasible changes, any one-time development charges, production MOQ and separate sample and production lead times.

    Informazioni aggiuntive

    Dimensioni:

    Numero di modello

    G104STN01.0

    Risoluzione:

    Interfaccia:

    Luminosità (cd/m²):

    400

    Temperatura di esercizio:

    -30℃~80℃

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
