13.3 inch HDMI Touch Display for Raspberry PI

COD: DS20190
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-0℃~50℃

Luminosità (cd/m²):

330

Supporto per touchscreen:

Tipo di display:

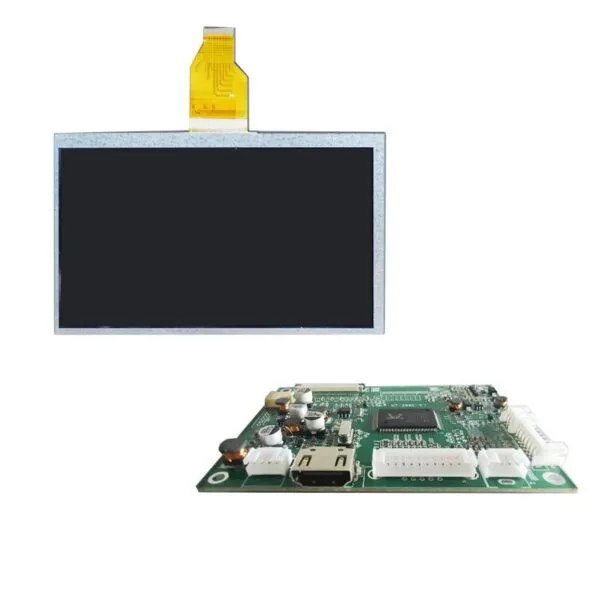

7 inch HDMI Touch Display Offering Resolution 1024*600  tft controller board with HDMI, VGA, CVBS, video signal input

Richiesta di prezzi a volume







    Descrizione

    13.3" HDMI TFT Display Features

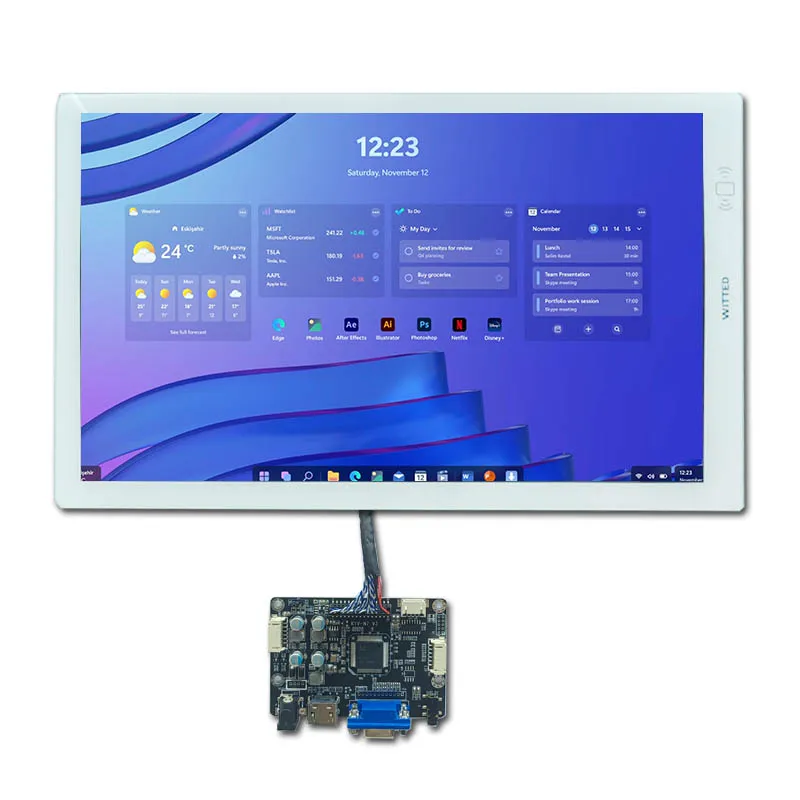

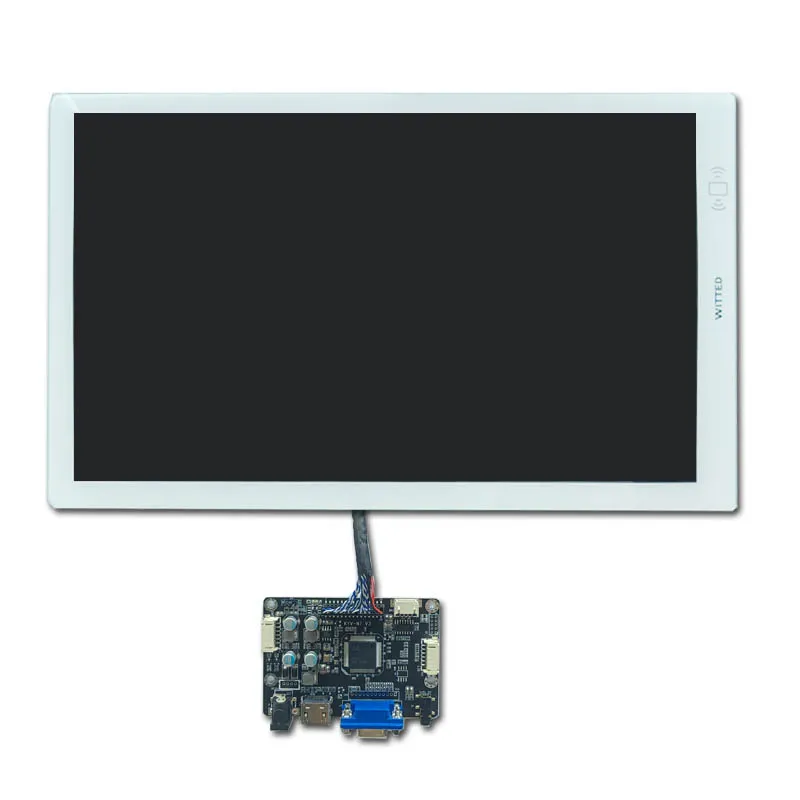

    The 91-13301-BH1 is a versatile 13.3 inch HDMI Touch Display featuring a resolution of 1920x1080 pixels and comes equipped with a HDMI/VGA signal driver board. For added functionality, it offers optional touch panel support, including a 4-wire resistive touch panel with a USB driver board and cable, or a capacitive touch panel with a USB controller board and cable.
    Designed for superior image quality, this display delivers full viewing angles, making it an ideal choice for a variety of applications, such as embedded systems, automotive displays, industrial equipment, security systems, and handheld devices where high-quality video output is essential. Its compatibility with Raspberry Pi via HDMI enhances its flexibility, supporting operating systems like Raspbian, Ubuntu, and Windows 10 IoT. The display also supports multi-touch and it is driver-free, ensuring ease of integration.



    13.3" HDMI TFT Display Application

    This FPD-UHD V2.1 driver board is mainly used for TFT LCD screens that support VBY1 interface. The driver board has 1 VGA and 1 DVI interface, 1 HDMI and 1 DP, and supports VBY1 and eDP output interfaces. The mainboard uses Mstar signal processing chip, which has powerful processing functions and can support standard and non-standard signals of various specifications. High-specification devices are used with good working performance.
    * Integrated 2*2 high-quality image scaling engines, which can process 4 4K2K@30Hz video input streams at the same time.
    * Built-in VBY1 interface, supports LCD Panels with a maximum resolution of 4096x2160@60Hz.
    * Support large-screen external power control and ultra-low standby power consumption.
    * Support PIP/PBP window.
    * Support 4K eDP signal output, and support eDP LCD screens in 2 formats of HBR and HBR2.
    * Integrated 4 composite digital interfaces, supporting HDMI/DVI/DP/MHL interfaces, and integrated 1 analog input port, supporting
    PC (VGA) input.

    13.3" HDMI TFT Display Product Specifications

    Diagonal Size 13.3(Diagonal)
    Display Format 1920x1080 Pixels
    Interfaccia HDMI
    IC or Equivalent -
    Connection EDP string
    Dimensione del contorno 305.2(W)x178.2(H)X2.6(T)mm
    Area attiva 293.8(W)x165.2(H)mm
    Touch Panel Optional Yes
    Contrast Ratio(Typ) 800
    Viewing Direction ALL
    Viewing Angle Range 85/85 /85/85
    Brightness(Typ) 330cd/m2
    Temperatura di esercizio -0℃~50℃
    Temperatura di stoccaggio -20℃~60℃
    - -

    13.3" HDMI TFT Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    Raspberry Pi Display FAQ

    Can I mount this display with my Raspberry Pi and still reach the connectors?

    Use the exact drawing to decide whether the display assemblies fit. Check the mounting stack, cable exit, port access and clearance for the actual Pi model and enclosure. Test fit with power and data cables plugged in.

    Will this display work with my Raspberry Pi model and OS image?

    For the listed HDMI interface, confirm the source can output a mode accepted by the supplied controller and check separately how the display is powered. Send us the Pi model, OS image and kernel version. Confirm the display mode and any touch driver on that exact setup before committing to the hardware.

    Raspberry Pi screen guide

    How should I compare this screen with another Raspberry Pi display?

    Get the native pixel layout first, then try your application in its intended orientation at that layout before committing to the enclosure. Compare boot reliability, usable screen area, power budget and the OS setup each option needs. Use the listed 330 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Can I change the mounting, cable set, or touch configuration?

    Send the Pi model, OS version, available ports and enclosure drawing. We can review mounting and cable options and confirm how video, power and any touch input will be connected for the proposed configuration.

    What should I send for a Raspberry Pi display sample quote?

    Include the Pi and OS details, panel drawing, sample quantity and expected production volume. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -0℃~50℃

    Luminosità (cd/m²):

    330

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
