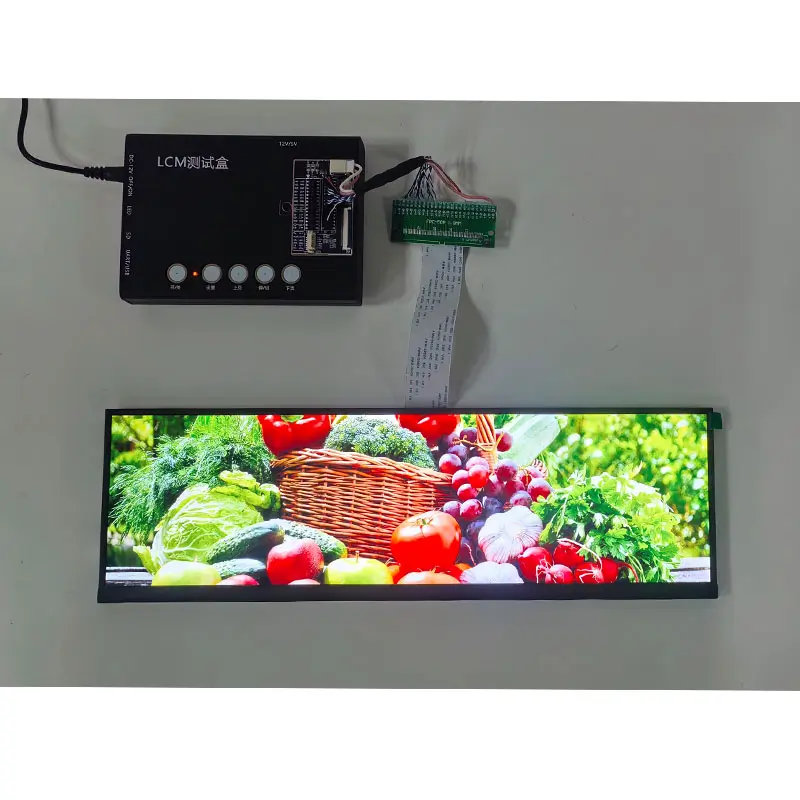

14.9 inch Bar Type LCD Display with Incell Capacitive Touch

COD: DS20313
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

600

Supporto per touchscreen:

Tipo di display:

14.9 inch Bar type lcd display, resolution 2560x720, with 10 point incell capacitive touch, outdoor sunlight readable.

Richiesta di prezzi a volume







    Descrizione

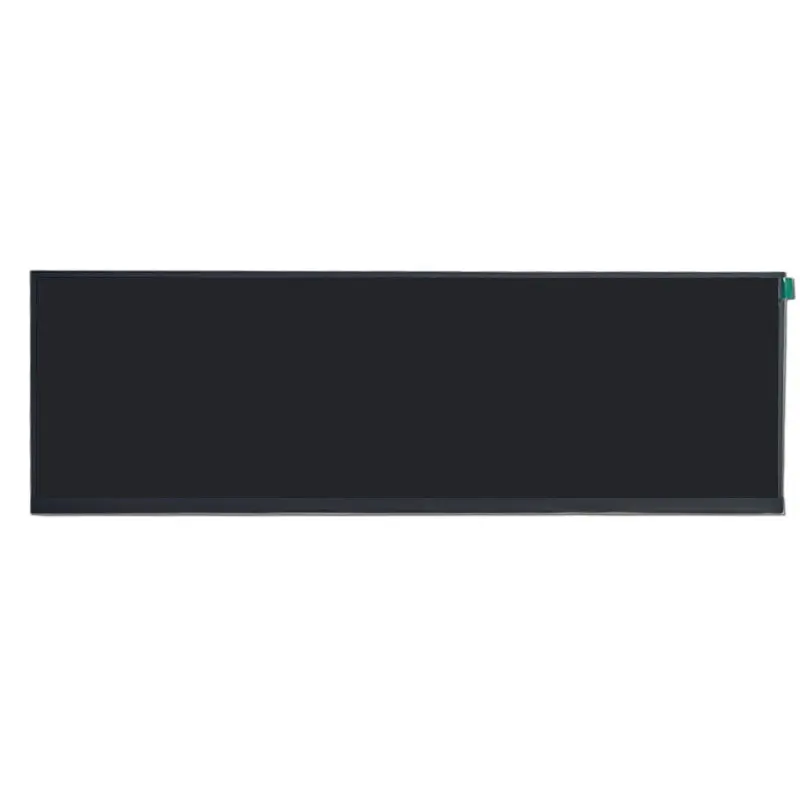

    14.9 inch Bar Type LCD Display Description

    This 14.9-inch bar-type LCD display is a custom private-molded model.
    Key specifications:
    AA area: 354.81x99.792mm
    Resolution: 2560x720
    Interface: MIPI (configurable to other types)

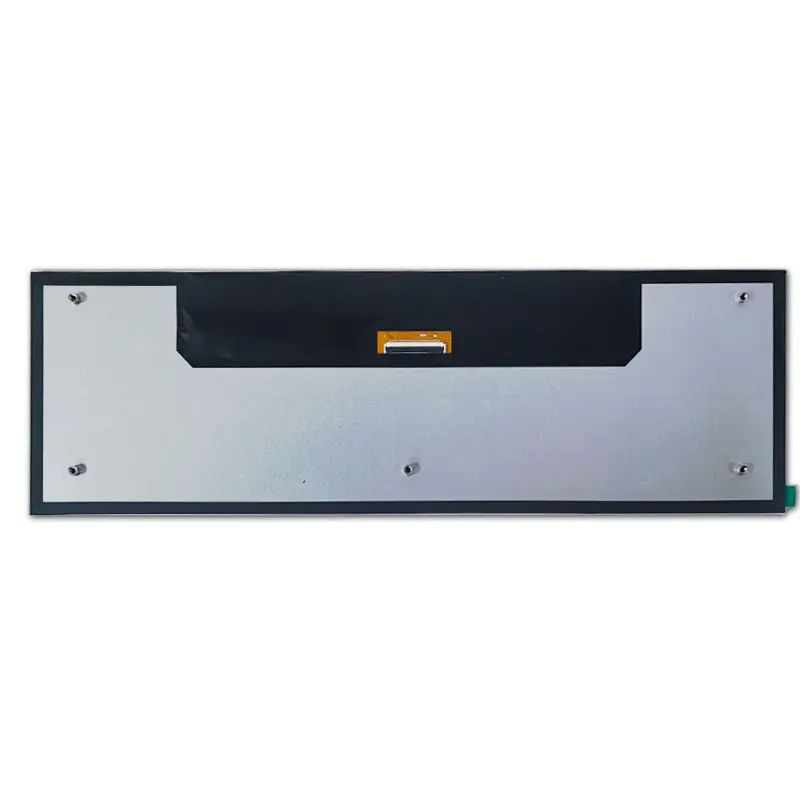

    Touch function: Incell capacitive touch, 10-point touch
    Display performance: High brightness, suitable for outdoor use

    14.9" TFT Display Specifications

    Numero di modello HX-C149HAX01
    Dimensione 14.9
    Risoluzione 2560*720
    Dimensione del contorno 364*113*3.0
    Area attiva 354.816*99.792
    Luminosità (cd/m²) 600
    Interfaccia MIPI
    Visualizza la direzione IPS
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -20~70
    Durata del LED 20000
    Supporto per touchscreen NO
    Rapporto di contrasto 800:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    14.9" TFT Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    14.9-Inch 2560 × 720 Stretched Bar LCD Display FAQ

    Will this bar display fit my narrow opening and show the full interface?

    Use the 14.9-inch diagonal to shortlist bar displays, then check the exact drawing for fit. Compare the active width and height, bezel overlap and flex-cable exit with your drawing. Start with the listed 2560 × 720 pixel layout. Verify the text and icon safe areas using your real artwork at the intended mounting orientation.

    Can I run a horizontal layout with this bar LCD and my controller?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Confirm that the graphics pipeline can render the native mode and map rotation correctly. Test boot graphics and your application with the panel in its installed orientation.

    When should I choose this bar format over a conventional rectangular screen?

    Pick the bar format when the opening and the layout can use its long axis without cropping essential content. Compare the controller and mounting changes against a standard screen, then mock up text at the actual viewing distance. Use the listed 600 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting.

    Bar screens and cut bar screens

    Can I change the flex exit, front cover, or touch configuration for a bar display?

    Send your visible opening, installed orientation, connector clearance and cover drawing. We can review flex routing and a cover or touch assembly around the existing bar panel, with feasibility checked against the drawing.

    How much does a custom bar display sample cost and how long does it take?

    Include the visible dimensions, driver interface, installed orientation, sample quantity and annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    600

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
