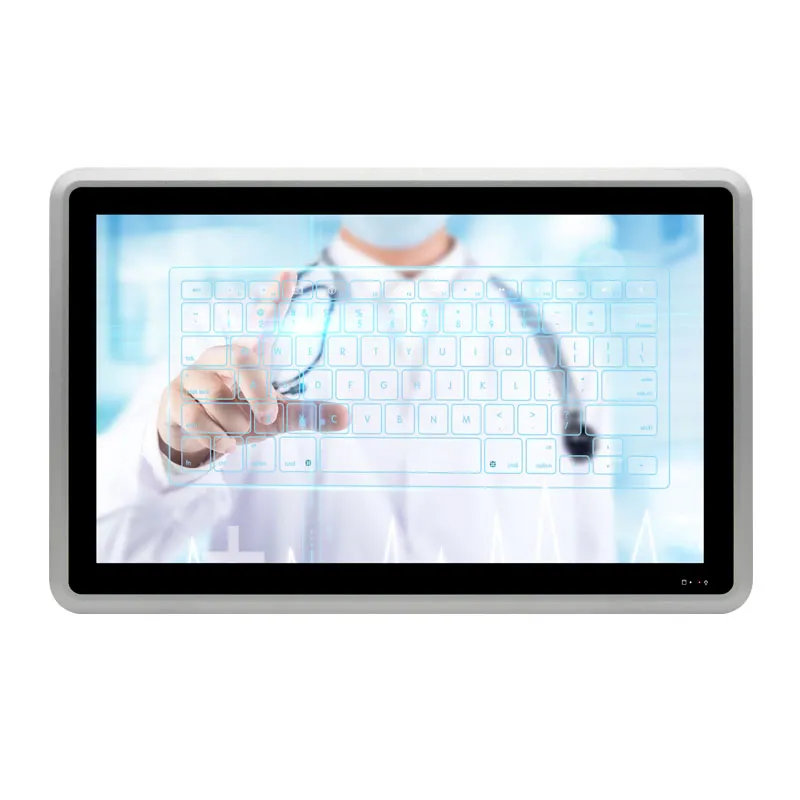

15.6 inch Industrial Touch Panel 1920*1080 16:9 Wide Screen

COD: DS30030
Dimensioni:

Risoluzione:

Interfaccia:

, , , ,

CPU

Intel® Celeron J6412/2.00GHz

Supporto per touchscreen:

15.6 inch Industrial Touch Panel, 1920*1080, capacitive touch screen,  Intel® Celeron J6412/2.00GHz quad-core quad-thread processor, Support VESA installation/embedded panel installation.

Richiesta di prezzi a volume







    Descrizione

    15.6 inch Industrial Touch Panel main features:

    • 15.6 inch widescreen LCD, 1920*1080, capacitive touch screen
    • 1*HDMI
    • 2*intel I210 Gigabit network card
    • 6*porte seriali RS232, COM1~2 porte seriali RS232 DB9, COM2 supporta RS485/422, COM3~6 RS232 su terminale Phoenix 2*15P, COM3 supporta RS485
    • GPIO a 4 ingressi e 4 uscite, 4*USB3.0, 2*USB2.0
    • Ingresso di tensione ampio 9~36V
    • Materiale in lega di alluminio, struttura di dissipazione del calore senza ventole

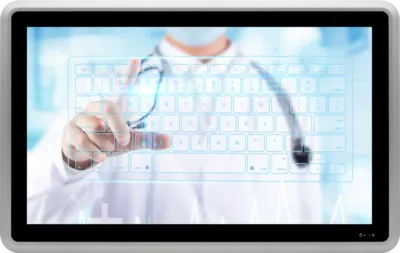

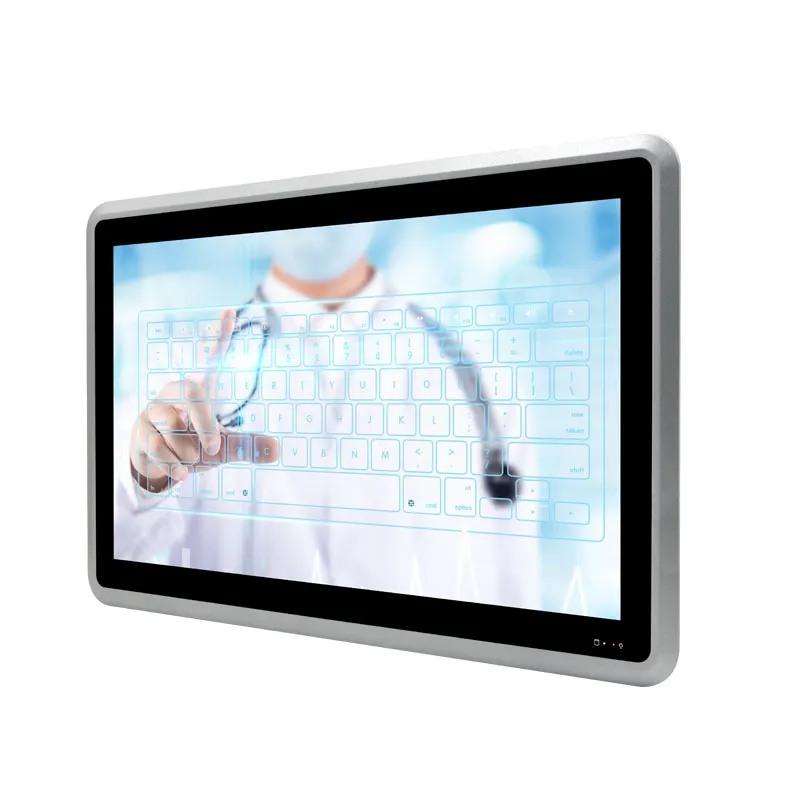

    15.6 inch Industrial Touch Panel



    15.6 inch Industrial Touch Panel

    Telaio Materiale/Struttura Materiale in lega di alluminio, struttura di dissipazione del calore senza ventole
    Colore Bright Silver
    Dimensioni (L*L*H) L400*W253*H62mm
    Peso netto 3.2KG

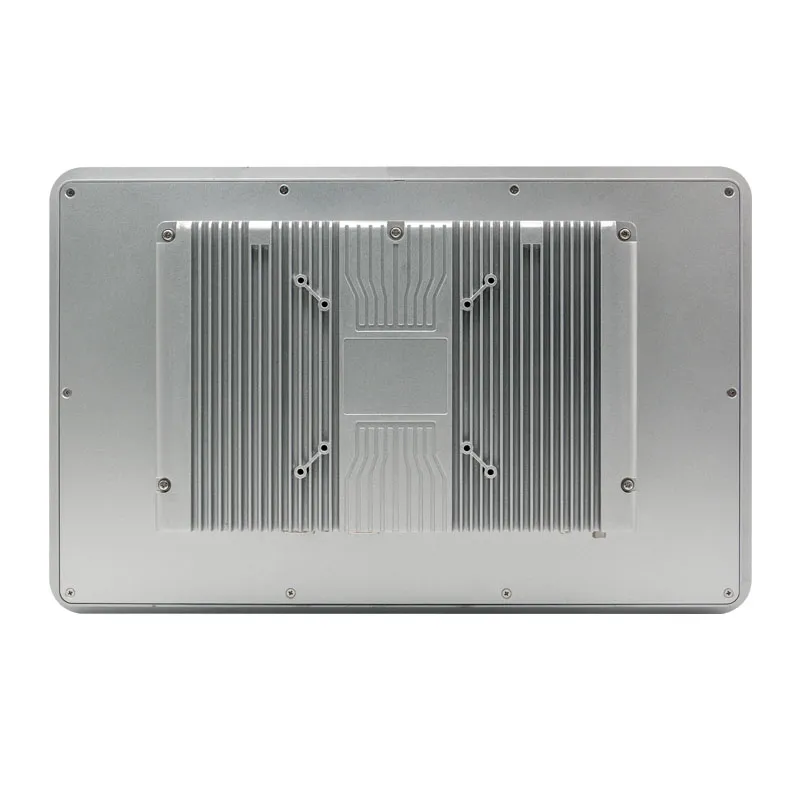

    Installazione Supporto dell'installazione di pannelli VESA/incorporati
    Display LCD Tipo 15.6 inch Full HD widescreen
    Risoluzione 1920 * 1080
    Luminosità 300 cd/m2
    Schermo tattile Tipo Capacitive screen, 10 point touch
    Trasmittanza ≥85%

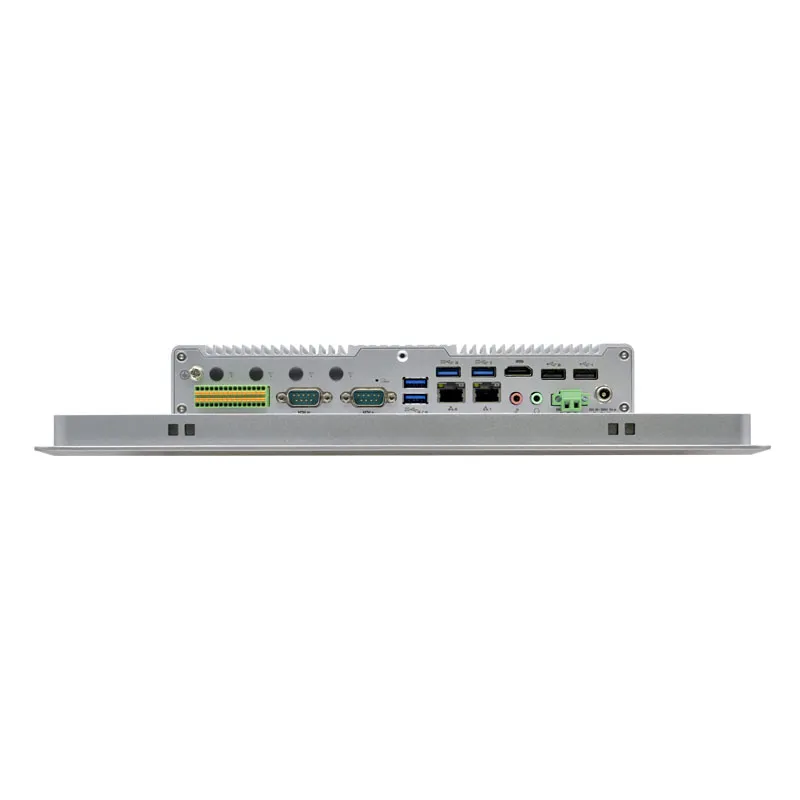

    Interfaccia IO POTENZA 1*power button, 1*one-key restore, 1*ACLOSS (power-on dial switch),1*CMOS reset button
    Interfaccia di visualizzazione 1*HDMI
    LAN 2*Scheda di rete Intel I210 Gigabit, supporto wake-up di rete, PXE
    USB 4*USB3.0,2*USB2.0
    COM Porta seriale 6*RS232, COM1 porta seriale RS232 DB9, COM2 porta seriale RS232/485/422 DB9, COM3-6 RS232 su terminale Phoenix 2*15P, COM3 supporta RS485, COM1-2 supporta la funzione live del 9° pin
    Terminale Phoenix 2*15P (4 in 4 out GPO/segnale interruttore di alimentazione/COM3~COM6/5V VCC/GND)
    Interruttore DIP 10-bit DIP switch, COM2~3 RS232/485 switching, COM2 RS422 is realized through COM2_SW1 jumper
    Audio 1*Line out,1*MIC
    Store Power 1*DC (5.5*2.5) aviation interface or 1*2P P=5.08mm Phoenix terminal, support 9V~36V input
    SATA 1*2.5-inch hard disk slot
    M.2 1*M.2/SSD, support Key-M, 2280, NVME PCIEx4 SSD
    Extend MSATA 1*MSATA
    M.2 1*M.2/WiFi,Key-E,2230,support WiFi module
    1*M.2/5G,Key-B,2242/52,support 5G module
    Power Power type External power adapter
    Voltage input 9V~36V wide voltage
    Power output AC TO DC 60W or above
    Environment Operating temperature -10℃~50℃
    Storage temperature -20℃~70℃
    Relative humidity 5%-95% relative humidity, no condensation
    Operating vibration 0.5g rms/5-500HZ/random/operating

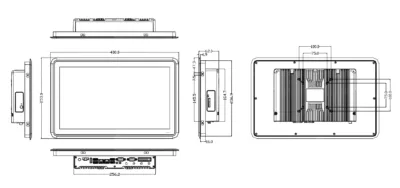

    Product Dimensions 15.6 inch Industrial Touch Panel

    15.6-Inch 1920 × 1080 Industrial Panel PC FAQ

    Will this panel PC fit my control cabinet without blocking I/O or ventilation?

    Use the 15.6-inch diagonal to shortlist panel PCs, then check the exact drawing for fit. Compare the cutout, bezel overlap, panel thickness, retention method and rear clearance. Fit the largest power and I/O connectors in the drawing before cutting the cabinet.

    Industrial touch monitor selection guide

    Can this panel PC run my application and connect to my equipment?

    Send us the application and OS versions, license needs, storage and memory requirements, and list of required ports. Ask us to confirm the exact computer configuration and test your peripherals on the sample.

    When should I choose an industrial panel PC over a separate computer and display?

    Try your operator screens and alarms on a 1920 × 1080 canvas before committing to the enclosure. Compare installation space, cooling, field replacement time, service access and how easily you can back up and restore the software. Use the actual operator workflow to compare both options.

    Can the panel PC be configured for my OS, storage, and I/O needs?

    Share your OS image, application, peripheral list, cabinet drawing and restart behavior. We can review the available processor, memory, storage, I/O and mounting configuration before sampling.

    What determines the cost and lead time for a configured panel PC?

    Include the proposed hardware and OS configuration, cabinet drawing, test checklist, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , , , ,

    CPU

    Intel® Celeron J6412/2.00GHz

    Supporto per touchscreen:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
