2 inch high brightness display Readable Panel

COD: DSZ0006
Dimensioni:

Risoluzione:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

600

Supporto per touchscreen:

Tipo di display:

2.0 inch high brightness display  240*320pixels  MCU/RGB Interface  40 pin FFC ZIF Connection  Customized touch screen

Richiesta di prezzi a volume







    Descrizione

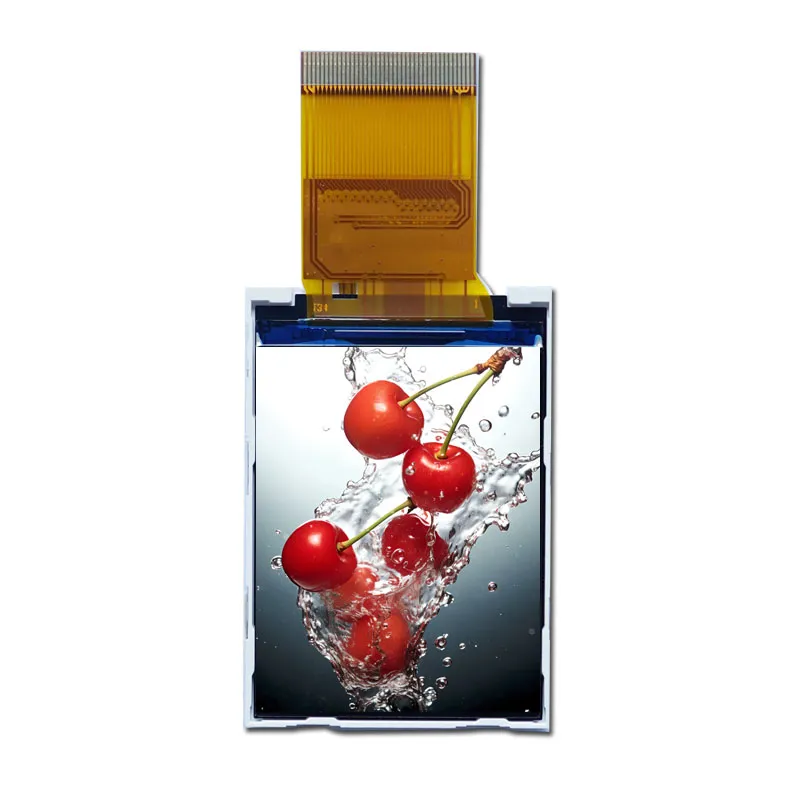

    2 inch high brightness display

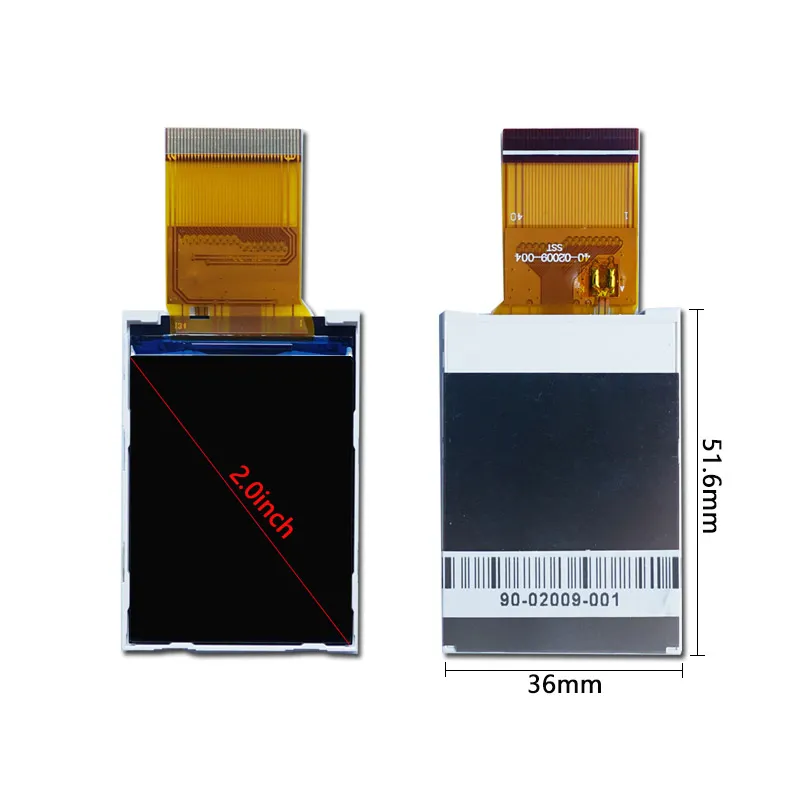

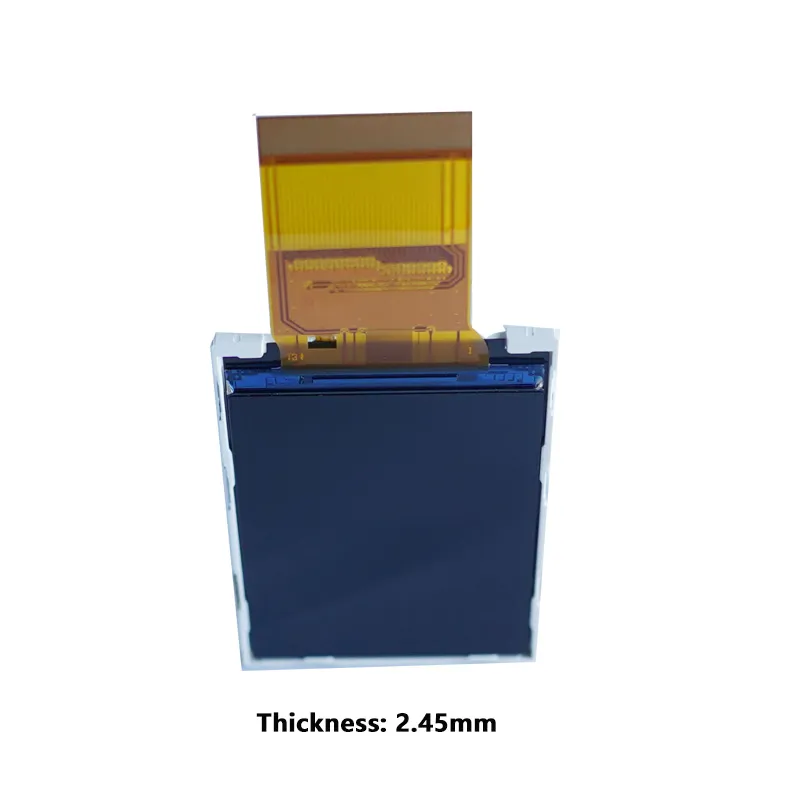

    This 2 inch high brightness display module features a resolution of 240 x 320 pixels, delivering sharp and vibrant visuals. With a viewing angle of 180° in all directions, it ensures consistent image quality from various perspectives. The active area measures 30.6 mm x 40.8 mm, while the overall dimensions are 36 mm x 51.6 mm x 2.45 mm, making it an excellent choice for a variety of compact applications. For instance:

    Wearable Devices: Perfect for smartwatches and fitness trackers where space is limited.
    Embedded Systems: Suitable for portable electronic devices that require reliable visual output.
    Consumer Electronics: A great choice for small gadgets and devices needing effective displays.



    2.0 inch RGB LCD Display with 40-pin FFC ZIF Connection

    Interface Compatibility: The 2 inch high brightness display incorporates a 40-pin FFC ZIF (Flexible Flat Cable, Zero Insertion Force) connection, facilitating a secure and reliable electrical connection. This interface not only simplifies integration with various micro controllers but also enhances data transfer efficiency. The ZIF connection ensures easy installation and reduces the risk of damage during setup, allowing for quick and hassle-free connections. Additionally, the MCU / RGB interface enables fast communication, ensuring smooth data transfer and real-time updates for an enhanced user experience.

    2.0" TFT-LCD Product Specifications

    Numero di modello  90-02009-001
    Dimensione  2.0
    Risoluzione 240*320
    Dimensione del contorno 36*51.6*2.45
    Area attiva 30.6*40.8
    Luminosità (cd/m²) 600
    Interfaccia MCU/RGB
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen  Senza
    Rapporto di contrasto 800:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    2.0" TFT LCD Soluzioni personalizzate

    Ottimizzate le vostre soluzioni via cavo

    Adjust the length, position, and pin out of your cables, or add additional connectors to enhance functionality. Get a customized cable solution designed to streamline your connections and ensure secure, reliable performance.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    2-Inch 240 × 320 RGB LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 2-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 240 × 320 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 600 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    600

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
