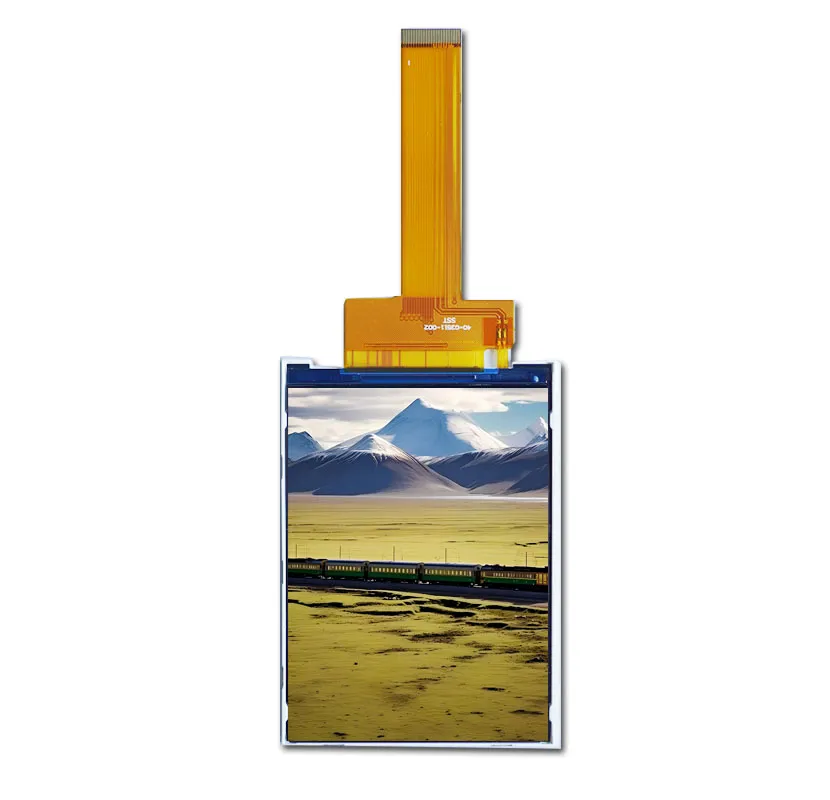

3.5 inch IPS 320*480 MCU TFT Color Display

COD: DS20024
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

Tipo di display:

3.5 inch TFT color display  320*480 Pixels  Serial MCU Interface  ST7701 drive IC  Customized touch screen  20000 LED Lifetime

Richiesta di prezzi a volume







    Descrizione

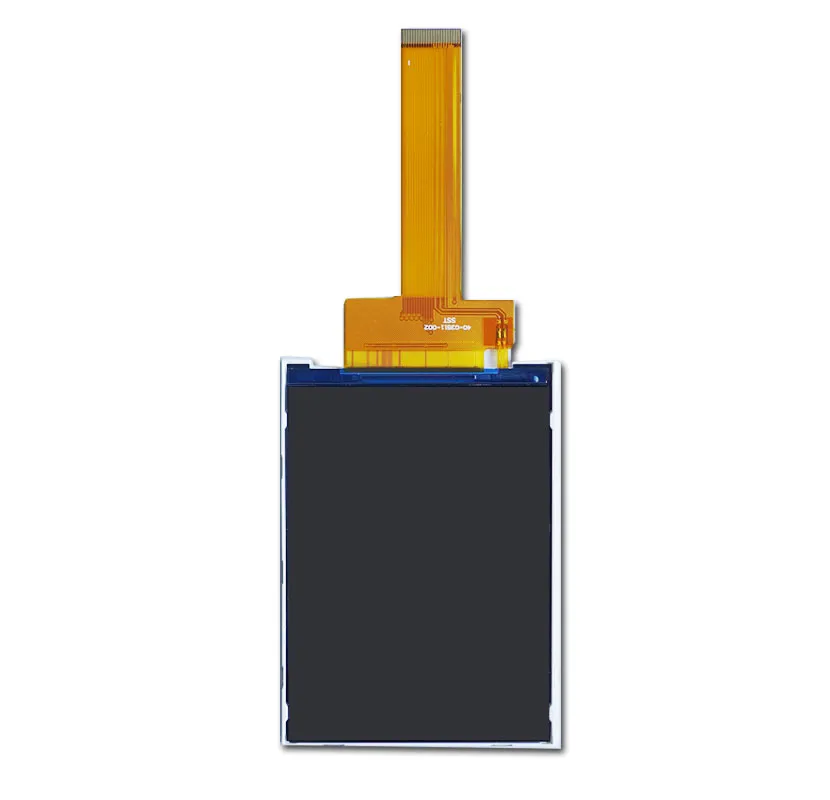

    3.5 inch TFT Color Display

    The 3.5 inch TFT Color Display features a resolution of 320x480 pixels, making it suitable for a variety of applications that require compact, high-quality displays. With an active area of 48.96×73.44mm and overall dimensions of 54.46×82.99×2.15mm, it enables easy integration into diverse device designs. With a wide viewing angle of 80° in all directions, the display ensures consistent image quality and color accuracy. It features 500 cd/m² brightness for excellent indoor/outdoor visibility and a 20,000-hour LED backlight lifetime. With a high 1000:1 contrast ratio for enhanced clarity and vibrancy, the module operates at -20°C to 70°C and stores at -30°C to 80°C. Finally, it features a 24-pin MCU interface, allowing for seamless integration with modern microcontrollers for efficient data transfer and communication.



    3.5" TFT Display with wide viewing angle

    The 3.5-inch TFT color display features a wide viewing angle, enabling views from various angles to enhance the user experience.
    This is particularly beneficial in collaborative environments like meetings or presentations, where multiple users can simultaneously view the screen. This feature makes the display suitable for a range of applications, including consumer electronics such as smartphones and tablets, automotive displays for easy readability by both drivers and passengers, and medical devices that enable healthcare professionals to access critical data from different positions. Additionally, the wide viewing angle helps reduce glare and reflections, improving visibility in varying lighting conditions and ensuring a clearer viewing experience.

    3.5 inch TFT Color Display Product Specifications

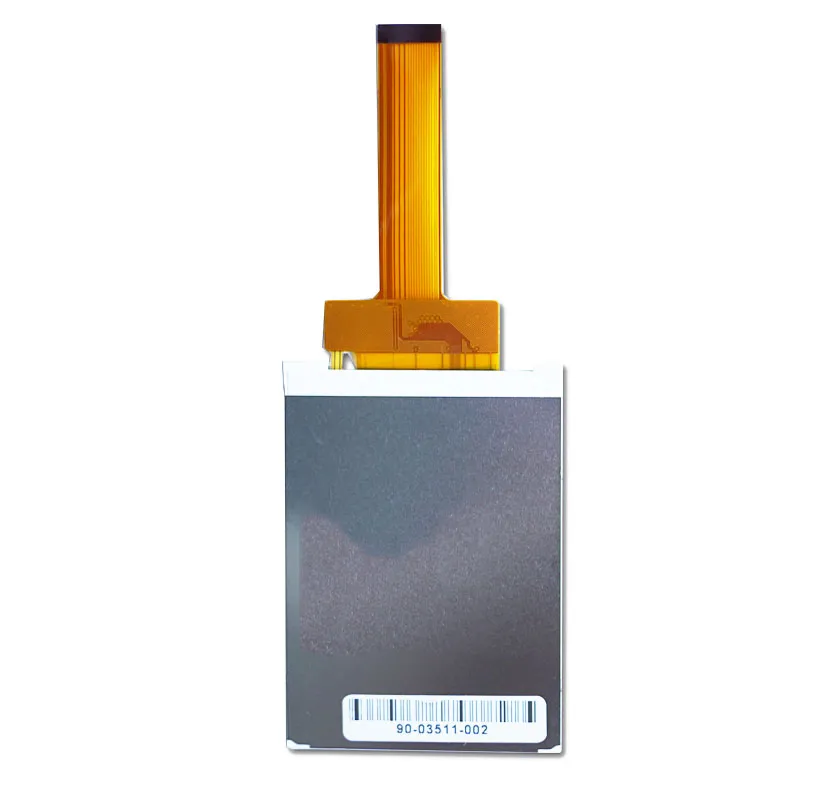

    Numero di modello  90-03511-002
    Dimensione  3.5
    Risoluzione 320*480

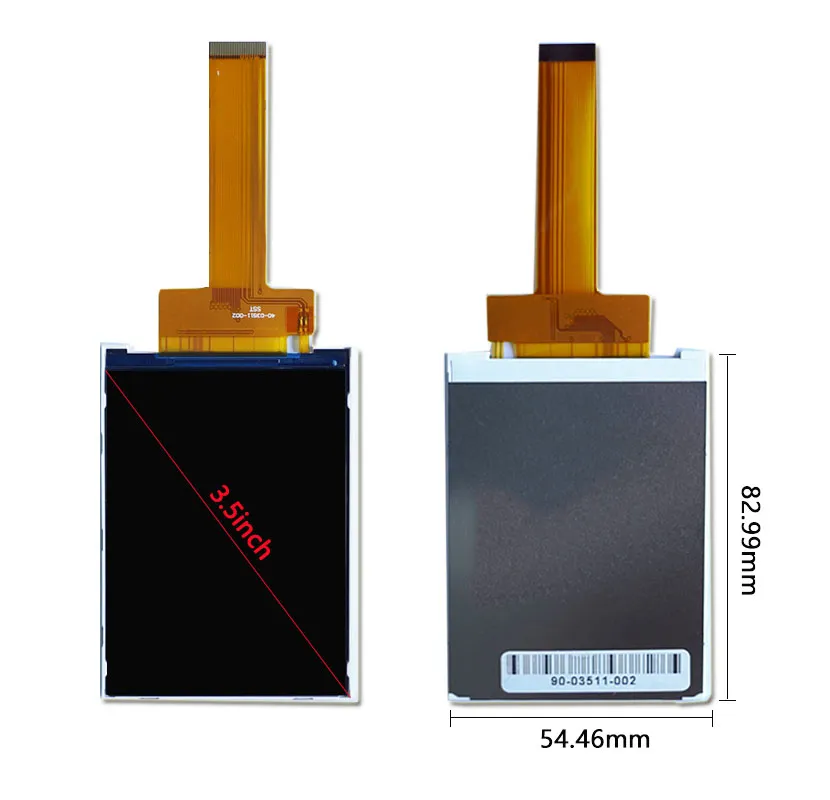

    Dimensione del contorno 54.46*82.99*2.15
    Area attiva 48.96*73.44
    Luminosità (cd/m²) 500
    Interfaccia MCU
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Witout
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    3.5" TFT LCD Soluzioni personalizzate

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    3.5-Inch 320 × 480 TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MCU interface, match the exact bus mode, pin assignments, logic levels and display controller commands. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 500 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
