2.4 inch Amoled Display 450x600 Rigid Amoled

COD: DS10018
Dimensioni:

Risoluzione:

Interfaccia:

, ,

Temperatura di esercizio:

-20℃~80℃

Luminosità (cd/m²):

800

Supporto per touchscreen:

Tipo di display:

Resources:

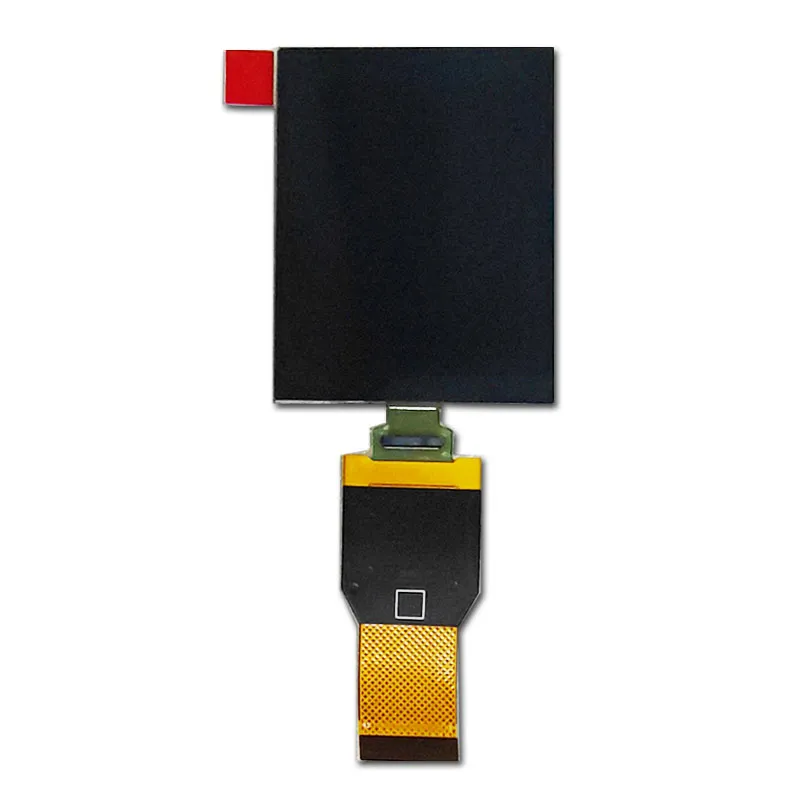

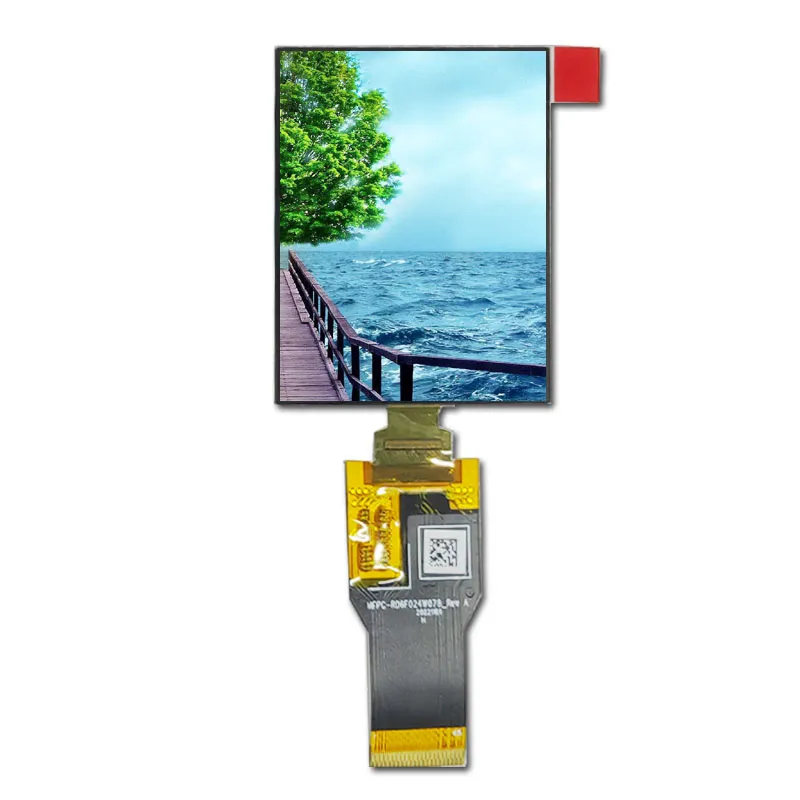

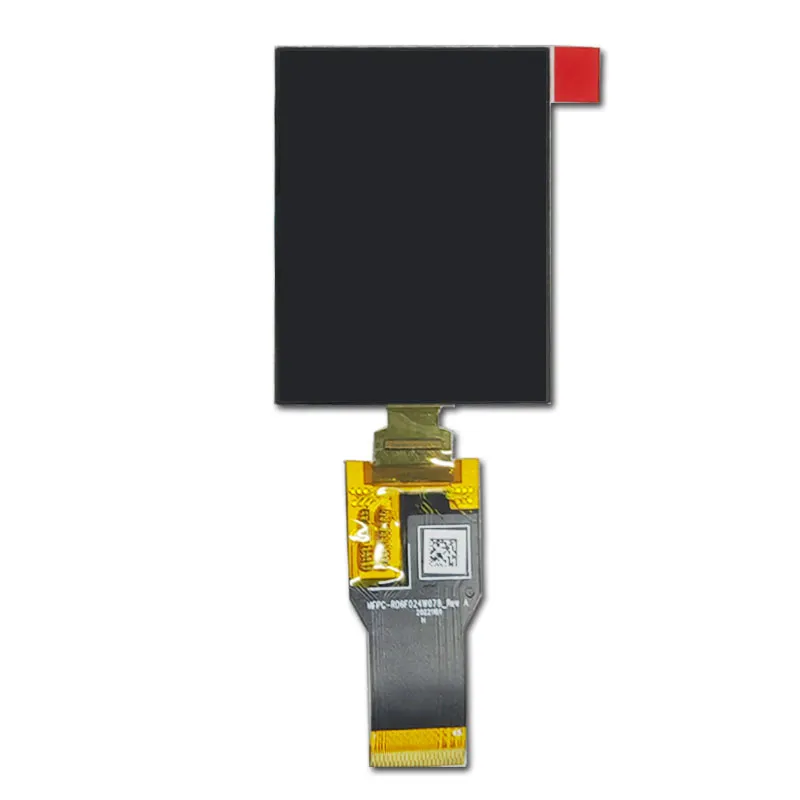

2.4 inch Amoled Display  Resolution 450*600  Rigid Amoled display  MIPI&MCU&SPI Interface  Smart Home Appliance

Richiesta di prezzi a volume







    Descrizione

    2.4" Amoled Displays Features

    The Rigid AMOLED Display features compact physical dimensions of 51.56mm (W) × 38.72mm (H) × 0.78mm (D), making it slim and easily integrable into various devices while being designed for lightweight portability. Known for its vibrant colors, high contrast ratios, and energy efficiency, this display supports flexible integration through MIPI, MCU, and SPI interfaces. With a pixel density of 311 PPI, it delivers sharp images and text, enhancing the user experience. Additionally, it offers visibility from all viewing angles and boasts a typical luminance of 800 cd/m², ensuring excellent readability even in bright lighting conditions.



    2.4" Amoled Display Application

    The 2.4 inch AMOLED display module is versatile and suitable for various applications, including consumer electronics like smartphones and wearables, where screen quality and size are essential for devices such as smartwatches and fitness trackers. It is also ideal for industrial devices, being effective in control panels that require compact, high-resolution displays for monitoring and control. In the medical field, this display is perfect for portable medical devices that need high visibility and clarity for patient information and diagnostics. Additionally, it serves well in automotive applications, fitting into dashboards and infotainment systems where high display quality is necessary despite space limitations.

    2.4" Amoled Display Product Specifications

    Dimensione LCD (pollici) 2.4(Diagonal)
    Numero di pixel 450(h)*600(v)
    Pixel Pitch(um) 81.6
    Dimensione del contorno 51.56(W) × 38.72(H) ×0.78(D)
    Area attiva 36.72(H) ×48.96(V)
    Tipo di display Rigid AMOLED
    Interfaccia MI PI&MCU&SPI
    Pixel Per inch(ppi) 311
    Rapporto di contrasto 100000
    Operation Temperature -20~80
    Luminance 800 (TYP.)
    Driver IC RM690B0
    - -
    - -
    - -

    2.4" Amoled Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    2.4-Inch 450 × 600 SPI AMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 2.4-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 450 × 600 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed SPI interface, check the exact controller, SPI mode, logic levels and update time with a representative screen. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed AMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Use the listed 800 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , ,

    Temperatura di esercizio:

    -20℃~80℃

    Luminosità (cd/m²):

    800

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
