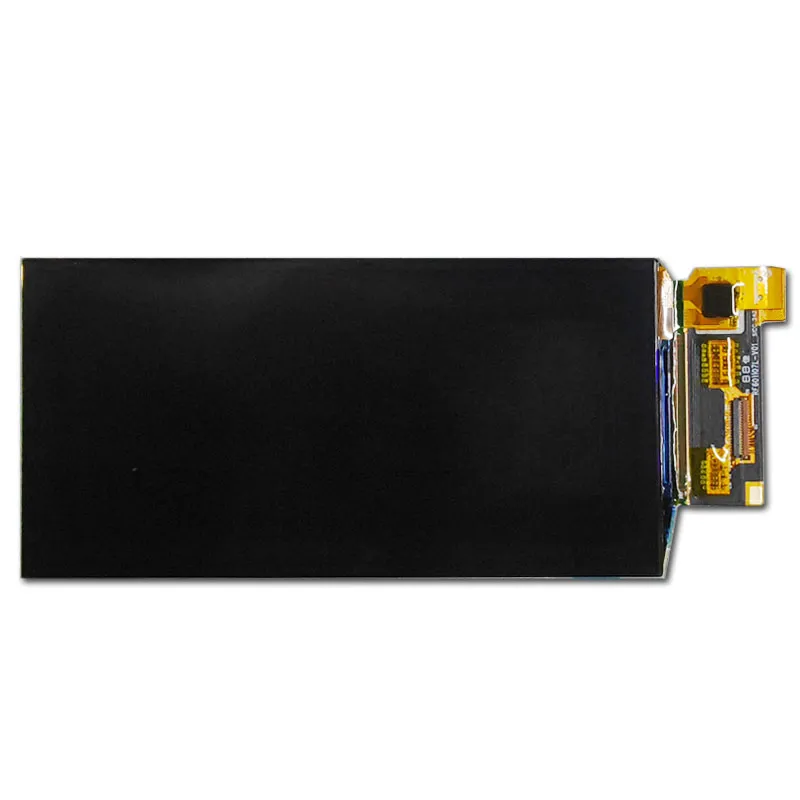

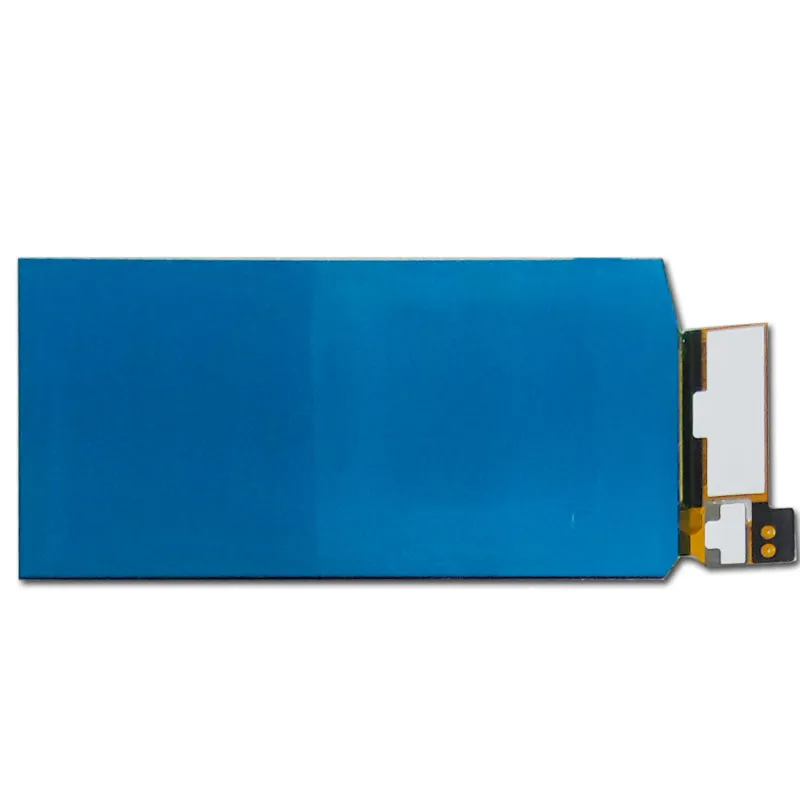

6.01 inch 1080x2160 Oled Module with Touch Screen

COD: DS10024
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

500

Supporto per touchscreen:

Tipo di display:

Resources:

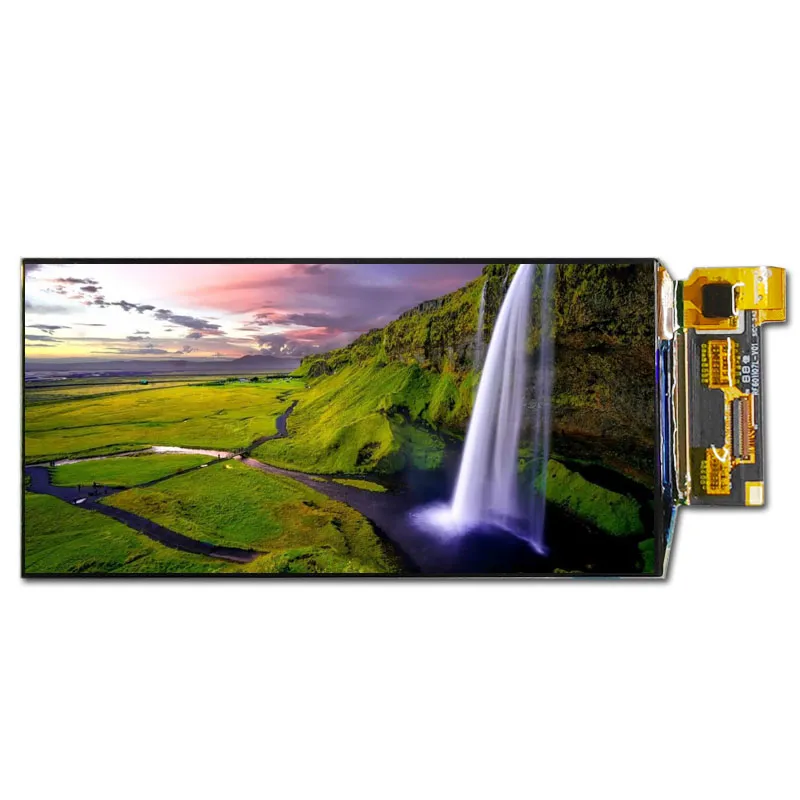

6.01 inch Oled Display with Touch Screen  Offering Resolution 1080*2160  With Oncell Capacitive Touch  MIPI 4 LANE Interface Smart Home Appliance

Richiesta di prezzi a volume







    Descrizione

    6.01" Amoled Displays Features

    The 6.01 inch OLED display features a touch screen, providing a larger viewing area suitable for various applications. It utilizes AMOLED technology, known for its vibrant colors, high contrast ratios, and deep blacks. The display employs Active Matrix TFT technology for efficient pixel control, ensuring high-quality visuals. With a resolution of 1080 x 2160 pixels, it delivers sharp and detailed images, ideal for high-definition content. We use the CH13721C driver IC to drive the display, optimize it for AMOLED displays, and equip it with the FT3519 touch IC for accurate and responsive touch inputs. Additionally, it supports a frame rate of 60Hz, providing smooth motion and transitions in displayed content.



    6.01" Amoled Display Application

    This Oled touch display is well-suited for automotive applications, including dashboard and infotainment systems, where high-quality visuals are essential for navigation, entertainment, and information systems. It can also be integrated into industrial devices, functioning effectively in control panels and interfaces to provide clear visuals and touch interaction for monitoring and control tasks. Additionally, the display is ideal for embedded systems and various custom electronics projects that require a high-quality display with interactive features, making it a versatile choice for a range of applications.

    6.01" Amoled Display Product Specifications

    Dimensione LCD (pollici) 6.01(Diagonal)
    Numero di pixel 1080(h)*2160(v)
    Pixel Pitch(um) 63.2(H)X63.2(V)
    Dimensione del contorno 70.066(W) ×142.297(H) ×1.08(D)
    Area attiva 68.256(H) ×136.512(V)
    Technology  Type LTPS
    Interfaccia MI PI 4 Line
    View direction ALL
    Drive IC CH13721C
    Touch IC FT3519
    TP -20℃~70℃
    Frame Rate 60(HZ)
    Profondità del colore 16.7M
    - -
    - -

    6.01" Amoled Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    6.01-Inch 1080 × 2160 MIPI Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 6.01-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 1080 × 2160 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    500

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
