3.5 inch TFT LCD Screen 320*480 RGB ST7701

COD: DSZ0020
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

350

Supporto per touchscreen:

Tipo di display:

3.5 inch tft lcd screen  320*480 Pixels  Serial RGB Interface  ST7701 drive IC  Customized touch screen

Richiesta di prezzi a volume







    Descrizione

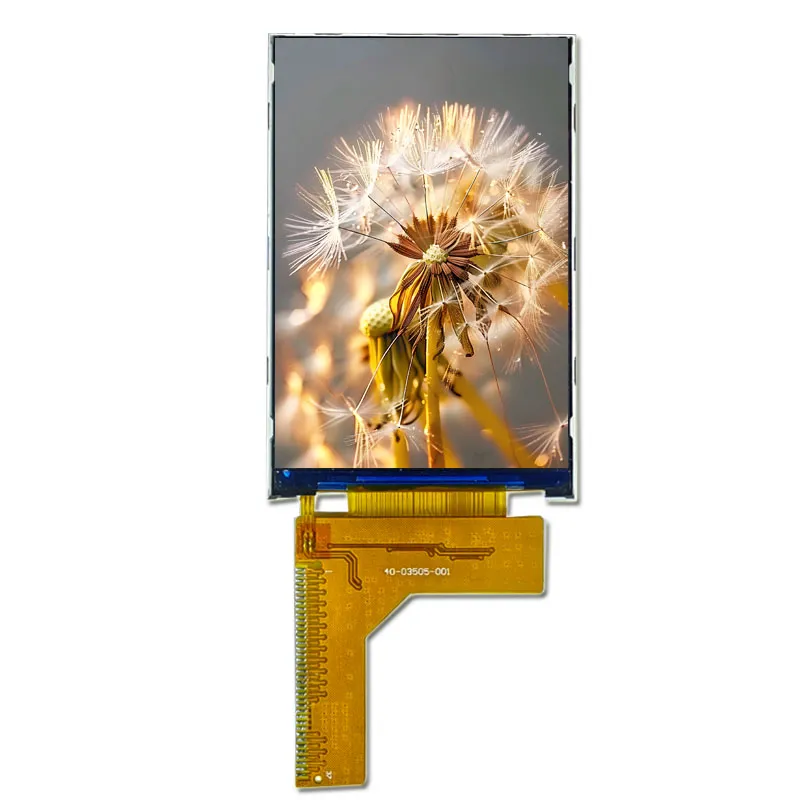

    3.5 inch TFT LCD Screen

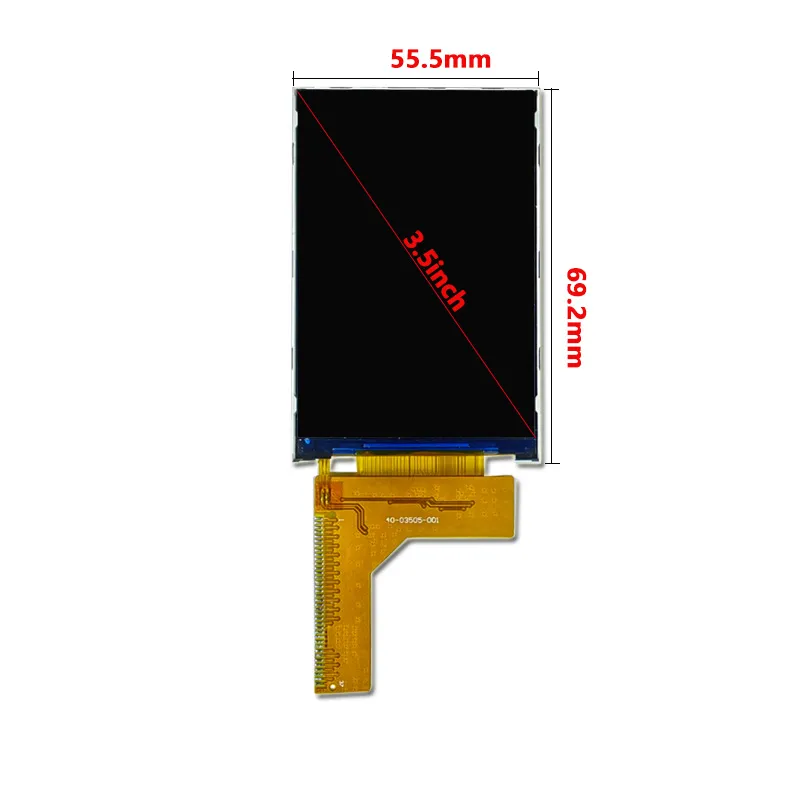

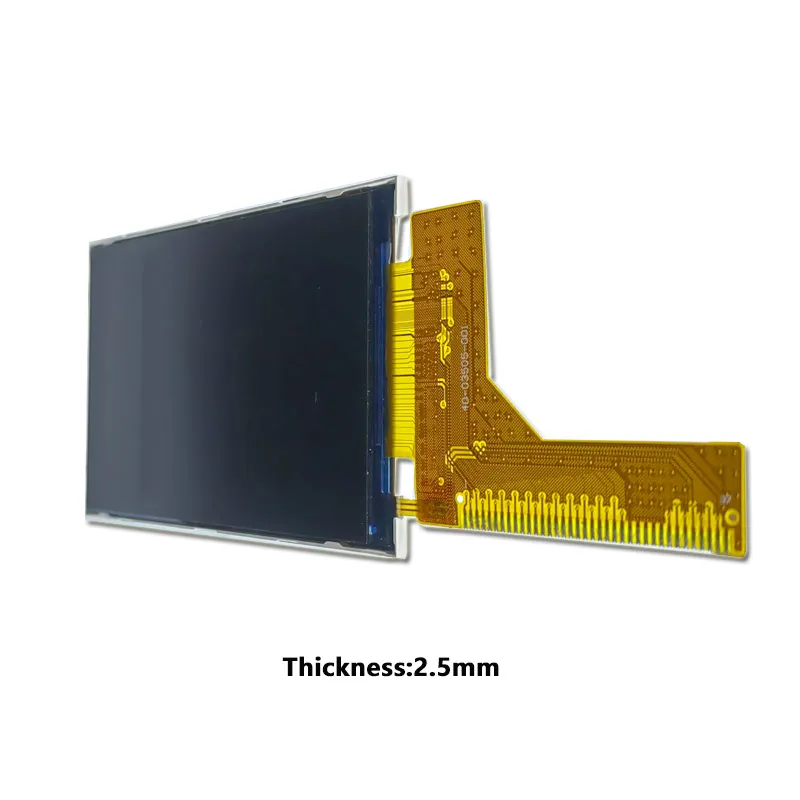

    3.5 inch TFT LCD Screen delivers high-quality visuals with a resolution of 320x480 pixels, It features an active area of 48.96mm x 73.44mm and overall dimensions of 54.5mm x 83mm x 2.15mm, facilitating easy integration into various device designs. With a brightness level of 350 cd/m², it provides good visibility in different lighting conditions, while the LED backlight has a lifetime of 20,000 hours for reliable use. The high contrast ratio of 1000 enhances content clarity, and the module operates within a temperature range of -20°C to 70°C, with storage capabilities from -30°C to 80°C. Utilizing an RGB interface with a 50-pin connection, this display allows for seamless integration with modern microcontrollers and processors.

    High Contrast Ratio TFT Display

    The 1000:1 contrast ratio of the display module enhances visual clarity by ensuring that the brightest white is 1000 times brighter than the darkest black, which results in sharper and more detailed images, making text and graphics easier to read. This high contrast also improves color depth, allowing the display to reproduce a wider range of colors accurately, which is particularly beneficial for applications requiring precise color matching, such as graphic design and photography. Additionally, the higher contrast ratio enables better performance in varied lighting conditions, ensuring that content remains visible in both bright sunlight and dimly lit environments.

    3.5" TFT-LCD Product Specifications

    Numero di modello  90-03505-001
    Dimensione  3.5
    Risoluzione 320*480
    Dimensione del contorno STN (+) Gray
    Area attiva 48.96*73.44
    Luminosità (cd/m²) 350
    Interfaccia RGB
    Visualizza la direzione ALL
    Temperatura di esercizio -20~70
    Temperatura di stoccaggio -30~80
    Durata del LED 20000
    Supporto per touchscreen Witout
    Rapporto di contrasto 1000:1
    Alimentazione 3.3V
    Tipo di display LCD a colori

    3.5" TFT LCD Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    3.5-Inch 320 × 480 RGB TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 3.5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Try your menus and text on a 320 × 480 canvas before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed RGB interface, match data width, pixel clock, sync polarities and blanking to the panel timing sheet. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Use the listed 350 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    350

    Supporto per touchscreen:

    Tipo di display:
