37.8 inch Digital Shelf Edge Display Android OS 2GB

COD: DS30045
Dimensioni:

Risoluzione:

Interfaccia:

, , , ,

Supporto per touchscreen:

abc

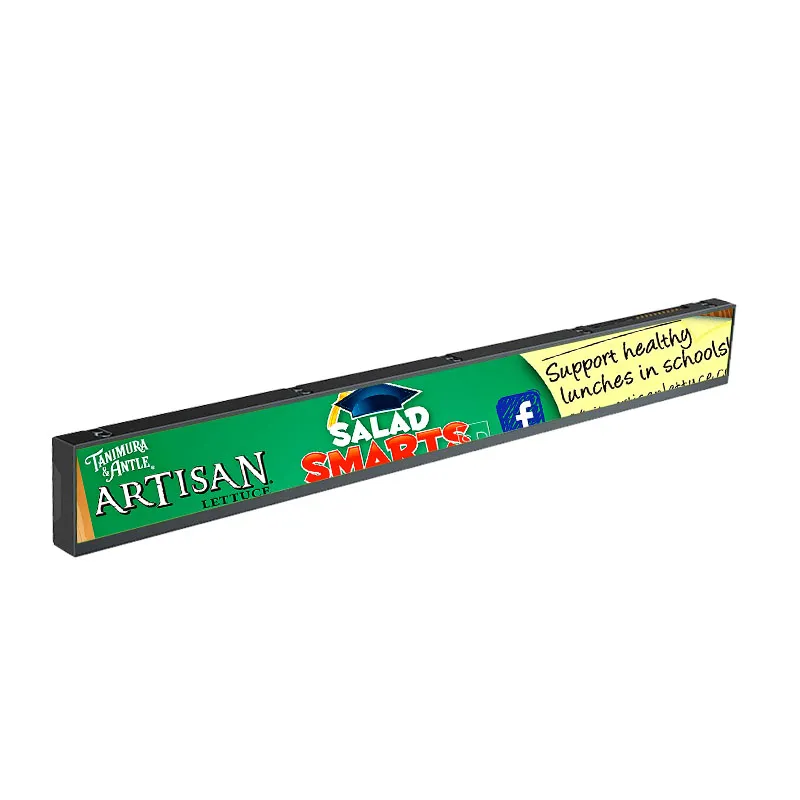

37.8 inch Digital Shelf Edge Display, Offering resolution 2880*158, High resolution digital signage,  Play in landscape or portrait mode, One monitor split screen

Richiesta di prezzi a volume







    Descrizione

    37.8 inch Digital Shelf Edge Display main features:

    • Horizontal and vertical playback, switch at will, suitable for different installation requirements, horizontal and vertical screen placement two display modes.
    • Intelligent split-screen playback, can play multiple pictures and videos at the same time, the split-screen area can be adjusted at will.
    • Smart shelves and shelf strip screens can be used for smart shelf solutions in the new retail environment. Through the remote platform, unified remote publishing and management of product electronic tags can be achieved. At the same time, product advertising content can be displayed to enhance visual performance and help promote products.

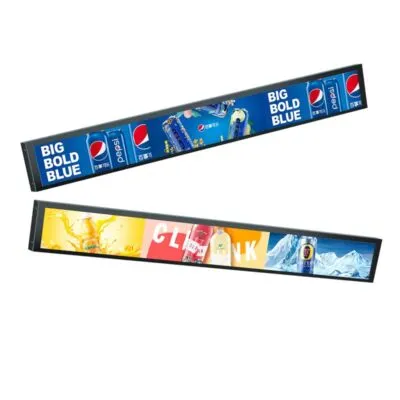

    37.8 inch High resolution digital signage



    37.8 inch Digital Shelf Edge Specification
    Display Dimensioni dello schermo 37.8 inch
    Area attiva 959(H)X52.6(V)
    Outline 979*72.6*21
    Screen Type a-Si TFT-LCD
    Pixel Number 2880*158
    Aspect Ratio 16:1
    Luminance 400 cd/m2
    Rapporto di contrasto 1000:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Profondità del colore 1.07B   68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.333×0.333 (H×V)
    Mainboard CPU T972
    Ram 2G(Optional)
    Flash 16G(Optional)
    O/S 9.0
    Interfaccia USB*2/DC IN
    Machine Appearance and Structure Sheet Metal
    Colore Black(optional)
    Peripheral
    Power supply DC12V 2A
    Power consumption ≦20W
    Temperatura di esercizio 0℃~50℃
    Temperatura di stoccaggio -20℃~60℃
    Corton size
    Installation method Wall hanging
    Peso netto 2Kg

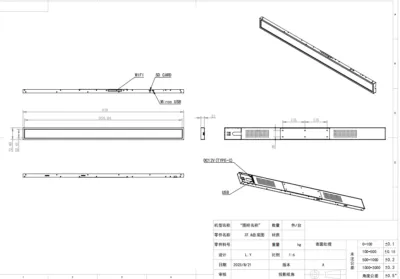

    Product Dimensions 37.8 inch lcd shelf display

    Scaricare

    37.8-Inch Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 37.8-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed USB interface, verify the port’s role, driver support and power needs on the exact configuration.

    How should I compare this monitor with another for my installation?

    Get the native pixel layout first, then try your typical desktop, menu or signage layout at that layout before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    , , , ,

    Supporto per touchscreen:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
