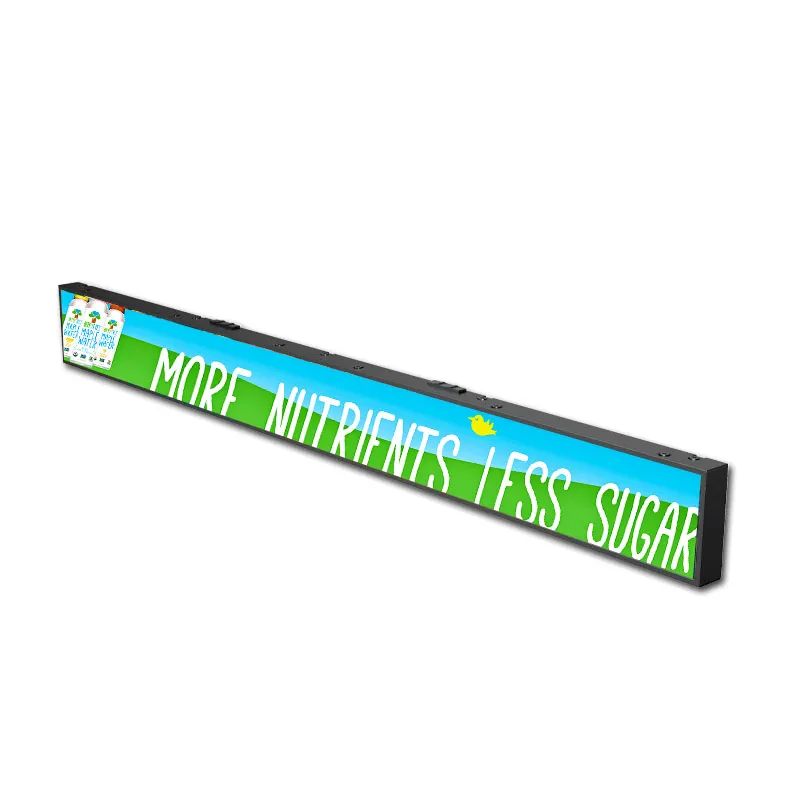

23.1 inch Shelf Strip Screen Android OS Interface USB/DC IN

COD: DS30048
Dimensioni:

Risoluzione:

Interfaccia:

,

Supporto per touchscreen:

abc

23.1 inch Shelf Strip Screen, Offering resolution 1920*158, Play in landscape or portrait mode, Featured IPS panel, One monitor split screen, Various sizes

Richiesta di prezzi a volume







    Descrizione

    23.1 inch Shelf Strip Screen main features:

    • Horizontal and vertical playback, switch at will, suitable for different installation requirements, horizontal and vertical screen placement two display modes.
    • Intelligent split-screen playback, can play multiple pictures and videos at the same time, the split-screen area can be adjusted at will.

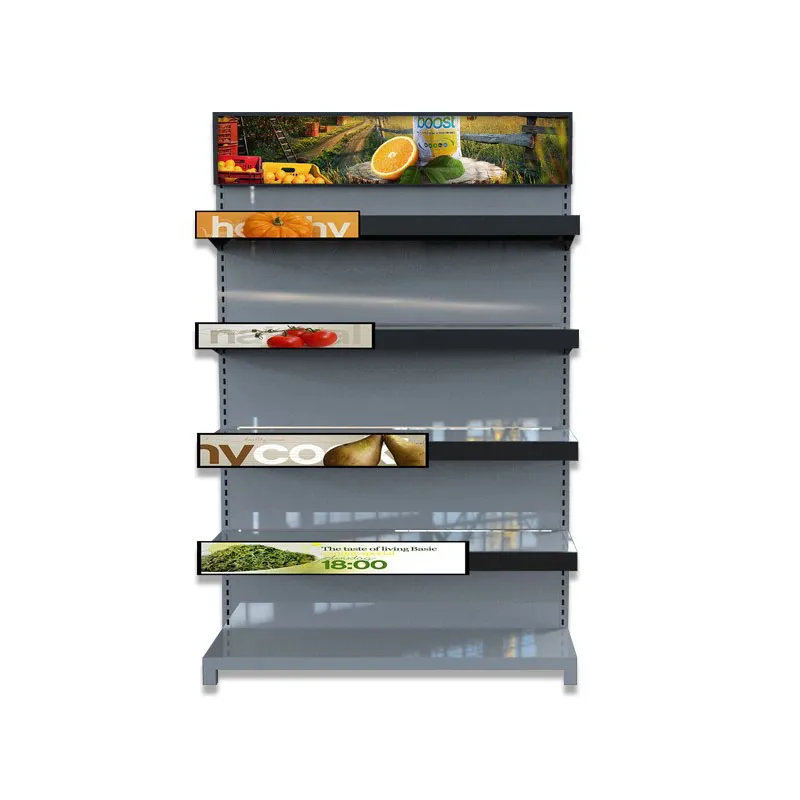

    • Smart shelves and shelf strip screens can be used for smart shelf solutions in the new retail environment. Through the remote platform, unified remote publishing and management of product electronic tags can be achieved. At the same time, product advertising content can be displayed to enhance visual performance and help promote products.

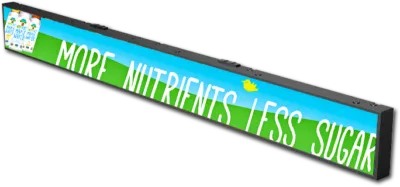

    23.1 Shelf strip screen



    23.1 inch Shelf Strip Screen specification
    Display Dimensioni dello schermo 23,1 pollici
    Area attiva 585.6(H)X48.19(V)
    Outline 597.4*60.4*15
    Screen Type a-Si TFT-LCD
    Pixel Number 1920*158
    Aspect Ratio 16:1
    Luminance 400 cd/m2
    Rapporto di contrasto 3000:1
    Viewing Angle 89/89/89/89 (Typ.)(CR≥10)
    Profondità del colore  16.7M    68% NTSC
    Response 8 (Typ.)(G to G) ms
    Pixel Pitch 0.305×0.305 mm
    Mainboard CPU RK PX30
    Ram 1G(optional)
    Flash 8G(optional)
    O/S 7.1
    Interfaccia USB/DC IN
    Machine Appearance and Structure Sheet Metal
    Colore Black(optional)
    Peripheral
    Power supply DC12V 2A
    Power consumption ≦15W
    Temperatura di esercizio 0℃~50℃
    Temperatura di stoccaggio -20℃~60℃
    Corton size
    Installation method Wall hanging
    Peso netto 1Kg

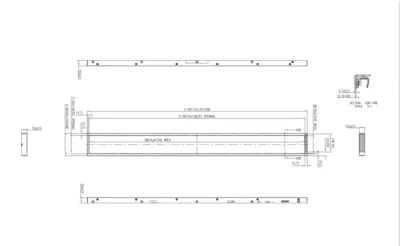

    Product Dimensions 23.1 inch shelf edge lcd display

    Scaricare

    23.1-Inch 1920 × 158 Monitor FAQ

    Will this monitor fit with the cables and controls accessible?

    Use the 23.1-inch diagonal to shortlist monitors, then check the exact drawing for fit. Compare the case depth, mount or stand, cable bend and access to the controls against your setup. Test the actual cable exit before approving a tight installation.

    Industrial touch monitor selection guide

    Can my computer, media player, or controller run this monitor?

    For the listed USB interface, verify the port’s role, driver support and power needs on the exact configuration.

    How should I compare this monitor with another for my installation?

    Try your typical desktop, menu or signage layout on a 1920 × 158 canvas before choosing a monitor. Compare readable text size at the intended distance, connector access and whether the installation needs a portable stand or fixed mounting. Compare the candidates with the same content, cover and lighting, then select against your minimum contrast and viewing-angle requirements.

    Can I specify the mount, ports, power adapter, or touch configuration?

    Share the enclosure or stand drawing, input sources, orientation and required ports. We can check available mounts, power and touch configurations and confirm which parts can be quoted together.

    What should I send for a monitor quote and sample schedule?

    Include the source ports and modes, mounting setup, accessories, quantities and required date. Ask for the hardware, accessories and any one-time setup itemized, with sample cost, production quantity breaks and separate delivery dates.
