5.9" AMOLED Display FHD+ 1080x2220, MIPI Interface, 400nits, -20°C~70°C

COD: DS10012
Dimensioni:

Risoluzione:

Interfaccia:

Temperatura di esercizio:

-20℃~70℃

Luminosità (cd/m²):

400

Supporto per touchscreen:

Tipo di display:

Resources:

Premium 5.9inch AMOLED Display with FHD+ 108x222 resolution, MIPI interface, 400nits brightness, 100,000:1 contrast, wide temperature range (-20°C~70°C), full viewing angle. Ideal for industrial and outdoor devices

Richiesta di prezzi a volume







    Descrizione

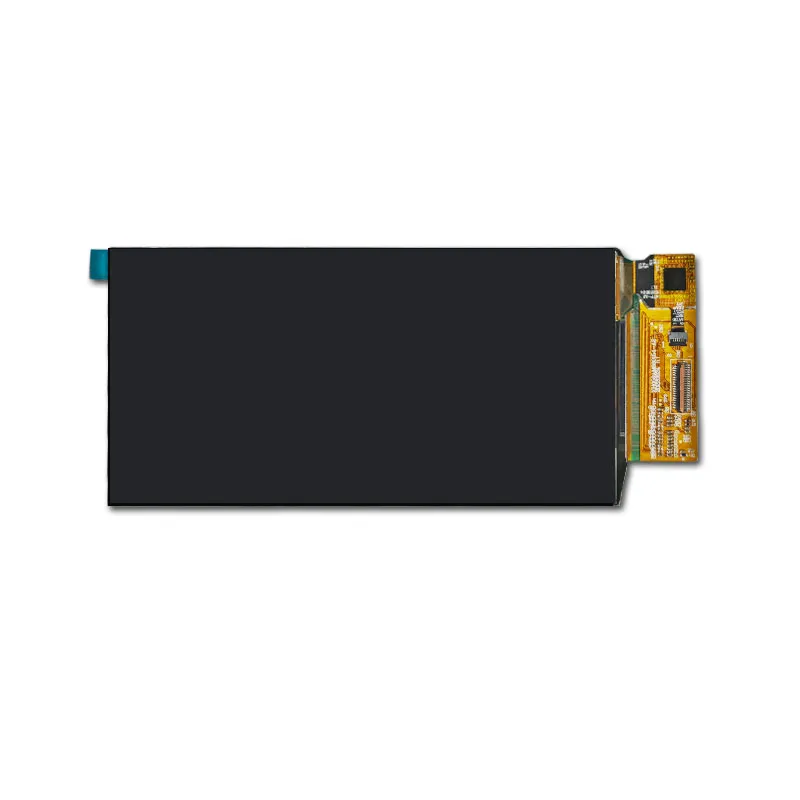

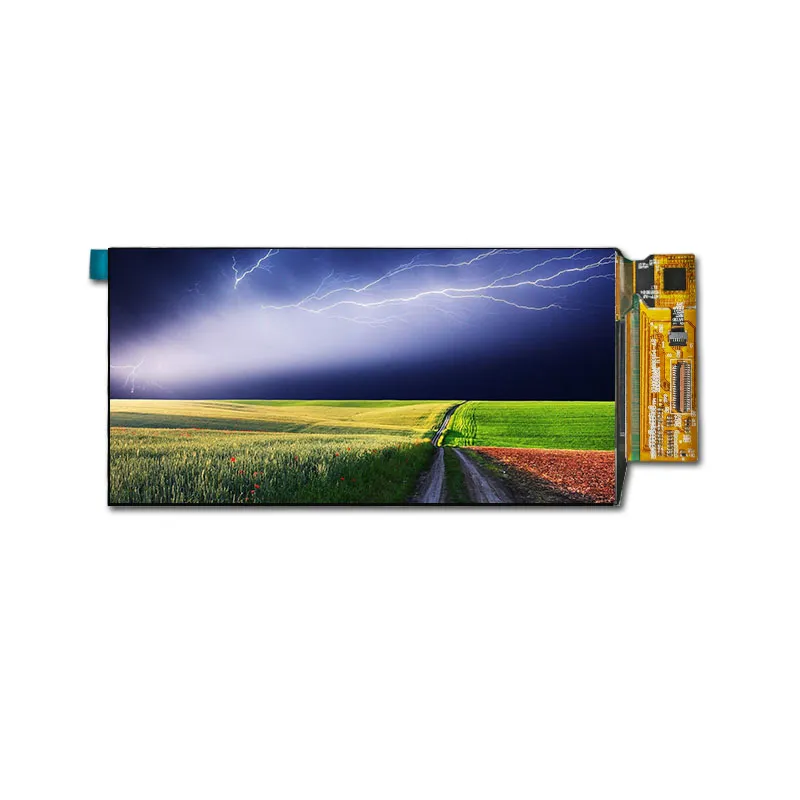

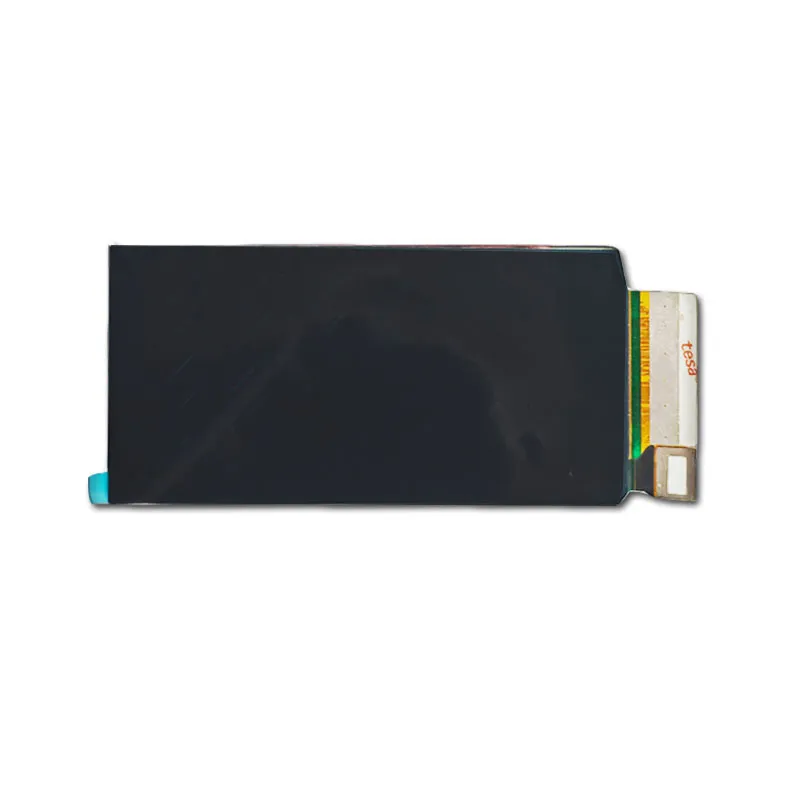

    5.9" Amoled Display

    5.9 inch AMOLED Display engineered for high-performance applications. Featuring a crisp FHD+ resolution (1080x2220), this screen delivers vibrant visuals with 100,000:1 contrast ratio and 400nits brightness for superior visibility even in direct sunlight.



    5.9" Amoled Display Key Features

    ✅ MIPI Interface: Ensures fast data transmission and seamless integration with modern devices.
    ✅ Wide Temperature Range: Operates reliably from -20°C to 70°C, perfect for industrial, automotive, and outdoor equipment.
    ✅ Full Viewing Angle: Consistent color accuracy and clarity from any perspective.
    ✅ Ultra-Thin & Energy-Efficient: AMOLED technology reduces power consumption while maintaining vivid colors.

    Applications:
    Ideal for rugged smartphones, handheld terminals, medical devices, and IoT solutions requiring durability and top-tier display performance.
    ✔️ High environmental adaptability
    ✔️ Factory-certified quality control
    ✔️ Customizable options (contact for OEM/ODM)

    5.9" Amoled Display Product Specifications

    Dimensione LCD (pollici) 5.9(Diagonal)
    Numero di pixel 1080*2220
    Pixel Pitch(um) 30.35*60.7
    Dimensioni di massima (mm) 67.716*140.654*0.84
    Area attiva (mm) 65.56*134.75
    Tipo di display AMOLED
    Interfaccia MI PI
    Visualizza la direzione ALL
    Power Supply(v) 3.3
    Luminance(cd/m²) 400
    Drive IC SH8801A
    - -
    - -
    - -
    - -

    5.9" Amoled Soluzioni personalizzate

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    5.9-Inch MIPI AMOLED Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5.9-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed MIPI interface, match the display lane count, lane mapping, operating mode and panel initialization sequence. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed AMOLED, compare dark-scene legibility and how your static icons look in an extended run at the intended brightness. Use the listed 400 cd/m² to shortlist the display, then judge the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Risoluzione:

    Interfaccia:

    Temperatura di esercizio:

    -20℃~70℃

    Luminosità (cd/m²):

    400

    Supporto per touchscreen:

    Tipo di display:

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
