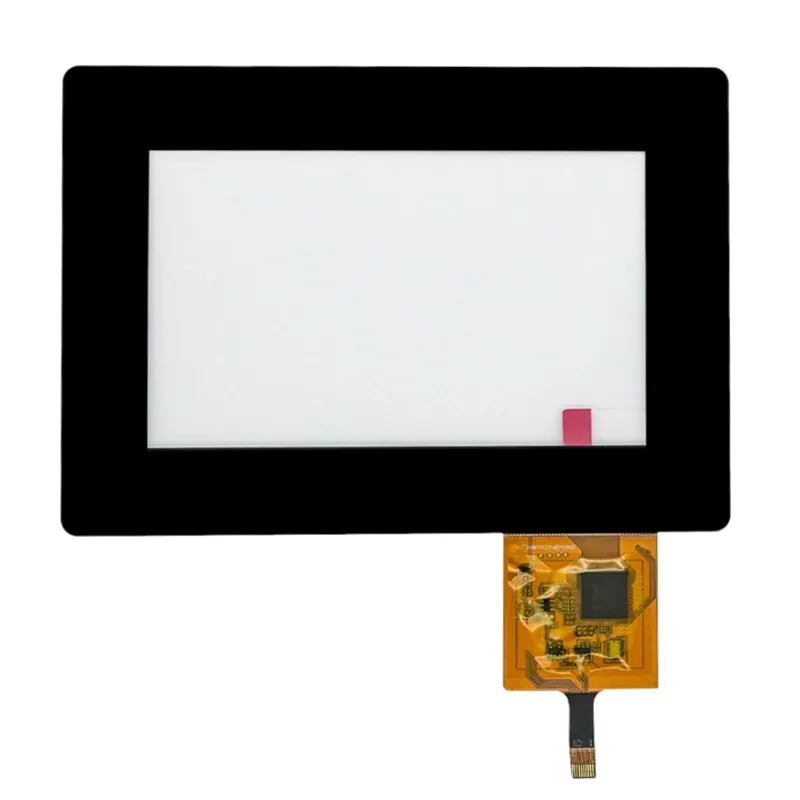

5 inch TFT Capacitive Touch Screen G+G IIC&USB Interface Multi Touch

COD: DS40026
Dimensioni:

Interfaccia:

,

Thickness

1.1 mm

Structure

G+G

Touch IC

ILITEK

5 inch TFT Capacitive Touch Screen  Aspect Ratio17:10  G+G Structure  IIC&USB interface  1.1 mm Cover Thickness  10 Touch point  ILITEK Touch IC  Industrial Capacitive Touch Screen

Richiesta di prezzi a volume







    Descrizione

    5 inch TFT Capacitive Touch Screen Key Features

    The 5 inch TFT Capacitive Touch Screen is designed for robust performance in various applications, featuring a 17:10 aspect ratio and a durable G+G (Glass + Glass) structure that enhances touch sensitivity and durability. With a cover thickness of just 1.1 mm, this industrial-grade touch screen is sleek yet resilient, making it suitable for a wide range of devices. It supports up to 10 touch points, enabling multi-touch functionality for interactive experiences. Utilizing an IIC & USB interface, it ensures seamless integration with various systems. Equipped with an ILITEK Touch IC, this touch screen delivers precise touch recognition and responsiveness, making it ideal for industrial automation, medical devices, and consumer electronics where reliable user interaction is essential.



    Independent Research and Development Design

    We offer advanced touch sensor and touch IC solutions with professional production capabilities, including G+G and G+F+ structures. Our industry-leading full lamination process supports multi-touch, waterproof touch, and glove touch functionalities, ensuring high stability and excellent resistance to interference. Our on-site production includes full lamination of PCAP and TFT displays, and we can customize product performance to meet ACE-Q100/IATF16949 standards when required. Additionally, we provide customized cover plate processing options, including anti-glare (AG), anti-reflective (AR), anti-fingerprint (AF), and anti-bacterial (AB) treatments. Committed to quality, our company strictly adheres to the ISO 9001 international quality management system, striving to produce high-standard, high-quality, and high-tech capacitive touch screens.

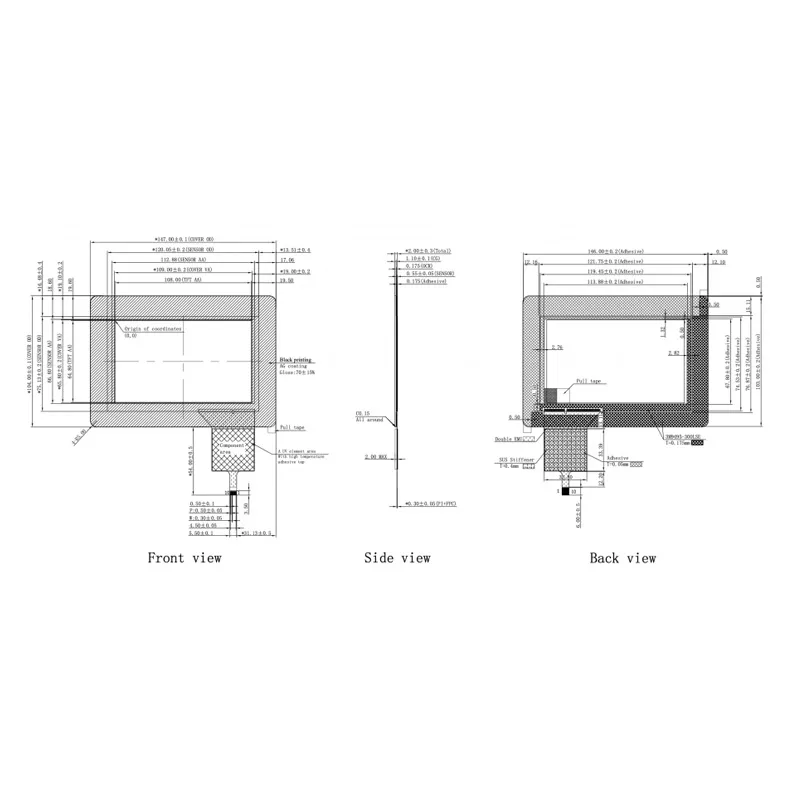

    5.0" Capacitive Touch Screen Product Specifications

    Size(inch) 5.0(Diagonal)
    Structure G+G
    Active Area (W*H)mm 109*65.8
    Dimensioni di massima (mm) 147*104
    Thickness(mm) 1.1
    Touch Point 10
    Interfaccia IIC+USB
    Touch IC ILITEK
    Temperatura di esercizio -20~70℃
    Temperatura di stoccaggio -30~80℃
    - -
    - -
    - -
    - -
    - -

    5.0" Touch Display Custom Solutions

    Ottimizzate le vostre soluzioni via cavo

    Regolate la lunghezza, la posizione e la piedinatura dei vostri cavi o aggiungete connettori supplementari per migliorare la funzionalità. Ottenete una soluzione di cavi personalizzata, progettata per semplificare le connessioni e garantire prestazioni sicure e affidabili.

    Personalizzazione dell'interfaccia LCD

    Scegliete tra una vasta gamma di opzioni di interfaccia o consultate i nostri esperti per trovare quella ideale per il vostro progetto. Possiamo integrare HDMI, USB, SPI, VGA e altro ancora nel vostro display, aiutandovi a raggiungere i vostri obiettivi di progettazione in modo efficiente.

    Elevare l'esperienza dell'utente con la tecnologia touch screen

    Migliorate la vostra esperienza utente con la tecnologia touch screen capacitiva o resistiva. Personalizzeremo lo spessore del vetro e la forma del pannello tattile per garantire un adattamento perfetto ai vostri requisiti di progettazione.

    custom touch

    Vetro di copertura personalizzato

    Equipaggiate il vostro display con un vetro di copertura tagliato su misura per aumentare la durata e le prestazioni. Scegliete tra vari spessori e optate per l'incollaggio ottico per proteggere il display da umidità e detriti, garantendo una soluzione affidabile e duratura.

    5-Inch I²C TFT LCD Display Module FAQ

    Will this display fit my enclosure and show the whole interface?

    Use the 5-inch diagonal to shortlist display modules, then check the exact drawing for fit. Overlay the visible area, module outline and flex exit on your enclosure drawing. Get the native pixel layout first, then try your menus and text at that layout before committing to the enclosure.

    What must my controller support to drive this display module?

    For the listed I²C interface, check the controller address, logic levels and bus pull-ups on the intended host. Before connecting it, check the power rails and reset sequence in the module documentation.

    How should I compare this display with a similar module for my device?

    For the listed LCD, compare viewing-angle shifts and dark-screen appearance through the front cover. Judge readability on the assembled product with its final cover and ambient lighting. Compare the cost and space of any changes to the cable, host board or front cover.

    Can I change the flex cable, add a cover, or integrate touch?

    Send us the mounting drawing, permitted flex exit, connector and cover or touch requirements. We can review which of those changes can be made around the existing display and which require a different module.

    What determines the cost and lead time of a custom display sample?

    Include your display outline, interface, target sample date and estimated annual volume. We can quote the proposed changes, any one-time tooling or engineering, sample price and production MOQ separately. Ask for distinct sample and production lead times on the quoted drawing revision.

    Soluzioni espositive personalizzate

    Informazioni aggiuntive

    Dimensioni:

    Interfaccia:

    ,

    Thickness

    1.1 mm

    Structure

    G+G

    Touch IC

    ILITEK

    Soluzioni espositive personalizzate

    Collaborate con i nostri esperti di progettazione per creare il display perfetto per la vostra applicazione.
